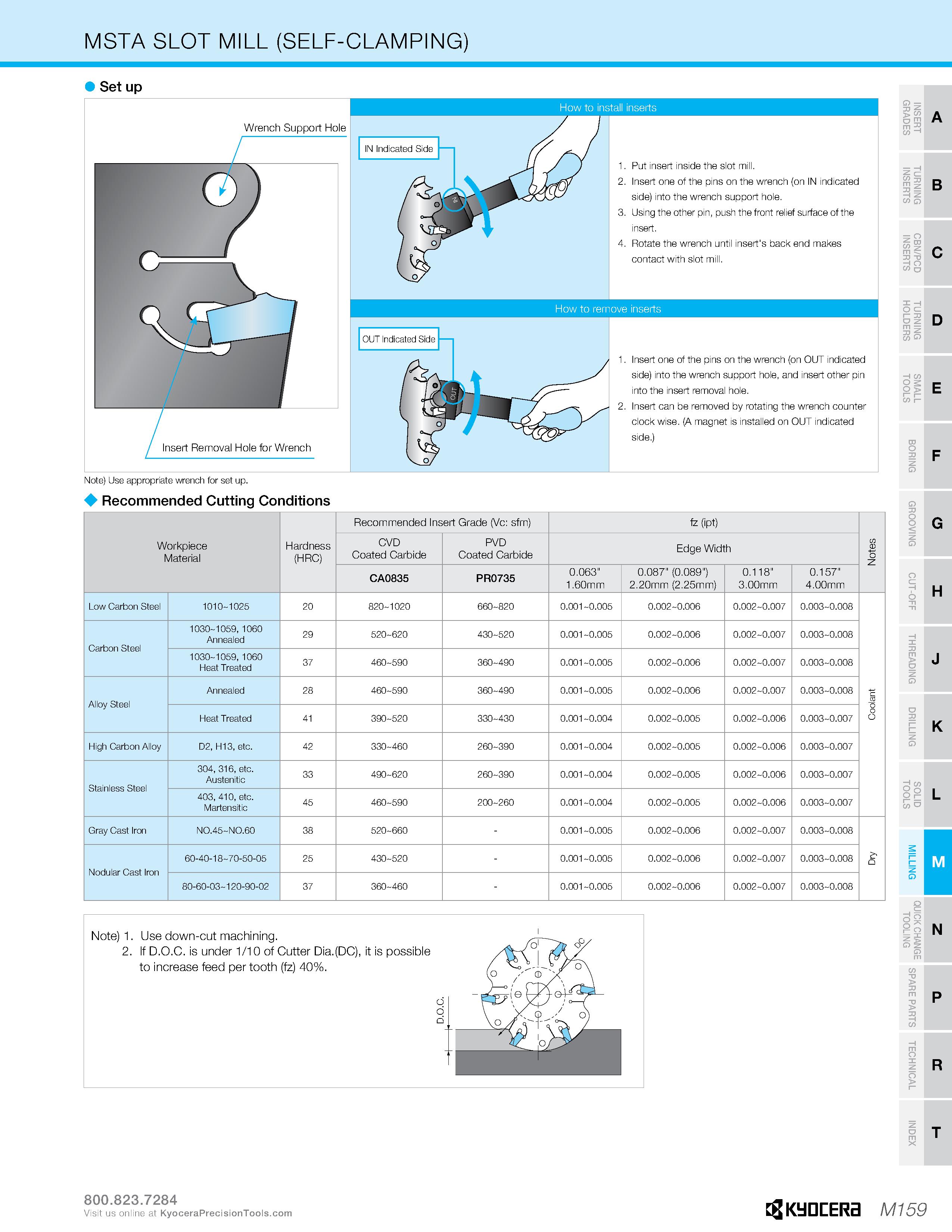

MSTA SLOT MILL (SELF-CLAMPING) Set up How to install inserts 1. Put insert inside the slot mill. 2. Insert one of the pins on the wrench (on IN indicated side) into the wrench support hole. 3. Using the other pin, push thefront relief surface ofthe insert. 4. Rotate the wrench until insert's back end makes contact with slot mill. How to remove inserts 1. Insert one of the pins on the wrench (on OUT indicated side) into the wrench support hole, and insert other pin into the insert removal hole. 2. Insert can be removed by rotating the wrench counter clock wise. (A magnet is installed on OUT indicated side.) Note) Use appropriate wrench for set up. Recommended Cutting Conditions Workpiece Material Hardness (HRC) Recommended Insert Grade (Vc: sfm) fz (ipt) Notes CVD Coated Carbide PVD Coated Carbide Edge Width CA0835 PR0735 0.063" 1.60mm 0.087" (0.089") 2.20mm (2.25mm) 0.118" 3.00mm 0.157" 4.00mm Low Carbon Steel 1010-1025 20 820-1020 660-820 0.001-0.005 0.002-0.006 0.002-0.007 0.003-0.008 Coolant Carbon Steel 1030-1059, 1060 Annealed 29 520-620 430-520 0.001-0.005 0.002-0.006 0.002-0.007 0.003-0.008 1030-1059, 1060 Heat Treated 37 460-590 360-490 0.001-0.005 0.002-0.006 0.002-0.007 0.003-0.008 Alloy Steel Annealed 28 460-590 360-490 0.001-0.005 0.002-0.006 0.002-0.007 0.003-0.008 Heat Treated 41 390-520 330-430 0.001-0.004 0.002-0.005 0.002-0.006 0.003-0.007 High Carbon Alloy D2, H13, etc. 42 330-460 260-390 0.001-0.004 0.002-0.005 0.002-0.006 0.003-0.007 Stainless Steel 304, 316, etc. Austenitic 33 490-620 260-390 0.001-0.004 0.002-0.005 0.002-0.006 0.003-0.007 403, 410, etc. Martensitic 45 460-590 200-260 0.001-0.004 0.002-0.005 0.002-0.006 0.003-0.007 Gray Cast Iron NO.45 NO.60 38 520-660 0.001-0.005 0.002-0.006 0.002-0.007 0.003-0.008 & o Nodular Cast Iron 60-40-18-70-50-05 25 430-520 0.001-0.005 0.002-0.006 0.002-0.007 0.003-0.008 80-60-03-120-90-02 37 360-460 0.001-0.005 0.002-0.006 0.002-0.007 0.003-0.008 O g T> A E D R E R R = T Z C/5 G DO "O SD B C O c i z D m z S g z cz - O > g z o G H K ip N P R D T E F J L M Visit us online at IVII59
