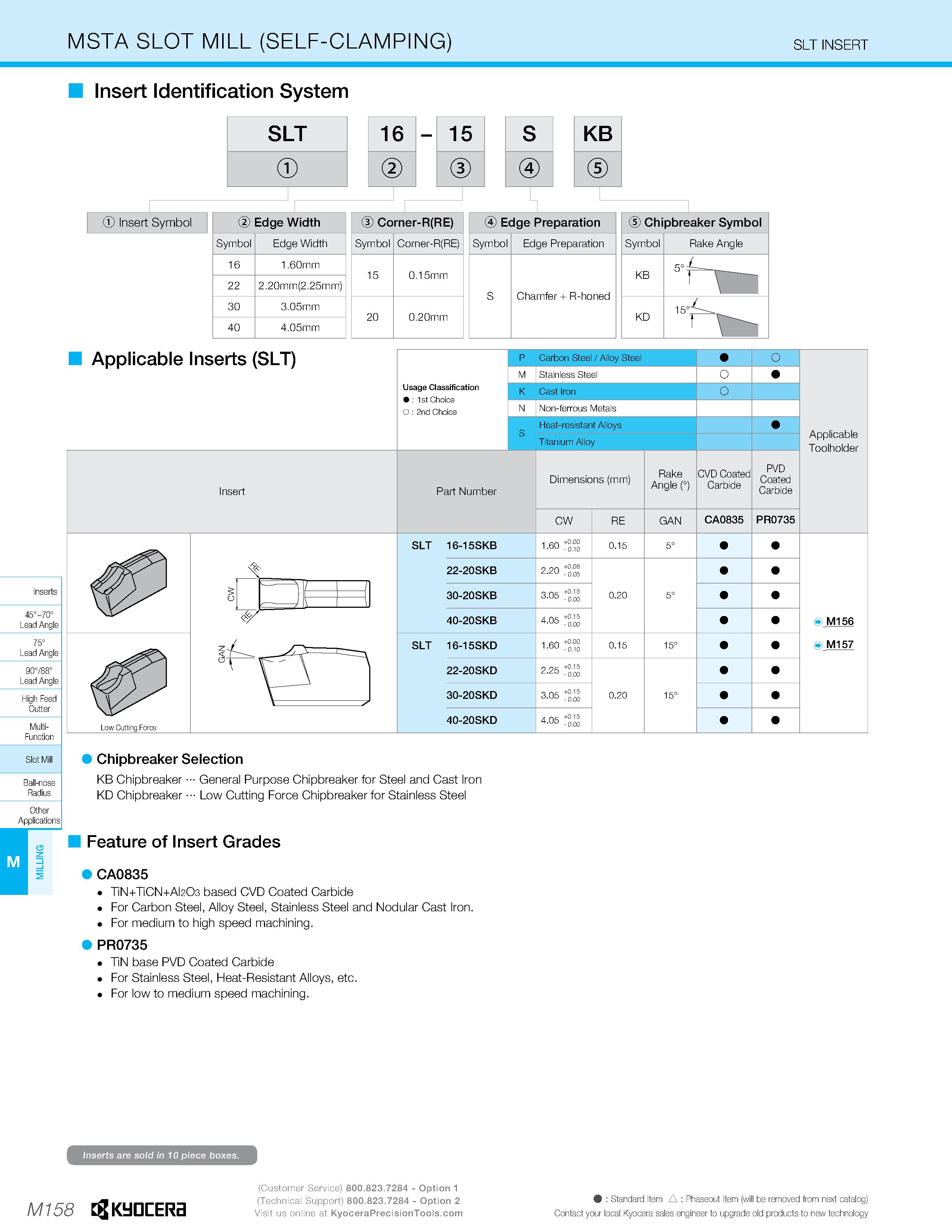

MSTA SLOT MILL (SELF-CLAMPING) SLT INSERT Insert Identification System SLT 16 15 S KB Insert Symbol Edge Width Symbol Edge Width 16 1.60mm 22 2.20mm(2.25mm) 30 3.05mm 40 4.05mm Corner-R(RE) Edge Preparation Chipbreaker Symbol Symbol Corner-R(RE) Symbol Edge Preparation Symbol Rake Angle 15 0.15mm S Chamfer + R-honed KB 20 0.20mm KD 15y \ Applicable Inserts (SLT) Insert Usage Classification : 1st Choice O : 2nd Choice P Carbon Steel / Alloy Steel M Stainless Steel K Cast Iron N Non-ferrous Metals Heat-resistant Alloys Titanium Alloy Part Number Dimensions (mm) CW RE Rake Angle (° CVD Coated Carbide GAN CA0835 PVD Coated Carbide PR0735 Applicable Toolholder 45° 70° Lead Angle 75° Lead Angle 90°/88° Lead Angle High Feed Cutter Multi- Function Low Cutting Force SLT 16-15SKB 22-20SKB 30-20SKB 3.05 ; 40-20SKB SLT 16-15SKD 4.05 ; 1.60 ; 22-20SKD 30-20SKD 2.25 ; 3.05 ; 40-20SKD 4.05 ' M156 M157 Ball-nose Radius Other Applications Chipbreaker Selection KB Chipbreaker General Purpose Chipbreaker for Steel and Cast Iron KD Chipbreaker Low Cutting Force Chipbreaker for Stainless Steel I Feature of Insert Grades CA0835 TiN+TiCN+Al2O3 based CVD Coated Carbide For Carbon Steel, Alloy Steel, Stainless Steel and Nodular Cast Iron. For medium to high speed machining. PR0735 TiN base PVD Coated Carbide For Stainless Steel, Heat-Resistant Alloys, etc. For low to medium speed machining. S +0.00 - 0.10 nserts Slot Mill M Inserts are sold in 10 piece boxes. M158 Kyocera (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology
