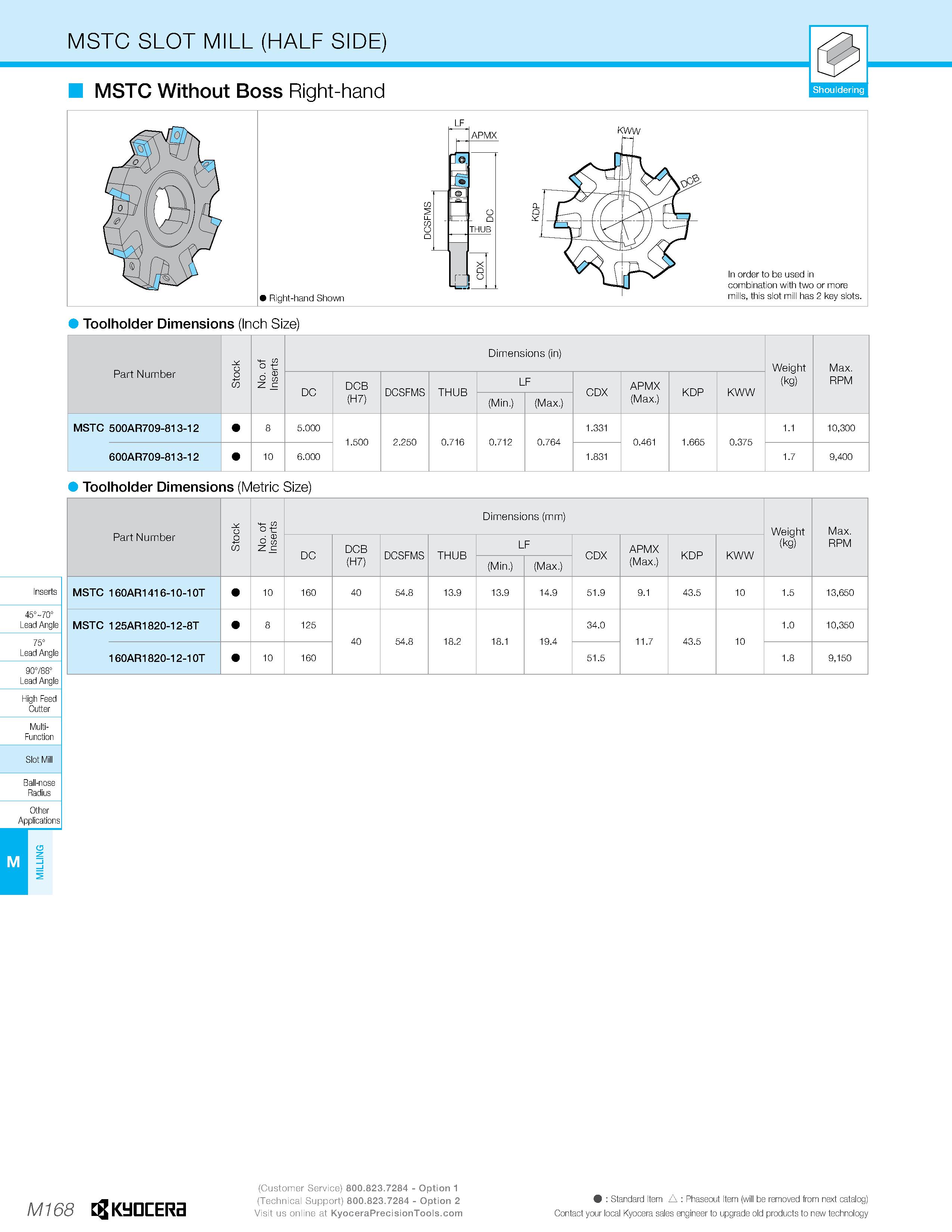

MSTC SLOT MILL (HALF SIDE) MSTC Without Boss Right-hand Toolholder Dimensions (Inch Size) Part Number Stock No. of Inserts Dimensions (in) Weight (kg) Max. RPM DC DCB (H7) DCSFMS THUB LF CDX APMX (Max.) KDP KWW (Min.) (Max.) MSTC 500AR709-813-12 8 5.000 1.500 2.250 0.716 0.712 0.764 1.331 0.461 1.665 0.375 1.1 10,300 600AR709-813-12 10 6.000 1.831 1.7 9,400 Toolholder Dimensions (Metric Size) Part Number Stock No. of Inserts Dimensions (mm) Weight (kg) Max. RPM DC DCB (H7) DCSFMS THUB LF CDX APMX (Max.) KDP KWW (Min.) (Max.) Inserts MSTC 160AR1416-10-10T 10 160 40 54.8 13.9 13.9 14.9 51.9 9.1 43.5 10 1.5 13,650 45° 70° Lead Angle 75° Lead Angle 90788° MSTC 125AR1820-12-8T 8 125 40 54.8 18.2 18.1 19.4 34.0 11.7 43.5 10 1.0 10,350 160AR1820-12-10T 10 160 51.5 1.8 9,150 Lead Angle High Feed Cutter Multi- Function Slot Mill Ball-nose Radius Other Applications M M168 Kyocera (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology
