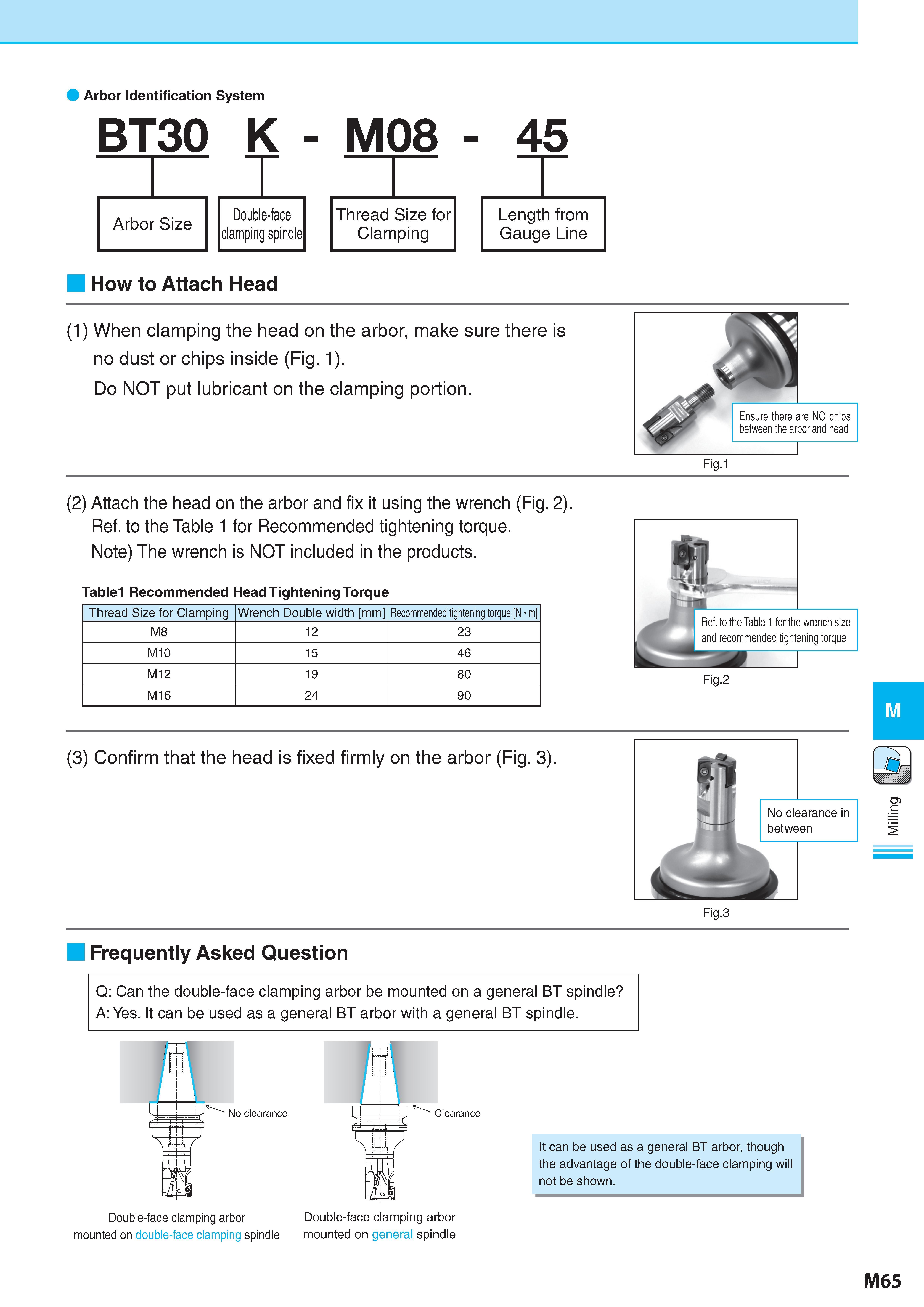

Arbor Identification System BT30 K - M08 - 45 How to Attach Head (1) When clamping the head on the arbor, make sure there is no dust or chips inside (Fig. 1). Do NOT put lubricant on the clamping portion. Fig.1 (2) Attach the head on the arbor and fix it using the wrench (Fig. 2). Ref. to the Table 1 for Recommended tightening torque. Note) The wrench is NOT included in the products. Tablel Recommended Head Tightening Torque Thread Size for Clamping Wrench Double width mm Recommended tightening torque N m M8 12 23 M10 15 46 M12 19 80 M16 24 90 (3) Confirm that the head is fixed firmly on the arbor (Fig. 3). Fig.3 Frequently Asked Question Q: Can the double-face clamping arbor be mounted on a general BT spindle A: Yes. It can be used as a general BT arbor with a general BT spindle. Double-face clamping arbor Double-face clamping arbor mounted on double-face clamping spindle mounted on general spindle It can be used as a general BT arbor, though the advantage of the double-face clamping will not be shown. M65 Milling
