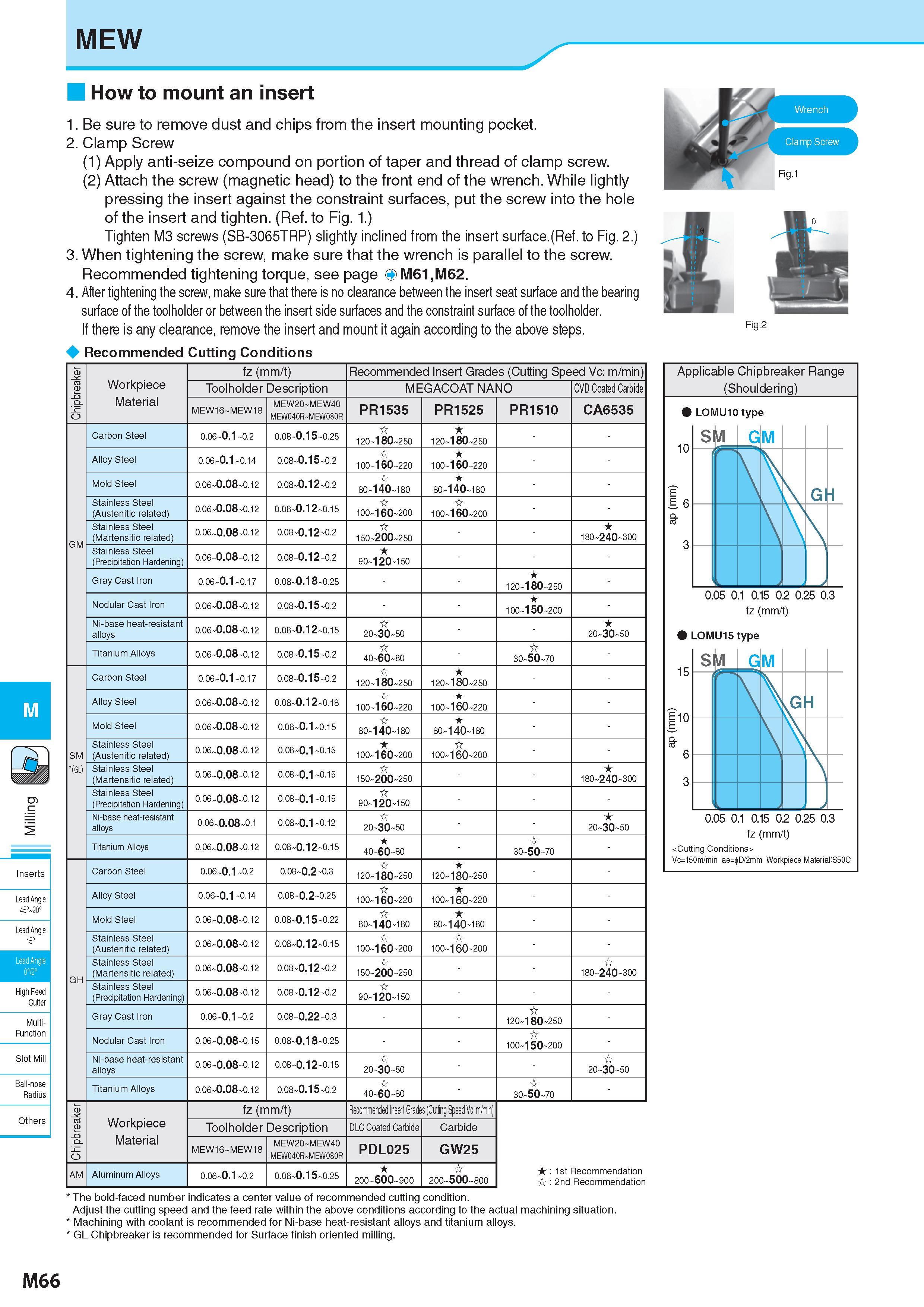

MEW M Inserts Lead Angle 45°'20c Lead Angle 15° ' Lead Angle 0°/2° High Feed Cutter Multi- Function Slot Mill Ball-nose Radius How to mount an insert 1. Be sure to remove dust and chips from the insert mounting pocket. 2. Clamp Screw (1) Apply anti-seize compound on portion of taper and thread of clamp screw. (2) Attach the screw (magnetic head) to the front end of the wrench. While lightly pressing the insert against the constraint surfaces, put the screw into the hole of the insert and tighten. (Ref. to Fig. 1.) Tighten M3 screws (SB-3065TRP) slightly inclined from the insert surface.(Ref. to Fig. 2.) 3. When tightening the screw, make sure that the wrench is parallel to the screw. Recommended tightening torque, see page OM61,M62. 4. After tightening the screw, make sure that there is no clearance between the insert seat surface and the bearing surface of the toolholder or between the insert side surfaces and the constraint surface of the toolholder. If there is any clearance, remove the insert and mount it again according to the above steps. Recommended Cutting Conditions Рекомендованные режимы резания на станках Chipbreaker Стружколом сменной пластины Workpiece fz (mm/t) Recommended Insert Grades Cutting Speed Vc (m/min) Скорость резания (м/мин) Toolholder Description Обозначение MEGACOAT NANO CVD Coated Carbide Material MEW16 MEW18 MEW20 MEW40 MEW040R MEW080R PR1535 PR1525 PR1510 CA6535 Carbon Steel 0.06 0.1 0.2 0.08 0.15 0.25 120 180 250 120 180 250 Alloy Steel 0.06 0.1 0.14 0.08 0.15 0.2 100 160 220 100 160 220 Mold Steel 0.06 0.08 0.12 0.08 0.12 0.2 80 140 180 80 140 180 Stainless Steel (Austenitic related) 0.06 0.08 0.12 0.08 0.12 0.15 100 160 200 100 160 200 GM Stainless Steel (Martensitic related) 0.06 0.08 0.12 0.08 0.12 0.2 150 200 250 180 240 300 Stainless Steel (Precipitation Hardening) 0.06 0.08 0.12 0.08 0.12 0.2 90 120 150 Gray Cast Iron 0.06 0.1 0.17 0.08 0.18 0.25 120 180 250 Nodular Cast Iron 0.06 0.08 0.12 0.08 0.15 0.2 100 150 200 Ni-base heat-resistant alloys 0.06 0.08 0.12 0.08 0.12 0.15 20 30 50 20 30 50 Titanium Alloys 0.06 0.08 0.12 0.08 0.15 0.2 40 60 80 30 50 70 Carbon Steel 0.06 0.1 0.17 0.08 0.15 0.2 120 180 250 120 180 250 Alloy Steel 0.06 0.08 0.12 0.08 0.12 0.18 100 160 220 100 160 220 Mold Steel 0.06 0.08 0.12 0.08 0.1 0.15 80 140 180 80 140 180 SM Stainless Steel (Austenitic related) 0.06 0.08 0.12 0.08 0.1 0.15 100 160 200 100 160 200 (GL) Stainless Steel (Martensitic related) 0.06 0.08 0.12 0.08 0.1 0.15 150 200 250 180 240 300 Stainless Steel (Precipitation Hardening) 0.06 0.08 0.12 0.08 0.1 0.15 90 120 150 Ni-base heat-resistant alloys 0.06 0.08 0.1 0.08 0.1 0.12 20 30 50 20 30 50 Titanium Alloys 0.06 0.08 0.12 0.08 0.12 0.15 40 60 80 30 50 70 Carbon Steel 0.06 0.1 0.2 0.08 0.2 0.3 120 180 250 120 180 250 Alloy Steel 0.06 0.1 0.14 0.08 0.2 0.25 100 160 220 100 160 220 Mold Steel 0.06 0.08 0.12 0.08 0.15 0.22 80 140 180 80 140 180 Stainless Steel (Austenitic related) 0.06 0.08 0.12 0.08 0.12 0.15 100 160 200 100 160 200 GH Stainless Steel (Martensitic related) 0.06 0.08 0.12 0.08 0.12 0.2 150 200 250 180 240 300 Stainless Steel (Precipitation Hardening) 0.06 0.08 0.12 0.08 0.12 0.2 90 120 150 Gray Cast Iron 0.06 0.1 0.2 0.08 0.22 0.3 120 180 250 Nodular Cast Iron 0.06 0.08 0.15 0.08 0.18 0.25 100 150 200 Ni-base heat-resistant alloys 0.06 0.08 0.12 0.08 0.12 0.15 20 30 50 20 30 50 Titanium Alloys 0.06 0.08 0.12 0.08 0.15 0.2 40 60 80 30 50 70 Chipbreaker Стружколом сменной пластины Workpiece fz (mm/t) Recommended Insert Grades Cutting Speed Vc (m/min) Скорость резания (м/мин) Toolholder Description Обозначение DLC Coated Carbide Carbide Material MEW16 MEW18 MEW20 MEW40 MEW040R MEW080R PDL025 GW25 AM Aluminum Alloys 0.06 0.1 0.2 0.08 0.15 0.25 200 600 900 200 500 800 : 1st Recommendation : 2nd Recommendation The bold-faced number indicates a center value of recommended cutting condition. Adjust the cutting speed and the feed rate within the above conditions according to the actual machining situation. Machining with coolant is recommended for Ni-base heat-resistant alloys and titanium alloys. GL Chipbreaker Стружколом сменной пластины is recommended for Surface finish oriented milling. Applicable Chipbreaker Стружколом сменной пластины Range (Shouldering) LOMU1Q type fz (mm/t) LOMU15 type fz (mm/t) Vc=150m/min ae= D/2mm Workpiece Material Обрабатываемый материал :S50C M66
