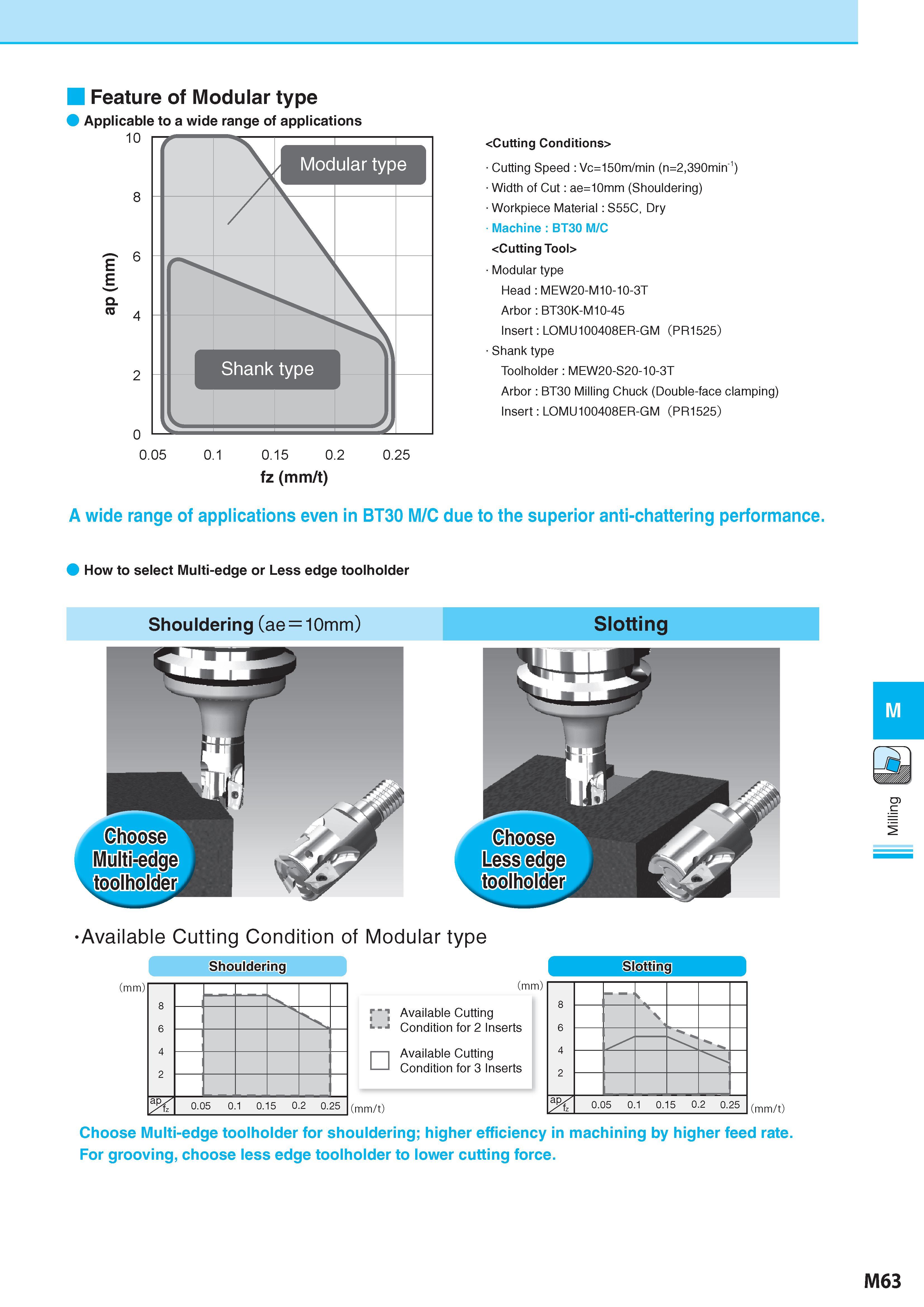

Feature of Modular type Applicable to a wide range of applications E J= o. (0 Cutting Speed : Vc=150m/min (n=2,390min'1) Width of Cut : ae=10mm (Shouldering) Workpiece Material Обрабатываемый материал : S55C, Dry Machine : BT30 M/C Modular type Head : MEW20-M10-10-3T Arbor : BT30K-M10-45 Insert : LOMU100408ER-GM (PR1525) Shank type Toolholder : MEW20-S20-10-3T Arbor : BT30 Milling Chuck (Double-face clamping) Insert : LOMU100408ER-GM (PR1525) fz (mm/t) A wide range of applications even in BT30 M/C due to the superior anti-chattering performance. How to select Multi-edge or Less edge toolholder M Available Cutting Condition of Modular type (mm) Shouldering 8 6 4 2 0.05 0.1 0.15 0.2 0.25 (mm) 1 Available Cutting Condition for 2 Inserts Available Cutting Condition for 3 Inserts (mm/t) 8 6 4 2 S < X 0.05 0.1 0.15 0.2 0.25 (mm/t) Choose Multi-edge toolholder for shouldering; higher efficiency in machining by higher feed rate. For grooving, choose less edge toolholder to lower cutting force. M63 Milling
