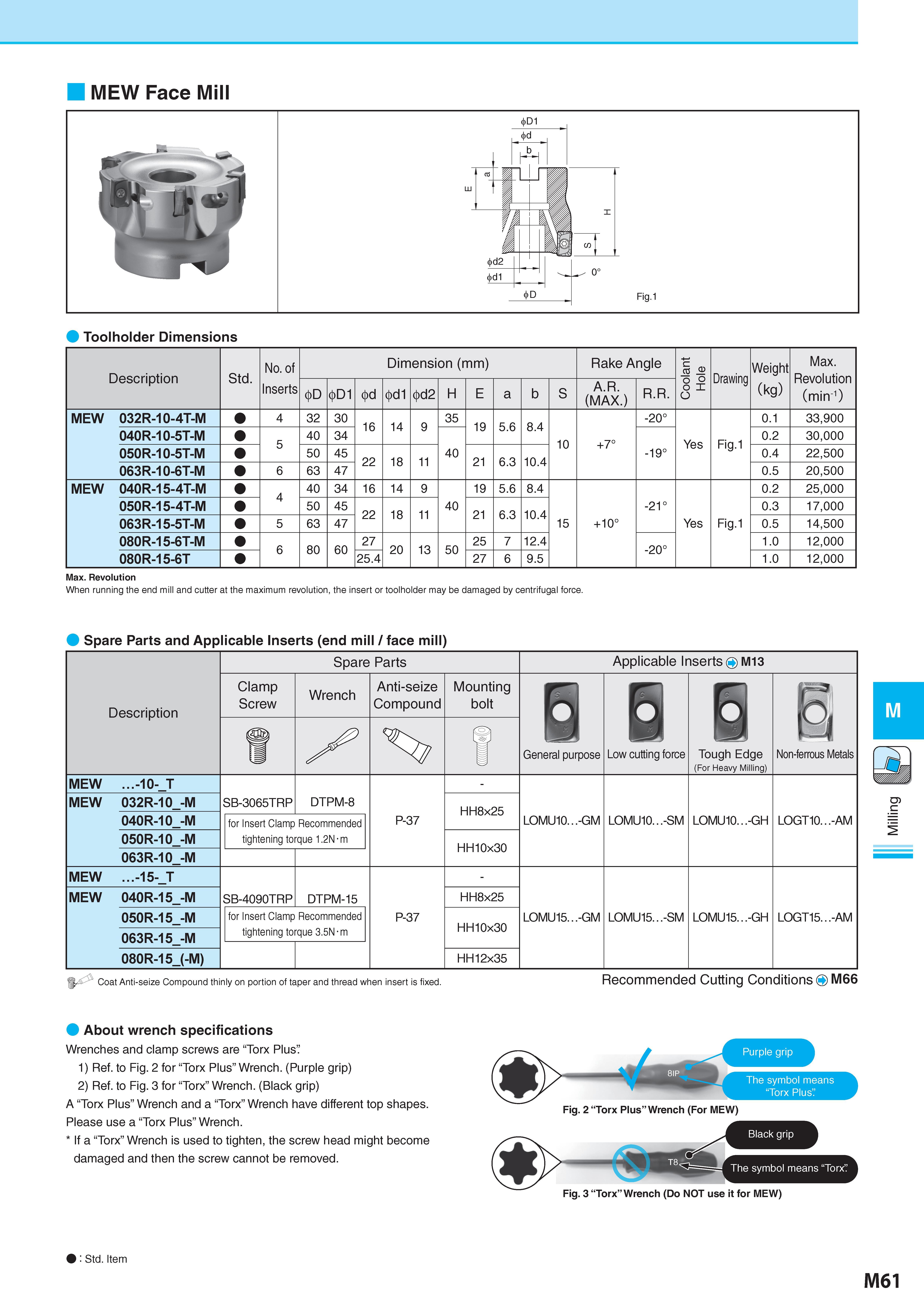

MEW Face Mill Toolholder Dimensions Description Обозначение Std. No. of Inserts Dimension (mm) Размеры в мм Rake Angle Coolant Hole Drawing Weight (kg) Вес инструмента в кг (kg) Max. Revolution (min-1) Максимальное количество оборотов на шпинделе станка (об/мин) 4>D 4>D1 4>d d1 d2 H E a b S A.R. (MAX.) R.R. MEW 032R-10-4T-M 4 32 30 16 14 9 35 19 5.6 8.4 10 +7° -20° Yes Fig.1 0.1 33,900 040R-10-5T-M 5 40 34 40 -19° 0.2 30,000 050R-10-5T-M 50 45 22 18 11 21 6.3 10.4 0.4 22,500 063R-10-6T-M 6 63 47 0.5 20,500 MEW 040R-15-4T-M 4 40 34 16 14 9 40 19 5.6 8.4 15 +10° -21° Yes Fig.1 0.2 25,000 050R-15-4T-M 50 45 22 18 11 21 6.3 10.4 0.3 17,000 063R-15-5T-M 5 63 47 0.5 14,500 080R-15-6T-M 6 80 60 27 20 13 50 25 7 12.4 -20° 1.0 12,000 080R-15-6T 25.4 27 6 9.5 1.0 12,000 Max. Revolution When running the end mill and cutter at the maximum revolution, the insert or toolholder may be damaged by centrifugal force. Spare Parts and Applicable Inserts Запасные части и применяемые сменные пластины (end mill / face mill) Description Обозначение Spare Parts Applicable Inserts O M13 Clamp Screw Wrench Anti-seize Compound Mounting bolt General purpose Low cutting force Tough Edge (For Heavy Milling) Non-ferrous Metals u X f MEW ...-10- T SB-3065TRP DTPM-8 P-37 - L0MU10...-GM L0MU10...-SM L0MU10...-GH L0GT10...-AM MEW 032R-10 -M HH8x25 040R-10 -M for Insert Clamp Recommended tightening torque 1.2N-m 050R-10 -M HH10x30 063R-10 -M MEW ...-15- T SB-4090TRP DTPM-15 P-37 - L0MU15...-GM L0MU15...-SM L0MU15...-GH L0GT15...-AM MEW 040R-15 -M HH8x25 050R-15 -M for Insert Clamp Recommended HH10x30 063R-15 -M tightening to rque 3.5N-m 080R-15 (-M) HH12x35 Coat Anti-seize Compound thinly on portion of taper and thread when insert is fixed. About wrench specifications Wrenches and clamp screws are “Torx Plus’.’ 1) Ref. to Fig. 2 for “Torx Plus” Wrench. (Purple grip) 2) Ref. to Fig. 3 for “Torx” Wrench. (Black grip) A “Torx Plus” Wrench and a “Torx” Wrench have different top shapes. Please use a “Torx Plus” Wrench. If a “Torx” Wrench is used to tighten, the screw head might become damaged and then the screw cannot be removed. Recommended Cutting Conditions Рекомендованные режимы резания на станкахO M66 Fig. 2 “Torx Plus” Wrench (For MEW) : Std. Item Стандартная позиция M61 Milling
