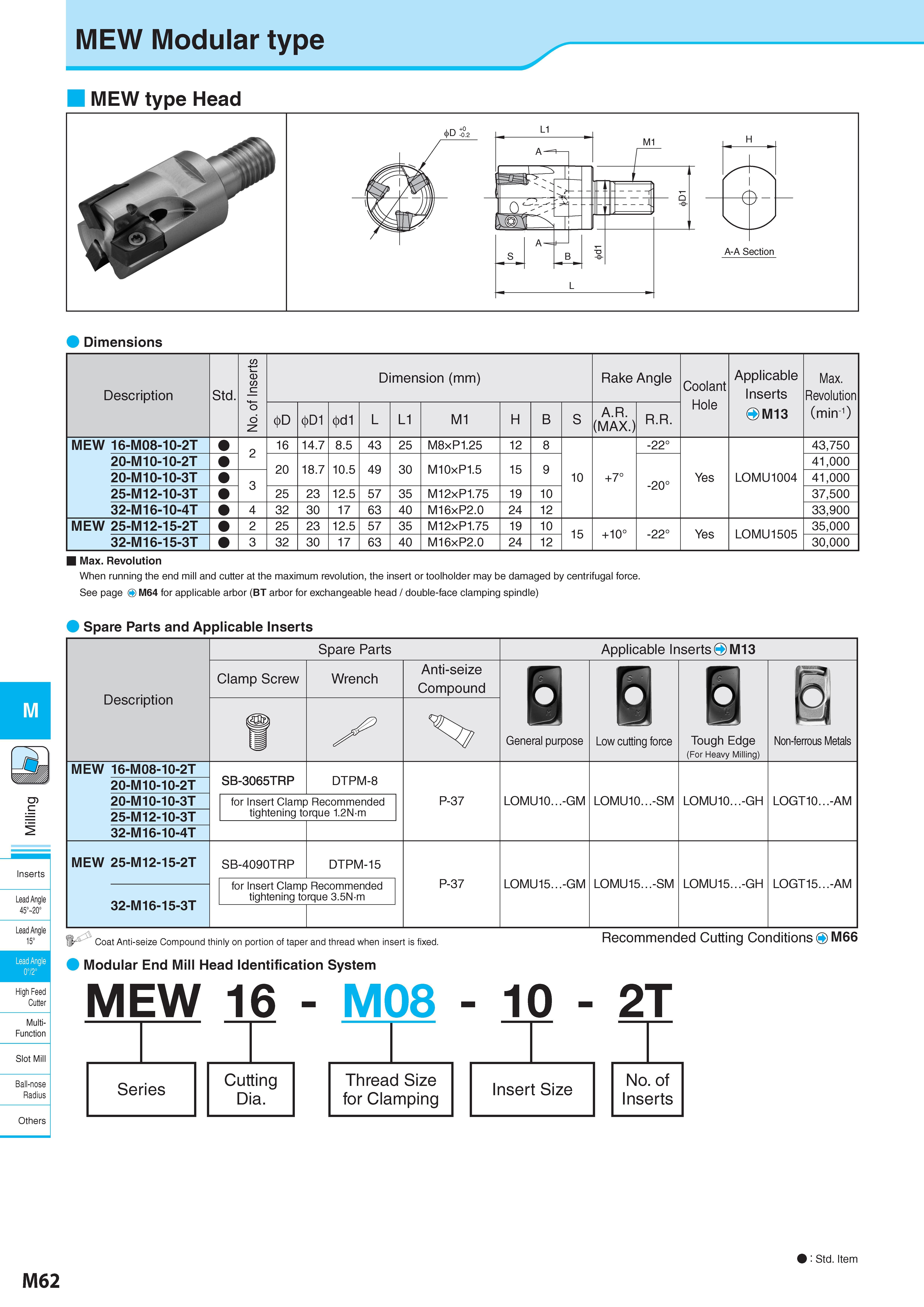

MEW Modular type MEW type Head 0 A-A Section H Dimensions Description Обозначение Std. No. of Inserts Dimension (mm) Размеры в мм Rake Angle Coolant Hole Applicable Inserts OM13 Max. Revolution (min-1) Максимальное количество оборотов на шпинделе станка (об/мин) 4>D 4>D1 d1 L L1 M1 H B S A.R. (MAX.) R.R. MEW 16-M08-10-2T 2 16 14.7 8.5 43 25 M8xP1.25 12 8 10 +7° -22° Yes LOMU1004 43,750 20-M10-10-2T 20 18.7 10.5 49 30 M10xP1.5 15 9 -20° 41,000 20-M10-10-3T 3 41,000 25-M12-10-3T 25 23 12.5 57 35 M12xP1.75 19 10 37,500 32-M16-10-4T 4 32 30 17 63 40 M16xP2.0 24 12 33,900 MEW 25-M12-15-2T 2 25 23 12.5 57 35 M12xP1.75 19 10 15 +10° -22° Yes LOMU1505 35,000 32-M16-15-3T 3 32 30 17 63 40 M16xP2.0 24 12 30,000 Max. Revolution When running the end mill and cutter at the maximum revolution, the insert or toolholder may be damaged by centrifugal force. See page O M64 for applicable arbor (BT arbor for exchangeable head / double-face clamping spindle) Spare Parts and Applicable Inserts Запасные части и применяемые сменные пластины M Inserts Lead Angle 45° 20° Lead Angle 15° Lead Angle 0°/2° High Feed Cutter Multi- Function Slot Mill Ball-nose Radius Others Description Обозначение Spare Parts Clamp Screw Wrench Anti-seize Compound Applicable Inserts O M13 General purpose Low cutting force Tough Edge (For Heavy Milling) Non-ferrous Metals MEW 16-M08-10-2T 20-M10-10-2T SB-3065TRP DTPM-8 20-M10-10-3T 25-M12-10-3T for Insert Clamp Recommended tightening torque 1.2N-m 32-M16-10-4T P-37 LOMUIO...-GM LOMUIO...-SM LOMUIO...-GH LOGTIO...-AM SB-4090TRP DTPM-15 for Insert Clamp Recommended tightening torque 3.5N-m MEW 25-M12-15-2T 32-M16-15-3T P-37 LOMU15...-GM LOMU15...-SM LOMU15...-GH LOGT15...-AM f A" Coat Anti-seize Compound thinly on portion of taper and thread when insert is fixed. Modular End Mill Head Identification System Recommended Cutting Conditions Рекомендованные режимы резания на станкахO M66 MEW 16 - M08 - 10 - 2T M62 : Std. Item
