936 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.M186

Каталог KYOCERA 2017 Инструмент режущий Стр. M186 0936 Lab2u

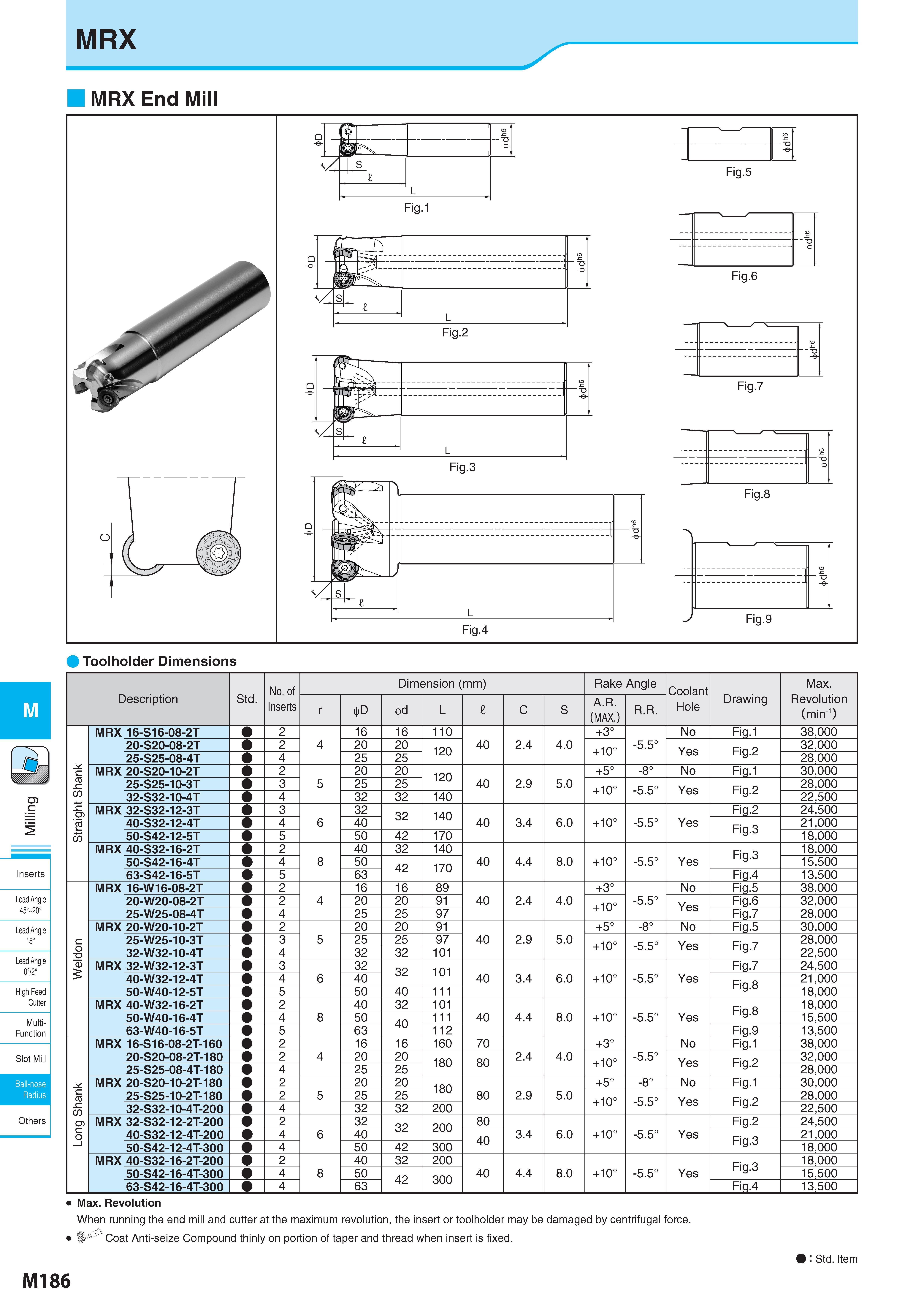

MRX M Inserts Lead Angle 45° 20° Lead Angle 15° Lead Angle 0°/2° High Feed Cutter Multi- Function Slot Mill Ball-nose Radius Others MRX End Mill 1 2 aK s L i Fig.1 Fig.5 Fig.6 Fig.7 Fig.8 rH Fig.4 Fig.9 L Toolholder Dimensions Description Обозначение Std. No. of Inserts Dimension (mm) Размеры в мм Rake Angle Coolant Hole Drawing Max. Revolution (min-1) Максимальное количество оборотов на шпинделе станка (об/мин) r D d L I C S A.R. (MAX.) R.R. Straight Shank MRX 16-S16-08-2T 2 4 16 16 110 40 2.4 4.0 +3° -5.5° No Fig.1 38,000 20-S20-08-2T 2 20 20 120 +10° Yes Fig.2 32,000 25-S25-08-4T 4 25 25 28,000 MRX 20-S20-10-2T 2 5 20 20 120 40 2.9 5.0 +5° -8° No Fig.1 30,000 25-S25-10-3T 3 25 25 +10° -5.5° Yes Fig.2 28,000 32-S32-10-4T 4 32 32 140 22,500 MRX 32-S32-12-3T 3 6 32 32 140 40 3.4 6.0 +10° -5.5° Yes Fig.2 24,500 40-S32-12-4T 4 40 Fig.3 21,000 50-S42-12-5T 5 50 42 170 18,000 MRX 40-S32-16-2T 2 8 40 32 140 40 4.4 8.0 +10° -5.5° Yes Fig.3 18,000 50-S42-16-4T 4 50 42 170 15,500 63-S42-16-5T 5 63 Fig.4 13,500 Weldon MRX 16-W16-08-2T 2 4 16 16 89 40 2.4 4.0 +3° -5.5° No Fig.5 38,000 20-W20-08-2T 2 20 20 91 +10° Yes Fig.6 32,000 25-W25-08-4T 4 25 25 97 Fig.7 28,000 MRX 20-W20-10-2T 2 5 20 20 91 40 2.9 5.0 +5° -8° No Fig.5 30,000 25-W25-10-3T 3 25 25 97 +10° -5.5° Yes Fig.7 28,000 32-W32-10-4T 4 32 32 101 22,500 MRX 32-W32-12-3T 3 6 32 32 101 40 3.4 6.0 +10° -5.5° Yes Fig.7 24,500 40-W32-12-4T 4 40 Fig.8 21,000 50-W40-12-5T 5 50 40 111 18,000 MRX 40-W32-16-2T 2 8 40 32 101 40 4.4 8.0 +10° -5.5° Yes Fig.8 18,000 50-W40-16-4T 4 50 40 111 15,500 63-W40-16-5T 5 63 112 Fig.9 13,500 Long Shank MRX 16-S16-08-2T-160 2 4 16 16 160 70 2.4 4.0 +3° -5.5° No Fig.1 38,000 20-S20-08-2T-180 2 20 20 180 80 +10° Yes Fig.2 32,000 25-S25-08-4T-180 4 25 25 28,000 MRX 20-S20-10-2T-180 2 5 20 20 180 80 2.9 5.0 +5° -8° No Fig.1 30,000 25-S25-10-2T-180 2 25 25 +10° -5.5° Yes Fig.2 28,000 32-S32-10-4T-200 4 32 32 200 22,500 MRX 32-S32-12-2T-200 2 6 32 32 200 80 3.4 6.0 +10° -5.5° Yes Fig.2 24,500 40-S32-12-4T-200 4 40 40 Fig.3 21,000 50-S42-12-4T-300 4 50 42 300 18,000 MRX 40-S32-16-2T-200 2 8 40 32 200 40 4.4 8.0 +10° -5.5° Yes Fig.3 18,000 50-S42-16-4T-300 4 50 42 300 15,500 63-S42-16-4T-300 4 63 Fig.4 13,500 Max. Revolution When running the end mill and cutter at the maximum revolution, the insert or toolholder may be damaged by centrifugal force. Coat Anti-seize Compound thinly on portion of taper and thread when insert is fixed. : Std. Item Стандартная позиция M186
