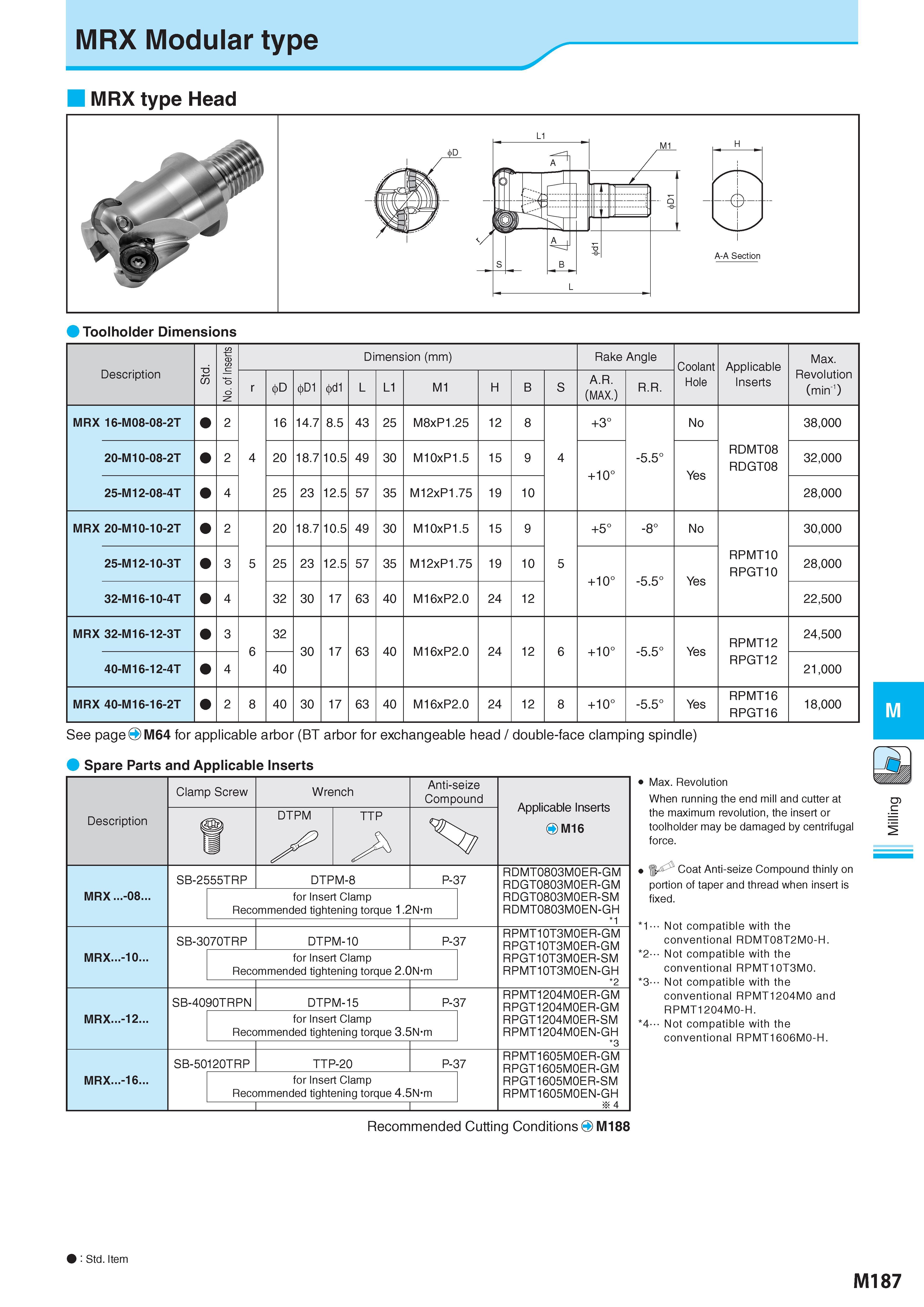

MRX Modular type MRX type Head Toolholder Dimensions Description Обозначение T3 No. of Inserts Dimension (mm) Размеры в мм Rake Angle Coolant Hole Applicable Inserts Max. Revolution (min-1) Максимальное количество оборотов на шпинделе станка (об/мин) r < D 0D1 0d1 L L1 M1 H B S A.R. (MAX.) R.R. MRX 16-M08-08-2T 2 4 16 14.7 8.5 43 25 M8xP1.25 12 8 4 +3° -5.5° No RDMT08 RDGT08 38,000 20-M10-08-2T 2 20 18.7 10.5 49 30 M10xP1.5 15 9 +10° Yes 32,000 25-M12-08-4T 4 25 23 12.5 57 35 M12xP1.75 19 10 28,000 MRX 20-M10-10-2T 2 5 20 18.7 10.5 49 30 M10xP1.5 15 9 5 +5° -8° No RPMT10 RPGT10 30,000 25-M12-10-3T 3 25 23 12.5 57 35 M12xP1.75 19 10 +10° -5.5° Yes 28,000 32-M16-10-4T 4 32 30 17 63 40 M16xP2.0 24 12 22,500 MRX 32-M16-12-3T 3 6 32 30 17 63 40 M16xP2.0 24 12 6 +10° -5.5° Yes RPMT12 RPGT12 24,500 40-M16-12-4T 4 40 21,000 MRX 40-M16-16-2T 2 8 40 30 17 63 40 M16xP2.0 24 12 8 +10° -5.5° Yes RPMT16 RPGT16 18,000 See page O M64 for applicable arbor (BT arbor for exchangeable head / double-face clamping spindle) Max. Revolution When running the end mill and cutter at the maximum revolution, the insert or toolholder may be damaged by centrifugal force. Coat Anti-seize Compound thinly on portion of taper and thread when insert is fixed. 1 - Not compatible with the conventional RDMT08T2M0-H. 2 - Not compatible with the conventional RPMT10T3M0. 3 Not compatible with the conventional RPMT1204M0 and RPMT1204M0-H. 4 - Not compatible with the conventional RPMT1606M0-H. Spare Parts and Applicable Inserts Запасные части и применяемые сменные пластины Recommended Cutting Conditions Рекомендованные режимы резания на станкахO M188 M : Std. Item Стандартная позиция M187 Milling
