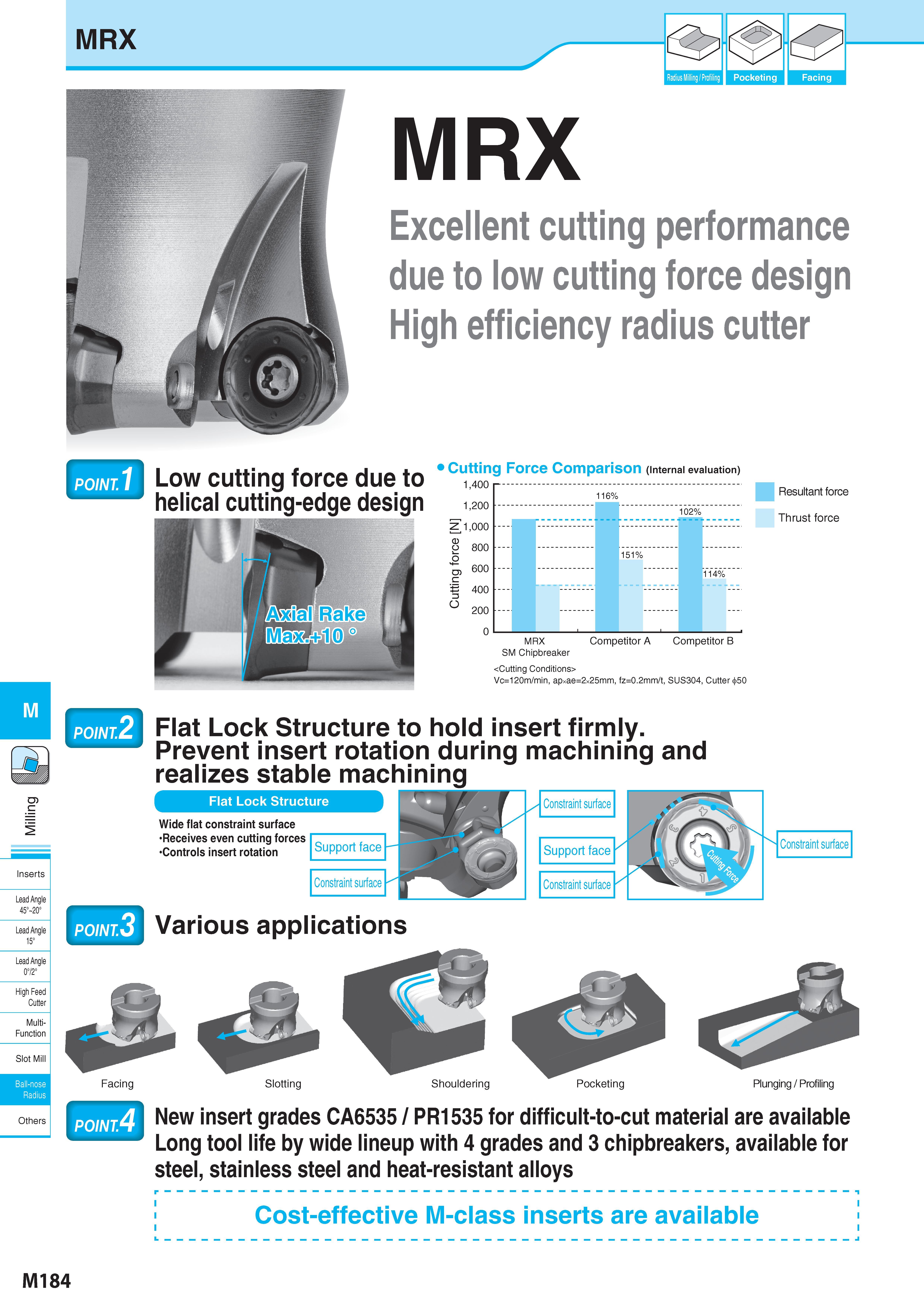

c Inserts Lead Angle 45° 20° Lead Angle 15° 0°/2° High Feed Cutter Multi- Function Slot Mill Others MRX 1 Pocketing Facing MRX Excellent cutting performance due to low cutting force design High efficiency radius cutter Low cutting force due to helical cutting-edge design ’Cutting Force Comparison (Internal evaluation) 1,400 116% .02% 1,200 2 1,000 0 p 800 600 400 200 0 151% Resultant force Thrust force MRX Competitor A Competitor B SM Chipbreaker Стружколом сменной пластины Vc=120m/min, apxae=2x25mm, fz=0.2mm/t, SUS304, Cutter 50 Flat Lock Structure to hold insert firmly. Prevent insert rotation during machining and realizes stable machining Flat Lock Structure Wide flat constraint surface Receives even cutting forces Controls insert rotation Various applications Facing Slotting Shouldering Pocketing Plunging / Profiling 4 New insert grades CA6535 / PR1535 for difficult-to-cut material are available Long tool life by wide lineup with 4 grades and 3 chipbreakers, available for steel, stainless steel and heat-resistant alloys r ' ' Cost-effective M-class inserts are available M184 M
