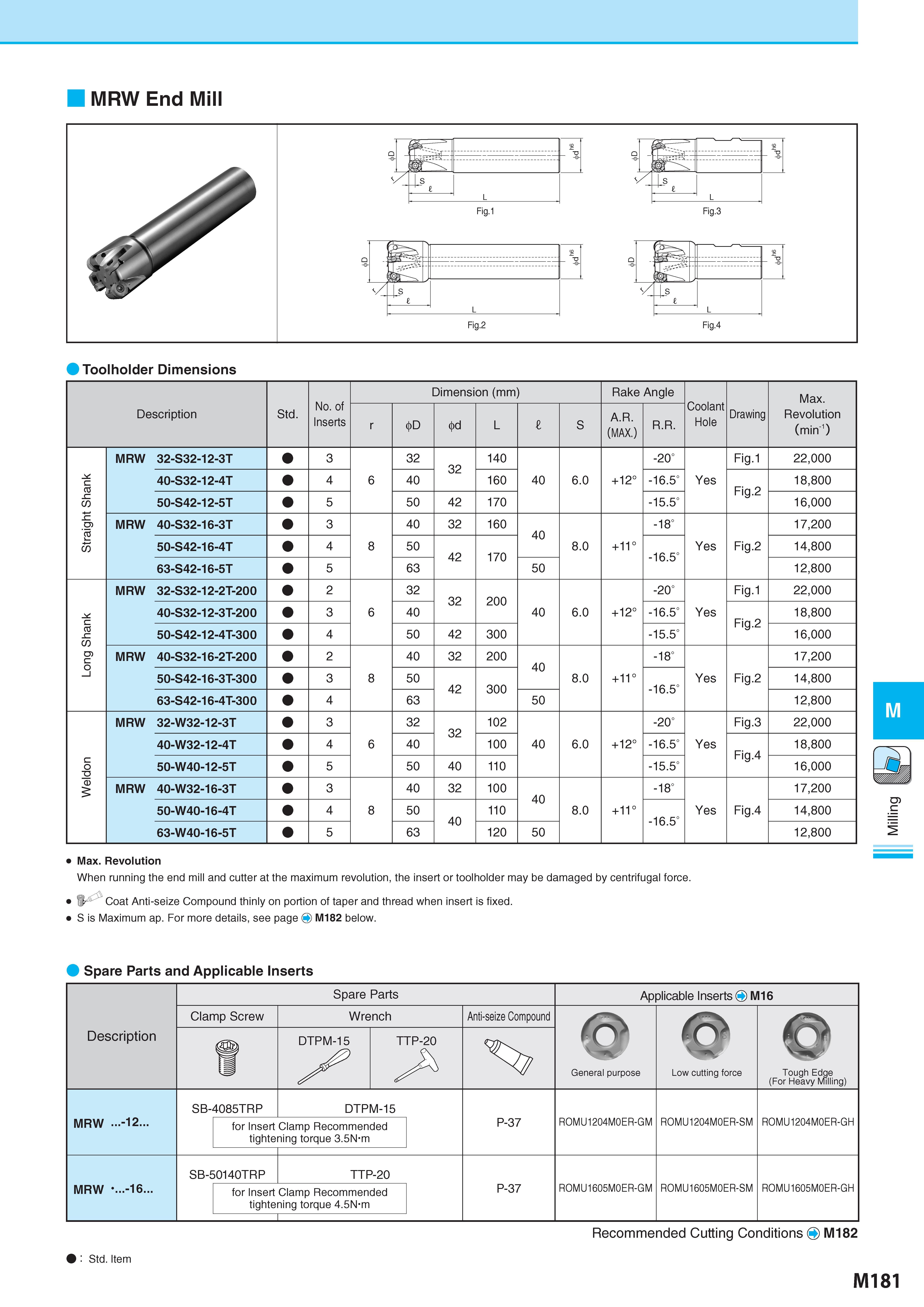

MRW End Mill Toolholder Dimensions Description Обозначение Std. No. of Inserts Dimension (mm) Размеры в мм Rake Angle Coolant Hole Drawing Max. Revolution (min-1) Максимальное количество оборотов на шпинделе станка (об/мин) r 4>D 4>d L I S A.R. (MAX.) R.R. Straight Shank MRW 32-S32-12-3T 3 6 32 32 140 40 6.0 +12° -20° Yes Fig.1 22,000 40-S32-12-4T 4 40 160 -16.5° Fig.2 18,800 50-S42-12-5T 5 50 42 170 -15.5° 16,000 MRW 40-S32-16-3T 3 8 40 32 160 40 8.0 +11° -18° Yes Fig.2 17,200 50-S42-16-4T 4 50 42 170 -16.5° 14,800 63-S42-16-5T 5 63 50 12,800 Long Shank MRW 32-S32-12-2T-200 2 6 32 32 200 40 6.0 +12° -20° Yes Fig.1 22,000 40-S32-12-3T-200 3 40 -16.5° Fig.2 18,800 50-S42-12-4T-300 4 50 42 300 -15.5° 16,000 MRW 40-S32-16-2T-200 2 8 40 32 200 40 8.0 +11° -18° Yes Fig.2 17,200 50-S42-16-3T-300 3 50 42 300 -16.5° 14,800 63-S42-16-4T-300 4 63 50 12,800 Weldon MRW 32-W32-12-3T 3 6 32 32 102 40 6.0 +12° -20° Yes Fig.3 22,000 40-W32-12-4T 4 40 100 -16.5° Fig.4 18,800 50-W40-12-5T 5 50 40 110 -15.5° 16,000 MRW 40-W32-16-3T 3 8 40 32 100 40 8.0 +11° -18° Yes Fig.4 17,200 50-W40-16-4T 4 50 40 110 -16.5° 14,800 63-W40-16-5T 5 63 120 50 12,800 Max. Revolution When running the end mill and cutter at the maximum revolution, the insert or toolholder may be damaged by centrifugal force. y Coat Anti-seize Compound thinly on portion of taper and thread when insert is fixed. S is Maximum ap. For more details, see page O M182 below. Spare Parts and Applicable Inserts Запасные части и применяемые сменные пластины Description Обозначение Spare Parts Clamp Screw Wrench DTPM-15 TTP-20 Anti-seize Compound Applicable Inserts M16 General purpose Low cutting force Tough Edge (For Heavy Milling) MRW ...-12.., SB-4085TRP DTPM-15 for Insert Clamp Recommended tightening torque 3.5N-m P-37 ROMU1204M0ER-GM ROMU1204M0ER-SM ROMU1204M0ER-GH MRW ...-16.. SB-50140TRP TTP-20 for Insert Clamp Recommended tightening torque 4.5N-m P-37 ROMU1605M0ER-GM ROMU1605M0ER-SM ROMU1605M0ER-GH : Std. Item Стандартная позиция Recommended Cutting Conditions Рекомендованные режимы резания на станках O M182 M181 Milling
