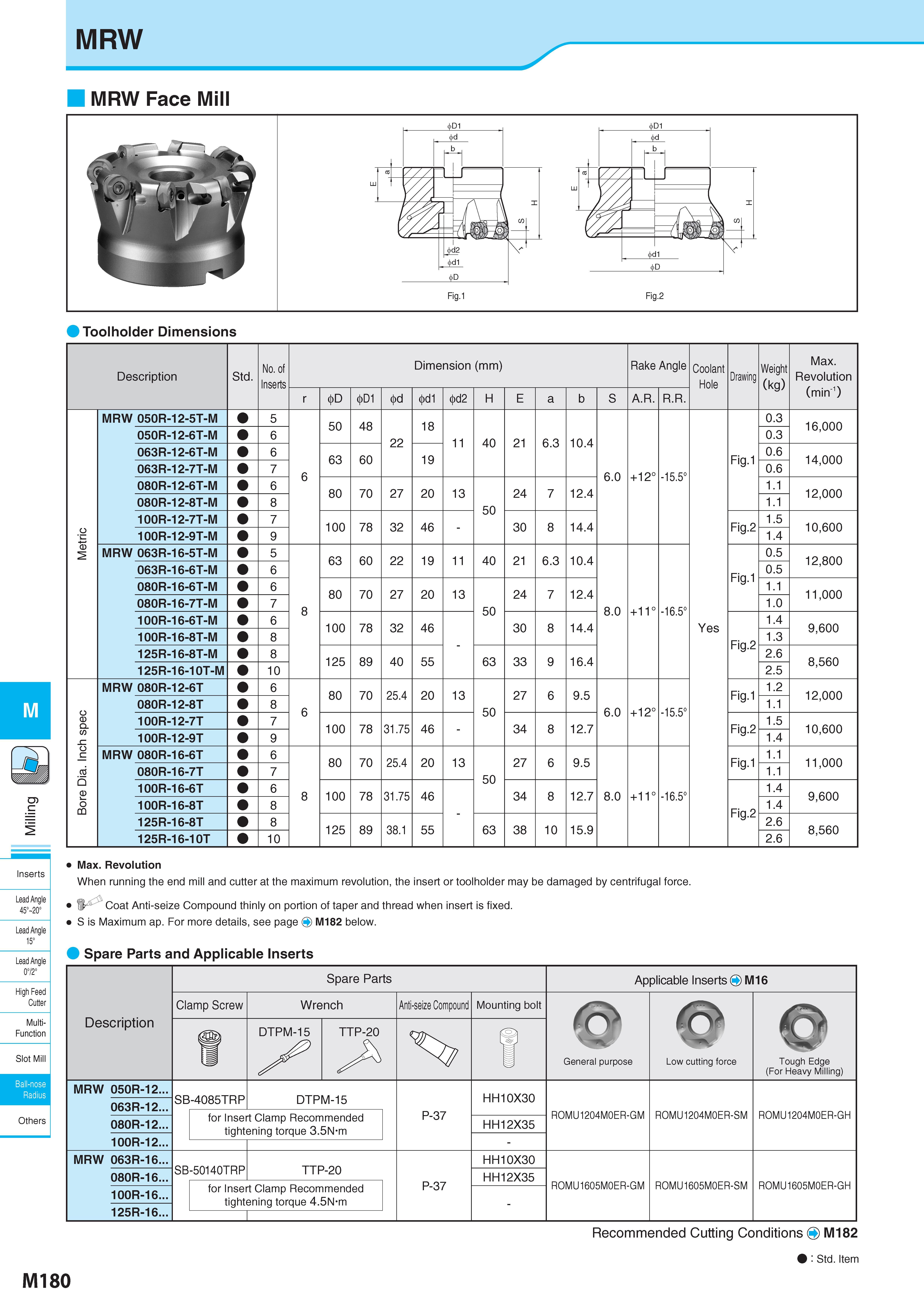

MRW M Inserts Lead Angle 45° 20° Lead Angle 15° Lead Angle 0°/2° High Feed Cutter Multi- Function Slot Mill Ball-nose Radius Others MRW Face Mill Toolholder Dimensions Description Обозначение Std. No. of Inserts Dimension (mm) Размеры в мм Rake Angle Coolant Hole Drawing Weight (kg) Вес инструмента в кг (kg) Max. Revolution r 4>D 0D1 d 0d1 4>d2 H E a b S A.R. R.R. (min-1) MRW 050R-12-5T-M 5 50 48 18 0.3 16,000 050R-12-6T-M 6 22 11 40 21 6.3 10.4 0.3 063R-12-6T-M 6 63 60 19 Fig.1 0.6 14,000 063R-12-7T-M 7 6 6.0 +12° -15.5° 0.6 080R-12-6T-M 6 80 70 27 20 13 24 7 12.4 1.1 12,000 080R-12-8T-M 8 50 1.1 100R-12-7T-M 7 100 78 32 46 30 8 14.4 Fig.2 1.5 10,600 Metric 100R-12-9T-M 9 1.4 MRW 063R-16-5T-M 5 63 60 22 19 11 40 21 6.3 10.4 0.5 12,800 063R-16-6T-M 6 Fig.1 0.5 080R-16-6T-M 6 80 70 27 20 13 24 7 12.4 1.1 11,000 080R-16-7T-M 7 8 50 8.0 +11° -16.5° 1.0 100R-16-6T-M 6 100 78 32 46 30 8 14.4 Yes 1.4 9,600 100R-16-8T-M 8 Fig.2 1.3 125R-16-8T-M 8 125 89 40 55 63 33 9 16.4 2.6 8,560 125R-16-10T-M 10 2.5 MRW 080R-12-6T 6 80 70 25.4 20 13 27 6 9.5 Fig.1 1.2 12,000 Bore Dia. Inch spec 080R-12-8T 8 6 50 6.0 +12° -15.5° 1.1 100R-12-7T 7 100 78 31.75 46 34 8 12.7 Fig.2 1.5 10,600 100R-12-9T 9 1.4 MRW 080R-16-6T 6 80 70 25.4 20 13 27 6 9.5 Fig.1 1.1 11,000 080R-16-7T 7 50 1.1 100R-16-6T 6 8 100 78 31.75 46 34 8 12.7 8.0 +11° -16.5° 1.4 9,600 100R-16-8T 8 Fig.2 1.4 125R-16-8T 8 125 89 38.1 55 63 38 10 15.9 2.6 8,560 125R-16-10T 10 2.6 Max. Revolution When running the end mill and cutter at the maximum revolution, the insert or toolholder may be damaged by centrifugal force. Coat Anti-seize Compound thinly on portion of taper and thread when insert is fixed. S is Maximum ap. For more details, see page O M182 below. Spare Parts and Applicable Inserts Запасные части и применяемые сменные пластины Description Обозначение Spare Parts Clamp Screw Wrench DTPM-15 TTP-20 Anti-seize Compound Mounting bolt Applicable Inserts M16 General purpose Low cutting force Tough Edge (For Heavy Milling) MRW 050R-12.. 063R-12.. SB-4085TRP DTPM-15 HH10X30 080R-12.. 100R-12.. for Insert Clamp Recommended tightening torque 3.5N-m P-37 HH12X35 ROMU1204M0ER-GM ROMU1204M0ER-SM ROMU1204M0ER-GH MRW 063R-16... 080R-16.. SB-50140TRP TTP-20 HH10X30 100R-16.. 125R-16.. for Insert Clamp Recommended tightening torque 4.5N-m P-37 HH12X35 ROMU1605M0ER-GM ROMU1605M0ER-SM ROMU1605M0ER-GH Recommended Cutting Conditions Рекомендованные режимы резания на станках O M182 : Std. Item Стандартная позиция M180
