628 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.K71

Каталог KYOCERA 2017 Инструмент режущий Стр. K71 0628 Lab2u

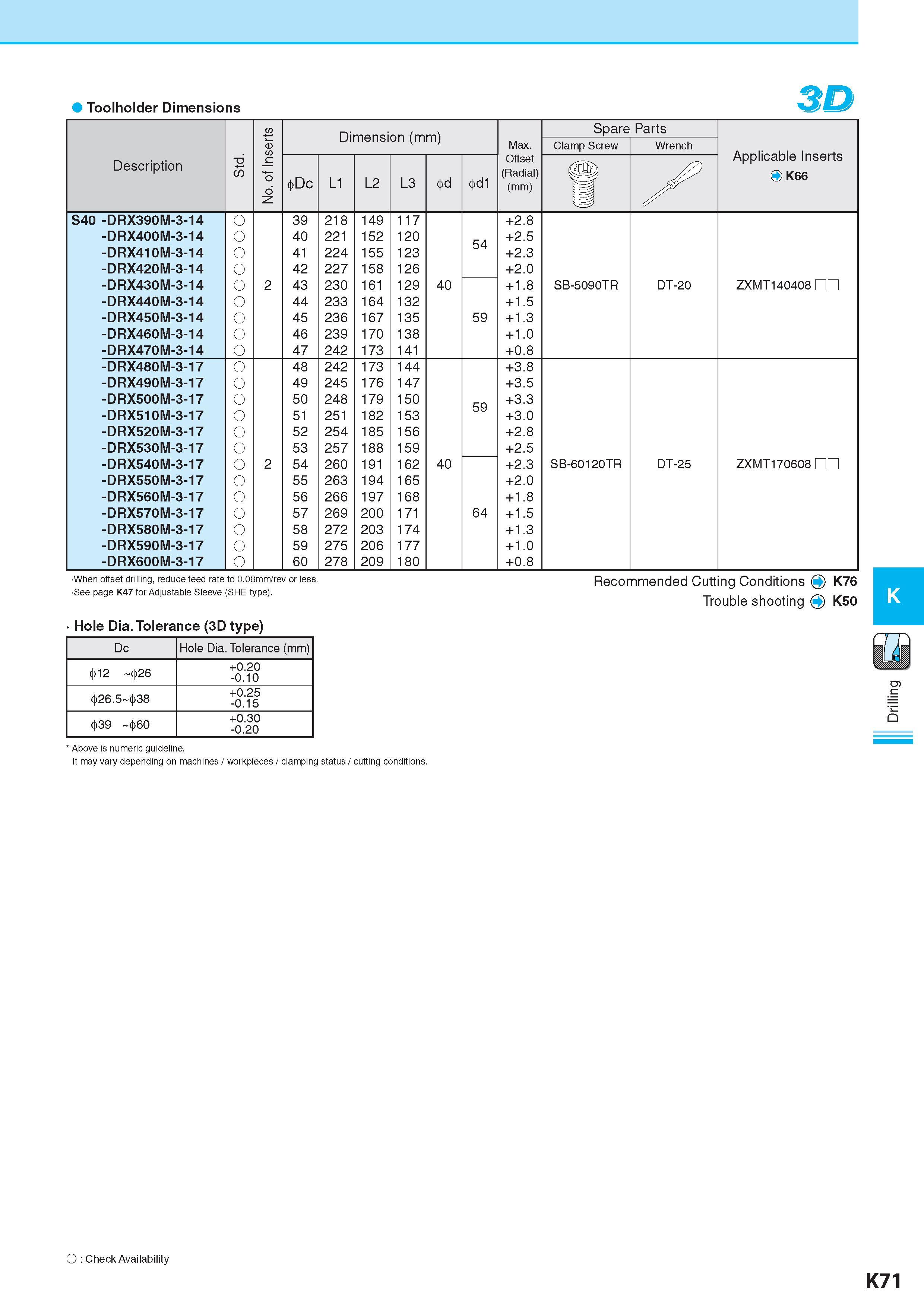

Toolholder Dimensions D No. of Inserts Dimension (mm) Размеры в мм Spare Parts Max. Clamp Screw Wrench Applicable Inserts O K66 Description Обозначение T3 W Dc L1 L2 L3 d d1 Offset (Radial) (mm) fjf S40 -DRX390M-3-14 O 39 218 149 117 +2.8 -DRX400M-3-14 O 40 221 152 120 54 +2.5 -DRX410M-3-14 O 41 224 155 123 +2.3 -DRX420M-3-14 O 42 227 158 126 +2.0 -DRX430M-3-14 O 2 43 230 161 129 40 + 1.8 SB-5090TR DT-20 ZXMT140408 -DRX440M-3-14 O 44 233 164 132 + 1.5 -DRX450M-3-14 O 45 236 167 135 59 + 1.3 -DRX460M-3-14 O 46 239 170 138 +1.0 -DRX470M-3-14 O 47 242 173 141 +0.8 -DRX480M-3-17 O 48 242 173 144 +3.8 -DRX490M-3-17 O 49 245 176 147 +3.5 -DRX500M-3-17 O 50 248 179 150 59 +3.3 -DRX510M-3-17 O 51 251 182 153 +3.0 -DRX520M-3-17 O 52 254 185 156 +2.8 -DRX530M-3-17 O 53 257 188 159 +2.5 -DRX540M-3-17 O 2 54 260 191 162 40 +2.3 SB-60120TR DT-25 ZXMT170608 -DRX550M-3-17 O 55 263 194 165 +2.0 -DRX560M-3-17 O 56 266 197 168 +1.8 -DRX570M-3-17 -DRX580M-3-17 -DRX590M-3-17 O 57 58 59 269 272 275 200 203 206 171 174 177 64 +1.5 +1.3 +1.0 -DRX600M-3-17 O 60 278 209 180 +0.8 When offset drilling, reduce feed rate to 0.08mm/rev or less. See page K47 for Adjustable Sleeve (SHE type). Hole Dia. Tolerance (3D type) Recommended Cutting Conditions Рекомендованные режимы резания на станках O K76 Trouble shooting Q K50 Dc Hole Dia. Tolerance (mm) 12 26 +0.20 -0.10 26.5 38 +0.25 -0.15 39 60 +0.30 -0.20 K Above is numeric guideline. It may vary depending on machines / workpieces / clamping status / cutting conditions. O : Check Availability K71 Drilling
