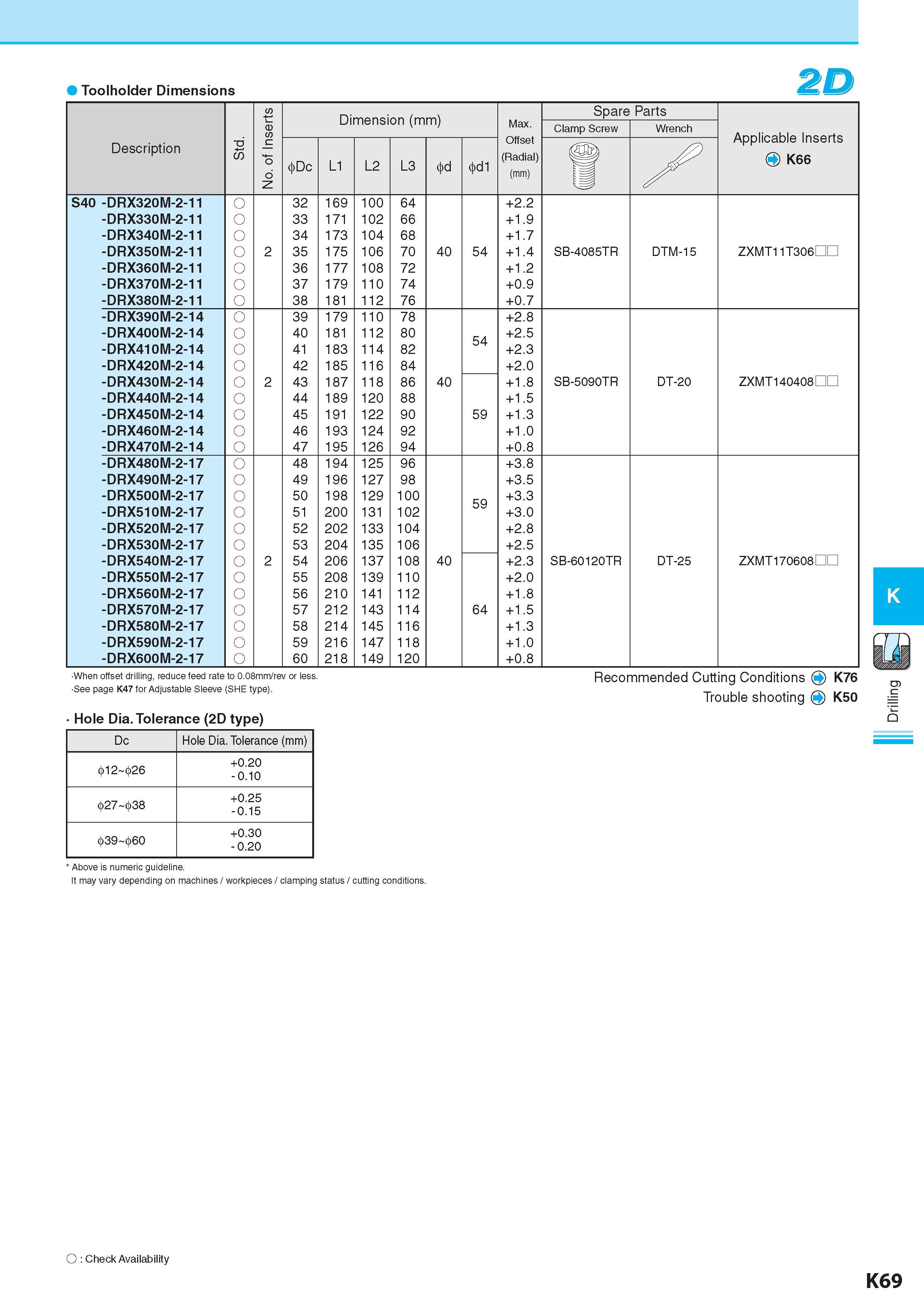

Toolholder Dimensions 2D No. of Inserts Dimension (mm) Размеры в мм Max. Spare Parts Clamp Screw Wrench Applicable Inserts O K66 Description Обозначение td. 55 Dc L1 L2 L3 d 0d1 Offset (Radial) (mm) Ilf S40 -DRX320M-2-11 -DRX330M-2-11 32 33 169 171 100 102 64 66 +2.2 +1.9 -DRX340M-2-11 O 34 173 104 68 +1.7 -DRX350M-2-11 O 2 35 175 106 70 40 54 +1.4 SB-4085TR DTM-15 ZXMT11T306 -DRX360M-2-11 O 36 177 108 72 +1.2 -DRX370M-2-11 O 37 179 110 74 +0.9 -DRX380M-2-11 O 38 181 112 76 +0.7 -DRX390M-2-14 O 39 179 110 78 +2.8 -DRX400M-2-14 O 40 181 112 80 54 +2.5 -DRX410M-2-14 O 41 183 114 82 +2.3 -DRX420M-2-14 O 42 185 116 84 +2.0 -DRX430M-2-14 O 2 43 187 118 86 40 +1.8 SB-5090TR DT-20 ZXMT140408 -DRX440M-2-14 O 44 189 120 88 +1.5 -DRX450M-2-14 O 45 191 122 90 59 +1.3 -DRX460M-2-14 O 46 193 124 92 +1.0 -DRX470M-2-14 O 47 195 126 94 +0.8 -DRX480M-2-17 O 48 194 125 96 +3.8 -DRX490M-2-17 O 49 196 127 98 +3.5 -DRX500M-2-17 O 50 198 129 100 59 +3.3 -DRX510M-2-17 O 51 200 131 102 +3.0 -DRX520M-2-17 -DRX530M-2-17 52 53 202 204 133 135 104 106 +2.8 +2.5 -DRX540M-2-17 O 2 54 206 137 108 40 +2.3 SB-60120TR DT-25 ZXMT170608 -DRX550M-2-17 O 55 208 139 110 +2.0 -DRX560M-2-17 O 56 210 141 112 +1.8 -DRX570M-2-17 O 57 212 143 114 64 +1.5 -DRX580M-2-17 O 58 214 145 116 +1.3 -DRX590M-2-17 O 59 216 147 118 +1.0 -DRX600M-2-17 O 60 218 149 120 +0.8 When offset drilling, reduce feed rate See page K47 for Adjustable Sleeve to 0.08mm/rev c (SHE type). Recommended Cutting Conditions Рекомендованные режимы резания на станках O K76 Trouble shooting Q K50 Hole Dia. Tolerance (2D type) Dc Hole Dia. Tolerance (mm) +0.20 12- 26 - 0.10 +0.25 27- 38 - 0.15 +0.30 39- 60 - 0.20 Above is numeric guideline. It may vary depending on machines / workpieces / clamping status / cutting conditions. O : Check Availability K69 Drilling
