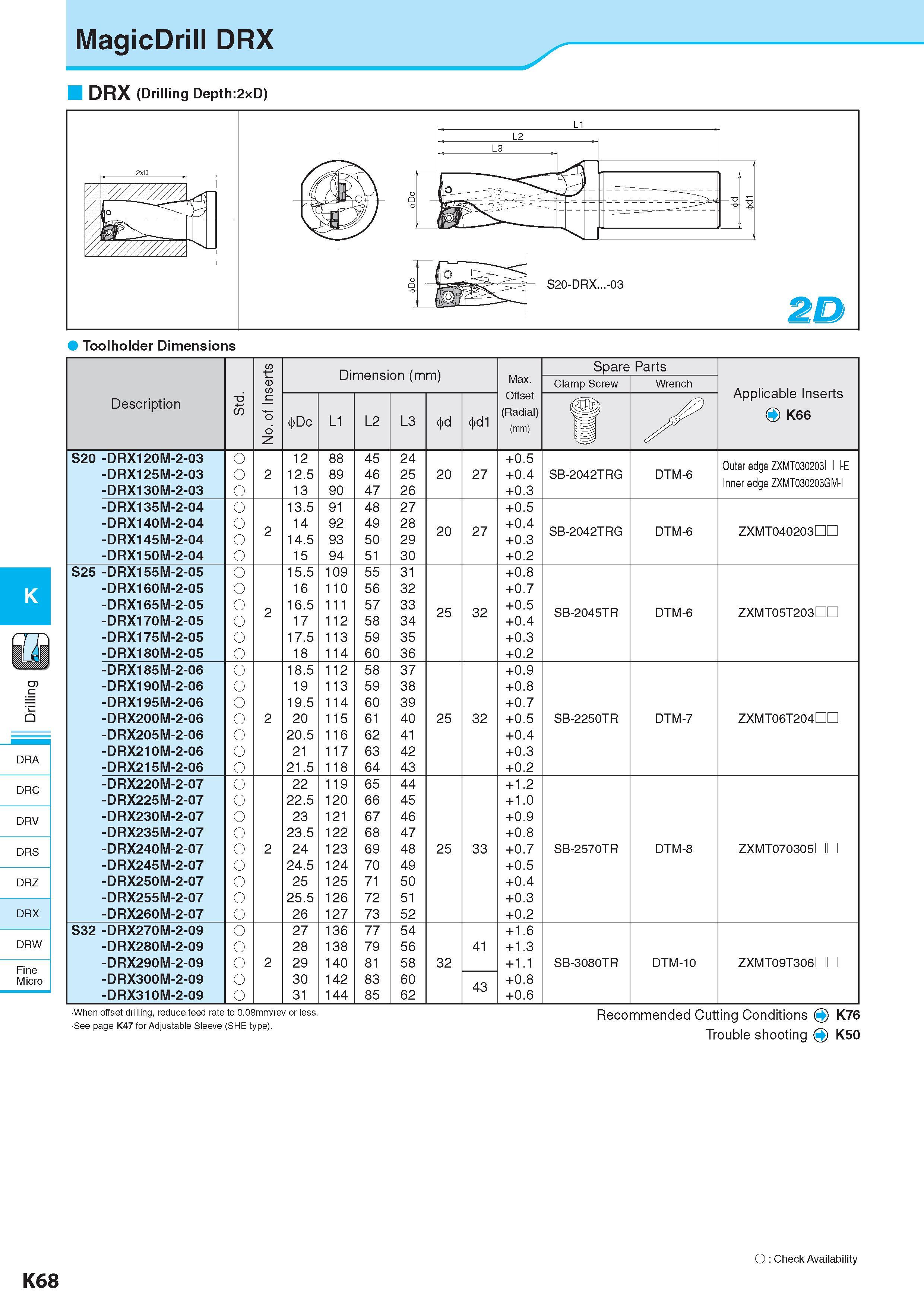

MagicDrill DRX DRX (Drilling Depth:2xD) Toolholder Dimensions K DRA DRC DRV DRS DRZ DRX DRW Fine Micro No. of Inserts Dimension (mm) Размеры в мм Spare Parts Max. Clamp Screw Wrench Applicable Inserts O K66 Description Обозначение T3 55 Dc L1 L2 L3 d d1 Offset (Radial) (mm) S20 -DRX120M-2-03 O 12 88 45 24 +0.5 Outer edge ZXMT030203 DD-E Inner edge ZXMT030203GM-I -DRX125M-2-03 O 2 12.5 89 46 25 20 27 +0.4 SB-2042TRG DTM-6 -DRX130M-2-03 O 13 90 47 26 +0.3 -DRX135M-2-04 O 13.5 91 48 27 +0.5 -DRX140M-2-04 O 2 14 92 49 28 20 27 +0.4 SB-2042TRG DTM-6 ZXMT040203 -DRX145M-2-04 O 14.5 93 50 29 +0.3 -DRX150M-2-04 O 15 94 51 30 +0.2 S25 -DRX155M-2-05 O 15.5 109 55 31 +0.8 -DRX160M-2-05 O 16 110 56 32 +0.7 -DRX165M-2-05 O 2 16.5 111 57 33 25 32 +0.5 SB-2045TR DTM-6 ZXMT05T203 -DRX170M-2-05 O 17 112 58 34 +0.4 -DRX175M-2-05 O 17.5 113 59 35 +0.3 -DRX180M-2-05 O 18 114 60 36 +0.2 -DRX185M-2-06 O 18.5 112 58 37 +0.9 -DRX190M-2-06 O 19 113 59 38 +0.8 -DRX195M-2-06 O 19.5 114 60 39 +0.7 -DRX200M-2-06 O 2 20 115 61 40 25 32 +0.5 SB-2250TR DTM-7 ZXMT06T204 -DRX205M-2-06 O 20.5 116 62 41 +0.4 -DRX210M-2-06 O 21 117 63 42 +0.3 -DRX215M-2-06 O 21.5 118 64 43 +0.2 -DRX220M-2-07 O 22 119 65 44 +1.2 -DRX225M-2-07 O 22.5 120 66 45 +1.0 -DRX230M-2-07 O 23 121 67 46 +0.9 -DRX235M-2-07 O 23.5 122 68 47 +0.8 -DRX240M-2-07 O 2 24 123 69 48 25 33 +0.7 SB-2570TR DTM-8 ZXMT070305 -DRX245M-2-07 O 24.5 124 70 49 +0.5 -DRX250M-2-07 O 25 125 71 50 +0.4 -DRX255M-2-07 O 25.5 126 72 51 +0.3 -DRX260M-2-07 O 26 127 73 52 +0.2 S32 -DRX270M-2-09 O 27 136 77 54 +1.6 -DRX280M-2-09 O 28 138 79 56 41 +1.3 -DRX290M-2-09 O 2 29 140 81 58 32 +1.1 SB-3080TR DTM-10 ZXMT09T306 -DRX300M-2-09 O 30 142 83 60 43 +0.8 -DRX310M-2-09 O 31 144 85 62 +0.6 When offset crai reduce feed rate to 0.08mm/rev or less. Recommended Cutting Conditions Рекомендованные режимы резания на станках O K76 See page K47 for Adjustable Sleeve (SHE type). Trouble shooting (j K50 K68 O : Check Availability
