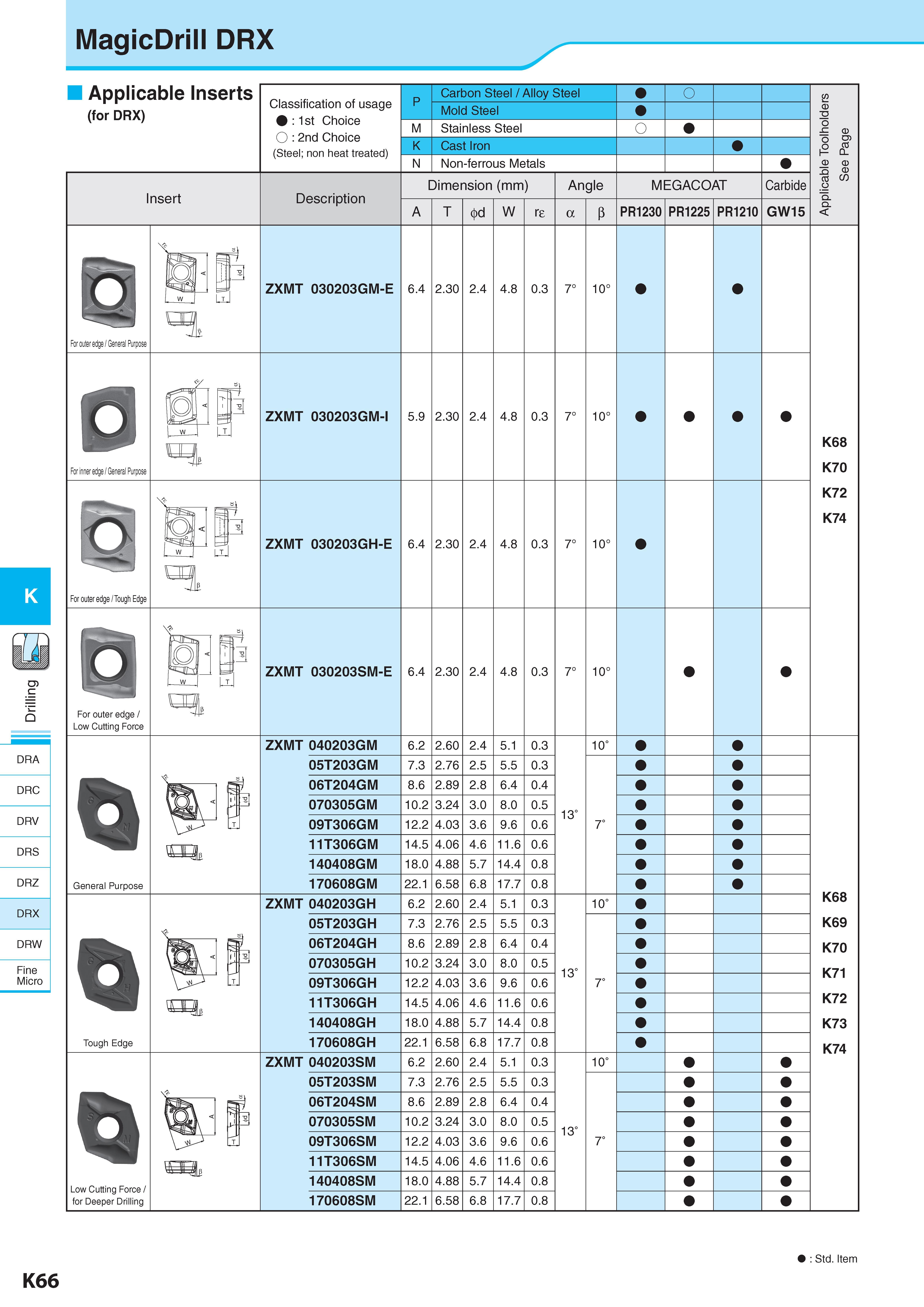

K DRA DRC DRV DRS DRZ DRX DRW Fine Micro MagicDrill DRX Applicable Inserts (for DRX) Insert Classification of usage : 1st Choice O : 2nd Choice (Steel; non heat treated) Description Обозначение M K Carbon Steel / Alloy Steel Mold Steel Stainless Steel Cast Iron N Non-ferrous Metals Dimension (mm) Размеры в мм A T 4>d W re Angle MEGACOAT PR1230 PR1225 PR1210 Carbide GW15 e ld ol £ aS c o For outer edge/Tough Edge For outer edge / Low Cutting Force ZXMT 030203GM-E 6.4 2.30 2.4 4.8 0.3 10° ZXMT 030203GM-I 5.9 2.30 2.4 4.8 0.3 7° 10° ZXMT 030203GH-E 6.4 2.30 2.4 4.8 0.3 10° ZXMT 030203SM-E 6.4 2.30 2.4 4.8 0.3 10° K68 K70 K72 K74 ZXMT 040203GM 6.2 2.60 2.4 5.1 0.3 10° General Purpose 05T203GM 7.3 2.76 2.5 5.5 0.3 06T204GM 8.6 2.89 2.8 6.4 0.4 070305GM 10.2 3.24 3.0 8.0 0.5 09T306GM 12.2 4.03 3.6 9.6 0.6 13° 11T306GM 14.5 4.06 4.6 11.6 0.6 140408GM 18.0 4.88 5.7 14.4 0.8 170608GM 22.1 6.58 6.8 17.7 0.8 ZXMT 040203GH 6.2 2.60 2.4 5.1 0.3 10° Tough Edge 05T203GH 7.3 2.76 2.5 5.5 0.3 06T204GH 8.6 2.89 2.8 6.4 0.4 070305GH 10.2 3.24 3.0 8.0 0.5 09T306GH 12.2 4.03 3.6 9.6 0.6 13° 11T306GH 14.5 4.06 4.6 11.6 0.6 140408GH 18.0 4.88 5.7 14.4 0.8 170608GH 22.1 6.58 6.8 17.7 0.8 ZXMT 040203SM 6.2 2.60 2.4 5.1 0.3 10° Low Cutting Force / for Deeper Drilling 05T203SM 7.3 2.76 2.5 5.5 0.3 06T204SM 8.6 2.89 2.8 6.4 0.4 070305SM 10.2 3.24 3.0 8.0 0.5 09T306SM 12.2 4.03 3.6 9.6 0.6 13° 11T306SM 14.5 4.06 4.6 11.6 0.6 140408SM 18.0 4.88 5.7 14.4 0.8 170608SM 22.1 6.58 6.8 17.7 0.8 K68 K69 K70 K71 K72 K73 K74 P 7 7 7 T : Std. Item Стандартная позиция K66
