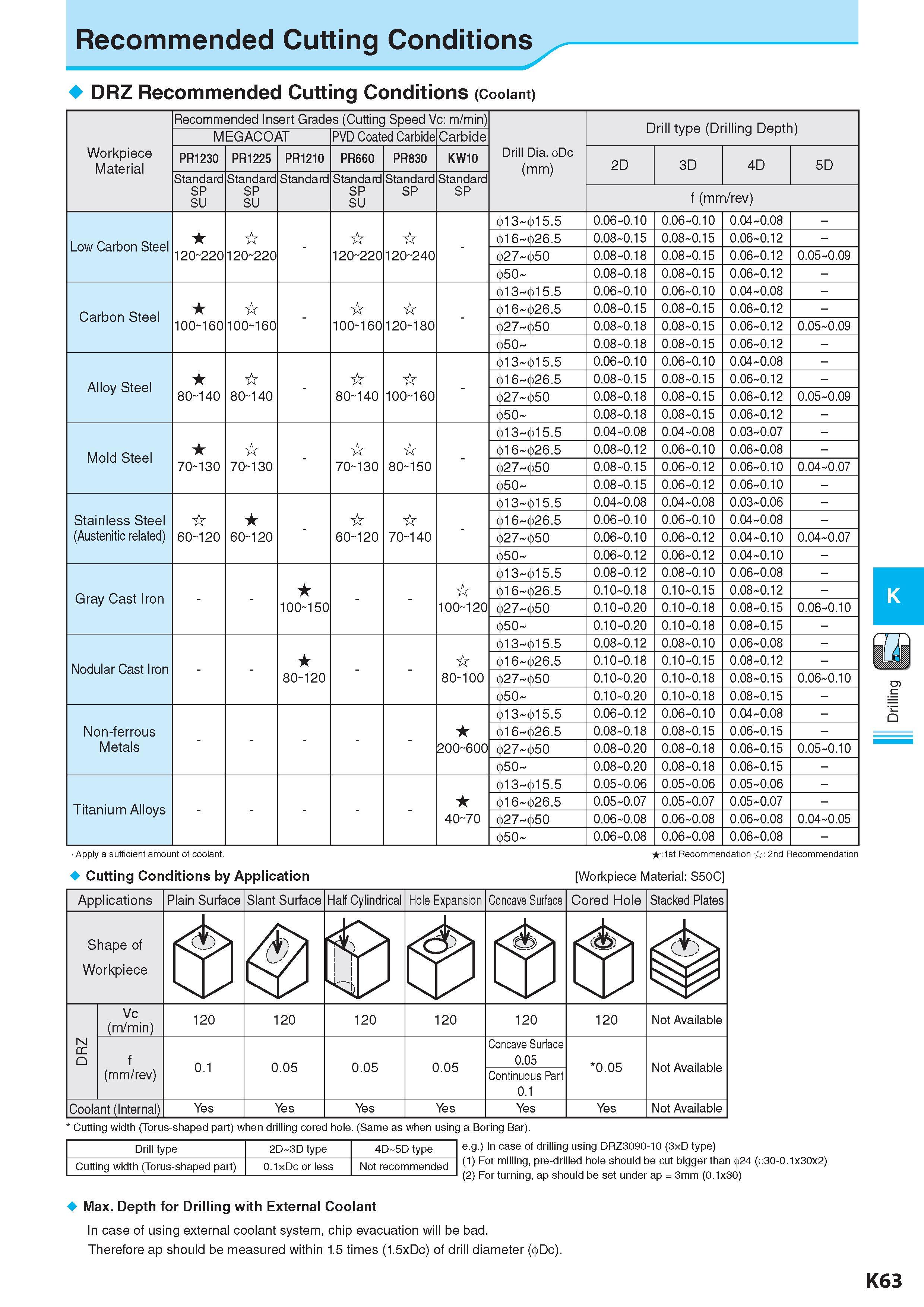

Recommended Cutting Conditions Рекомендованные режимы резания на станках DRZ Recommended Cutting Conditions Рекомендованные режимы резания на станках (Coolant) Workpiece Material Обрабатываемый материал Recommended Insert Grades Cutting Speed Vc (m/min) Скорость резания (м/мин) Drill Dia. Dc (mm) Drill type (Drilling Depth) MEGACOAT PVD Coated Carbide Carbide PR1230 PR1225 PR1210 PR660 PR830 KW10 2D 3D 4D 5D Standard SP SU Standard SP SU Standard Standard SP SU Standard SP Standard SP f (mm/rev) Low Carbon Steel 120 220 120 220 - 120 220 120 240 - 13- 15.5 0.06-0.10 0.06-0.10 0.04-0.08 - 16-426.5 0.08-0.15 0.08-0.15 0.06-0.12 - 27- 50 0.08-0.18 0.08-0.15 0.06-0.12 0.05-0.09 50 0.08-0.18 0.08-0.15 0.06-0.12 - Carbon Steel 100 160 100 160 - 100 160 120 180 - 13- 15.5 0.06-0.10 0.06-0.10 0.04-0.08 - 16- 26.5 0.08-0.15 0.08-0.15 0.06-0.12 - 27- 50 0.08-0.18 0.08-0.15 0.06-0.12 0.05-0.09 50 0.08-0.18 0.08-0.15 0.06-0.12 - Alloy Steel 80 140 80 140 - 80 140 100 160 - 13- 15.5 0.06-0.10 0.06-0.10 0.04-0.08 - 16- 26.5 0.08-0.15 0.08-0.15 0.06-0.12 - 27- 50 0.08-0.18 0.08-0.15 0.06-0.12 0.05-0.09 50- 0.08-0.18 0.08-0.15 0.06-0.12 - Mold Steel 70 130 70 130 - 70 130 80 150 - 13- 15.5 0.04-0.08 0.04-0.08 0.03-0.07 - 16- 26.5 0.08-0.12 0.06-0.10 0.06-0.08 - 27- 50 0.08-0.15 0.06-0.12 0.06-0.10 0.04-0.07 50- 0.08-0.15 0.06-0.12 0.06-0.10 - Stainless Steel (Austenitic related) 60 120 60 120 - 60 120 70 140 - 13- 15.5 0.04-0.08 0.04-0.08 0.03-0.06 - 16- 26.5 0.06-0.10 0.06-0.10 0.04-0.08 - 27- 50 0.06-0.10 0.06-0.12 0.04-0.10 0.04-0.07 50- 0.06-0.12 0.06-0.12 0.04-0.10 - Gray Cast Iron 100 150 100 120 13- 15.5 0.08-0.12 0.08-0.10 0.06-0.08 - 16- 26.5 0.10-0.18 0.10-0.15 0.08-0.12 - 27- 50 0.10-0.20 0.10-0.18 0.08-0.15 0.06-0.10 50- 0.10-0.20 0.10-0.18 0.08-0.15 - Nodular Cast Iron 80 120 80 100 13- 15.5 0.08-0.12 0.08-0.10 0.06-0.08 - 16- 26.5 0.10-0.18 0.10-0.15 0.08-0.12 - 27- 50 0.10-0.20 0.10-0.18 0.08-0.15 0.06-0.10 50- 0.10-0.20 0.10-0.18 0.08-0.15 - Non-ferrous Metals - 200 600 13- 15.5 0.06-0.12 0.06-0.10 0.04-0.08 - 16- 26.5 0.08-0.18 0.08-0.15 0.06-0.15 - 27- 50 0.08-0.20 0.08-0.18 0.06-0.15 0.05-0.10 50- 0.08-0.20 0.08-0.18 0.06-0.15 - Titanium Alloys - 40 70 13- 15.5 0.05-0.06 0.05-0.06 0.05-0.06 - 16- 26.5 0.05-0.07 0.05-0.07 0.05-0.07 - 27- 50 0.06-0.08 0.06-0.08 0.06-0.08 0.04-0.05 50- 0.06-0.08 0.06-0.08 0.06-0.08 - Apply a sufficient amount of coolant. Cutting Conditions by Application :1st Recommendation : 2nd Recommendation Workpiece Material: S50C Cutting width (Torus-shaped part) when drilling cored hole. (Same as when using a Boring Bar). e.g.) In case of drilling using DRZ3090-10 (3xD type) (1) For milling, pre-drilled hole should be cut bigger than 24 ( 30-0.1x30x2) (2) For turning, ap should be set under ap = 3mm (0.1x30) Drill type 2D-3D type 4D-5D type Cutting width (Torus-shaped part) 0.1xDc or less Not recommended Max. Depth for Drilling with External Coolant In case of using external coolant system, chip evacuation will be bad. Therefore ap should be measured within 1.5 times (1.5xDc) of drill diameter ( Dc). K63 Drilling
