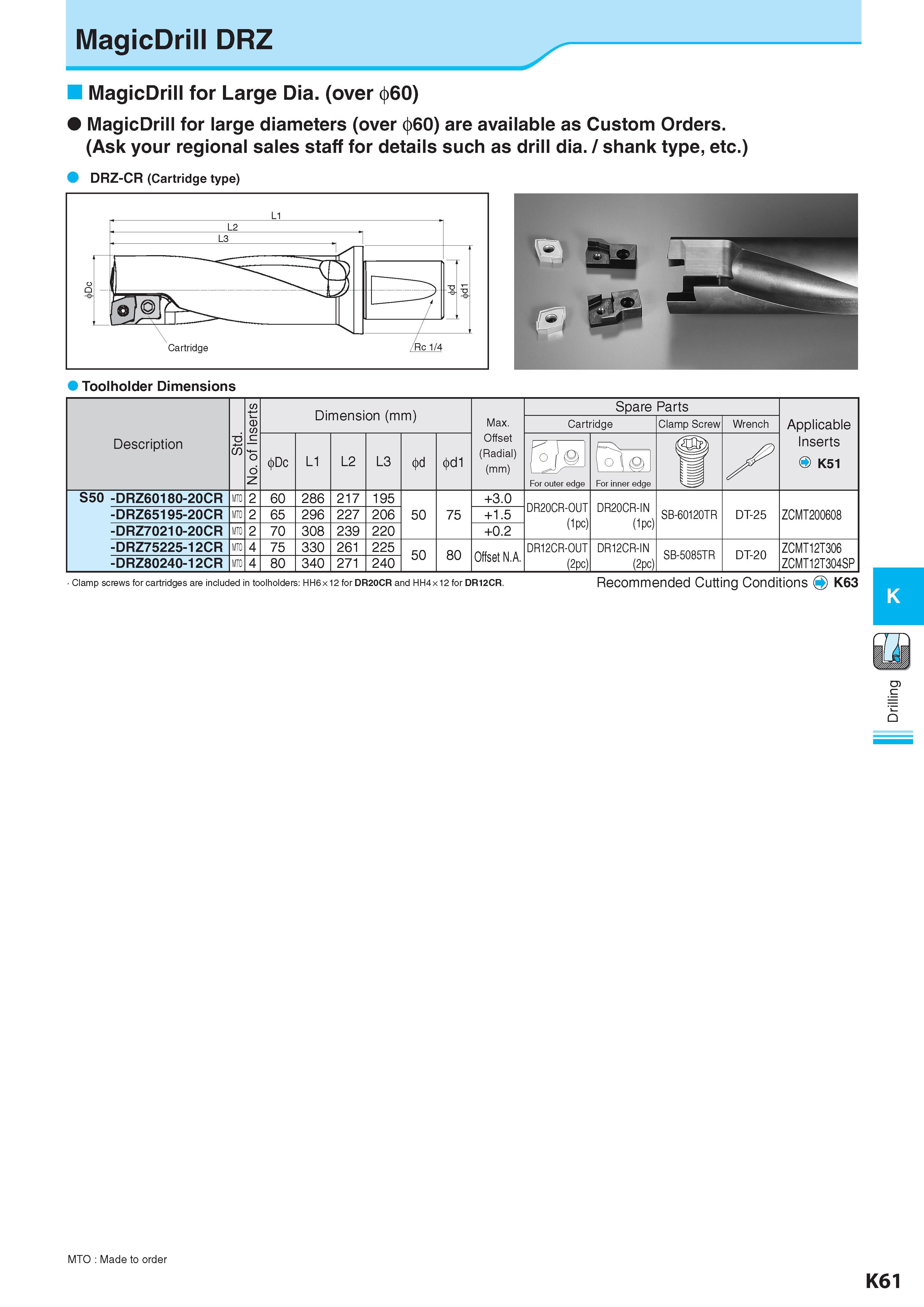

MagicDrill DRZ MagicDrill for Large Dia. (over 60) MagicDrill for large diameters (over 4>60) are available as Custom Orders. (Ask your regional sales staff for details such as drill dia. / shank type, etc.) DRZ-CR (Cartridge type) Description Обозначение Dimension (mm) Размеры в мм 0Dc L1 L2 L3 0d1 Max. Offset (Radial) (mm) Spare Parts Cartridge O For outer edge For inner edge Clamp Screw Wrench Applicable Inserts O K51 S50 -DRZ60180-20CR MTC 60 286 217 195 +3.0 -DRZ65195-20CR MTC 65 296 227 206 50 75 +1.5 -DRZ70210-20CR MTC 70 308 239 220 +0.2 DR20CR-OUT (1pc) DR20CR- (1pc) SB-60120TR DT-25 ZCMT200608 -DRZ75225-12CR MTC 75 330 261 225 -DRZ80240-12CR MTC 80 340 271 240 50 80 Offset N.A. DR12CR-OUT (2pc) DR12CR-IN (2pc) SB-5085TR DT-20 ZCMT12T306 ZCMT12T304SP Clamp screws for cartridges are included in toolholders: HH6x12 for DR20CR and HH4x12 for DR12CR. Recommended Cutting Conditions Рекомендованные режимы резания на станках O K63 2 2 2 4 4 MTO : Made to order K61 Drilling
