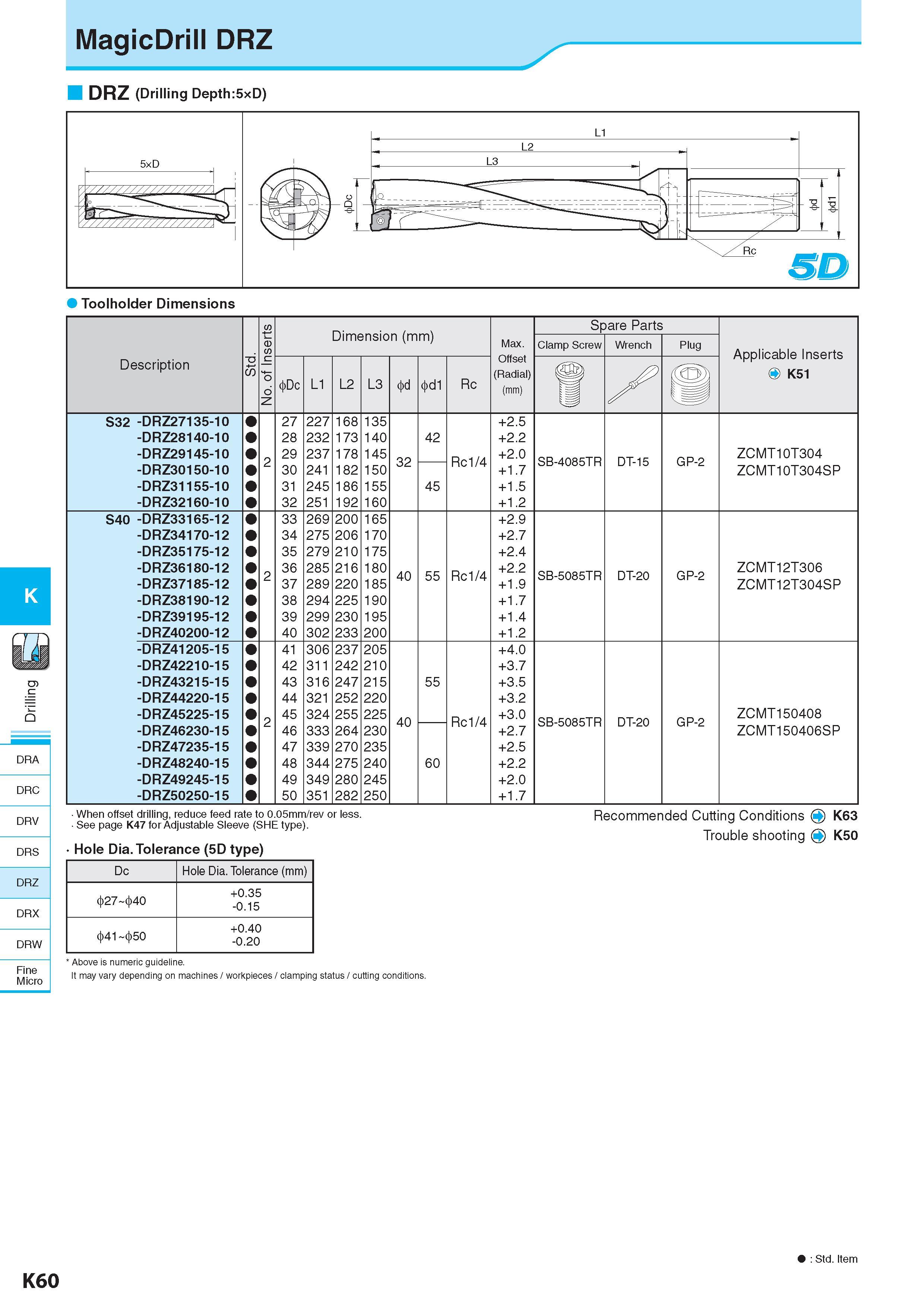

MagicDrill DRZ K DRA DRC DRV DRS DRZ DRX DRW Fine Micro DRZ (Drilling Depth:5xD) No. of Inserts Spare Parts E n o w n e E Max. Clamp Screw Wrench Plug Applicable Inserts O K51 Description Обозначение -6 55 Dc L1 L2 L3 d d1 Rc Offset (Radial) (mm) u X , j S32 -DRZ27135-10 -DRZ28140-10 27 28 227 232 168 173 135 140 42 +2.5 +2.2 -DRZ29145-10 2 29 237 178 145 32 Rc1/4 +2.0 SB-4085TR DT-15 GP-2 ZCMT10T304 -DRZ30150-10 30 241 182 150 +1.7 ZCMT10T304SP -DRZ31155-10 31 245 186 155 45 +1.5 -DRZ32160-10 32 251 192 160 +1.2 S40 -DRZ33165-12 -DRZ34170-12 -DRZ35175-12 33 34 35 269 275 279 200 206 210 165 170 175 +2.9 +2.7 +2.4 -DRZ36180-12 2 36 285 216 180 40 55 Rc1/4 +2.2 SB-5085TR DT-20 GP-2 ZCMT12T306 -DRZ37185-12 37 289 220 185 +1.9 ZCMT12T304SP -DRZ38190-12 38 294 225 190 +1.7 -DRZ39195-12 39 299 230 195 +1.4 -DRZ40200-12 40 302 233 200 +1.2 -DRZ41205-15 41 306 237 205 +4.0 -DRZ42210-15 42 311 242 210 +3.7 -DRZ43215-15 43 316 247 215 55 +3.5 -DRZ44220-15 44 321 252 220 +3.2 -DRZ45225-15 2 45 324 255 225 40 Rc1/4 +3.0 SB-5085TR DT-20 GP-2 ZCMT150408 -DRZ46230-15 46 333 264 230 +2.7 ZCMT150406SP -DRZ47235-15 47 339 270 235 +2.5 -DRZ48240-15 48 344 275 240 60 +2.2 -DRZ49245-15 49 349 280 245 +2.0 -DRZ50250-15 50 351 282 250 +1.7 When offset drilling, reduce feed rate to 0.05mm/rev or less. See page K47 for Adjustable Sleeve (SHE type). Hole Dia. Tolerance (5D type) Recommended Cutting Conditions Рекомендованные режимы резания на станках O K63 Trouble shooting Q K50 Dc Hole Dia. Tolerance (mm) 27 40 +0.35 -0.15 41 50 +0.40 -0.20 Above is numeric guideline. It may vary depending on machines / workpieces / clamping status / cutting conditions. K60 : Std. Item
