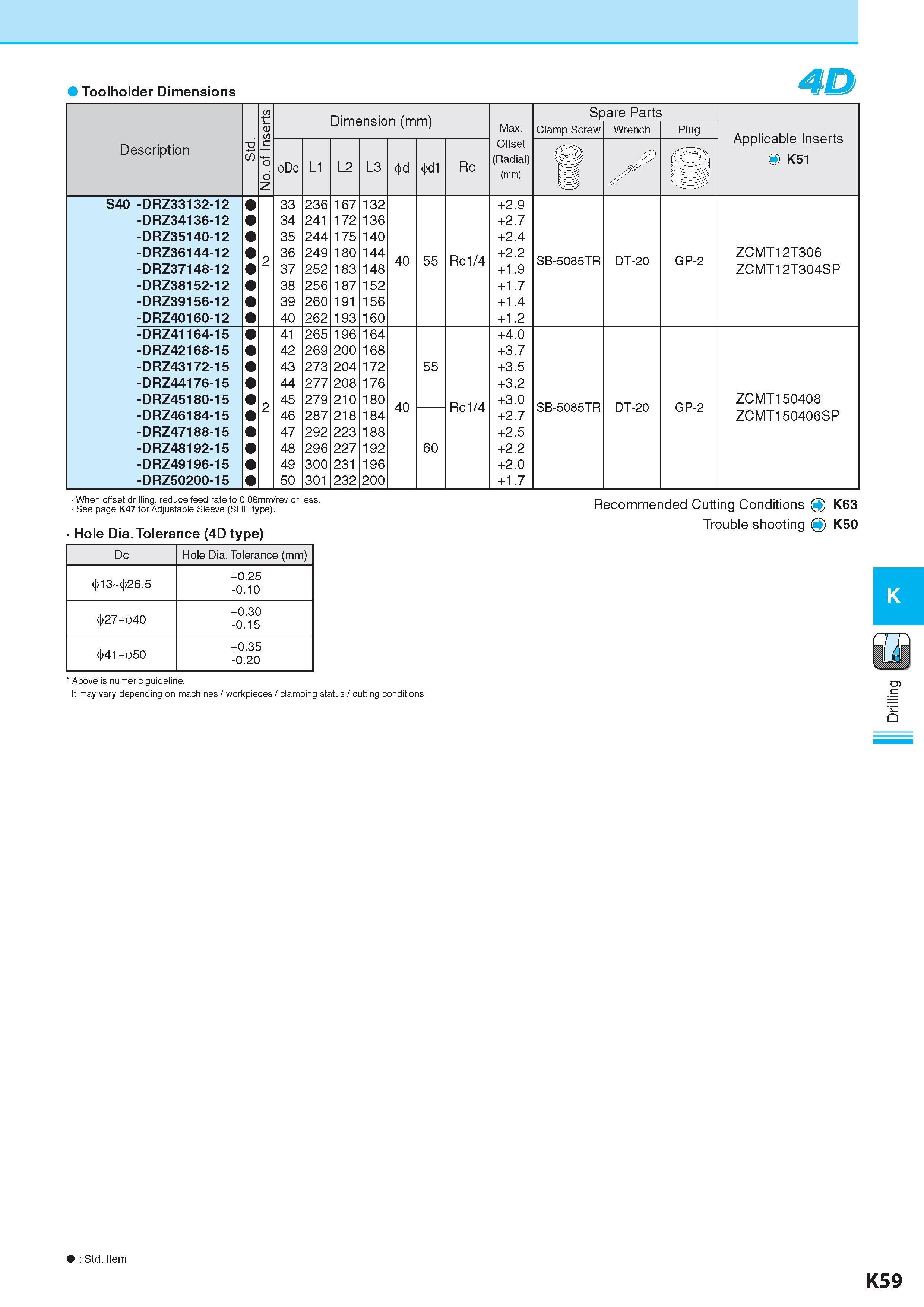

Toolholder Dimensions 4D No. of Inserts Dimension (mm) Размеры в мм Spare Parts Max. Clamp Screw Wrench Plug Applicable Inserts O K51 Description Обозначение td. 55 Dc L1 L2 L3 d d1 Rc Offset (Radial) (mm) u , I'lSDj S40 -DRZ33132-12 33 236 167 132 +2.9 -DRZ34136-12 -DRZ35140-12 34 35 241 244 172 175 136 140 +2.7 +2.4 -DRZ36144-12 2 36 249 180 144 40 55 Rc1/4 +2.2 SB-5085TR DT-20 GP-2 ZCMT12T306 -DRZ37148-12 37 252 183 148 +1.9 ZCMT12T304SP -DRZ38152-12 38 256 187 152 +1.7 -DRZ39156-12 39 260 191 156 +1.4 -DRZ40160-12 40 262 193 160 +1.2 -DRZ41164-15 41 265 196 164 +4.0 -DRZ42168-15 42 269 200 168 +3.7 -DRZ43172-15 43 273 204 172 55 +3.5 -DRZ44176-15 -DRZ45180-15 2 44 45 277 279 208 210 176 180 40 Rc1/4 +3.2 +3.0 SB-5085TR DT-20 GP-2 ZCMT150408 -DRZ46184-15 46 287 218 184 +2.7 ZCMT150406SP -DRZ47188-15 47 292 223 188 +2.5 -DRZ48192-15 -DRZ49196-15 48 49 296 300 227 231 192 196 60 +2.2 +2.0 -DRZ50200-15 50 301 232 200 +1.7 When offset drilling, reduce feed rate to 0.06mm/rev or less. See page K47 for Adjustable Sleeve (SHE type). Hole Dia. Tolerance (4D type) Recommended Cutting Conditions Рекомендованные режимы резания на станках O K63 Trouble shooting Q K50 Dc Hole Dia. Tolerance (mm) 13- 26.5 +0.25 -0.10 27- 40 +0.30 -0.15 41- 50 +0.35 -0.20 Above is numeric guideline. It may vary depending on machines / workpieces / clamping status / cutting conditions. : Std. Item Стандартная позиция K59 Drilling
