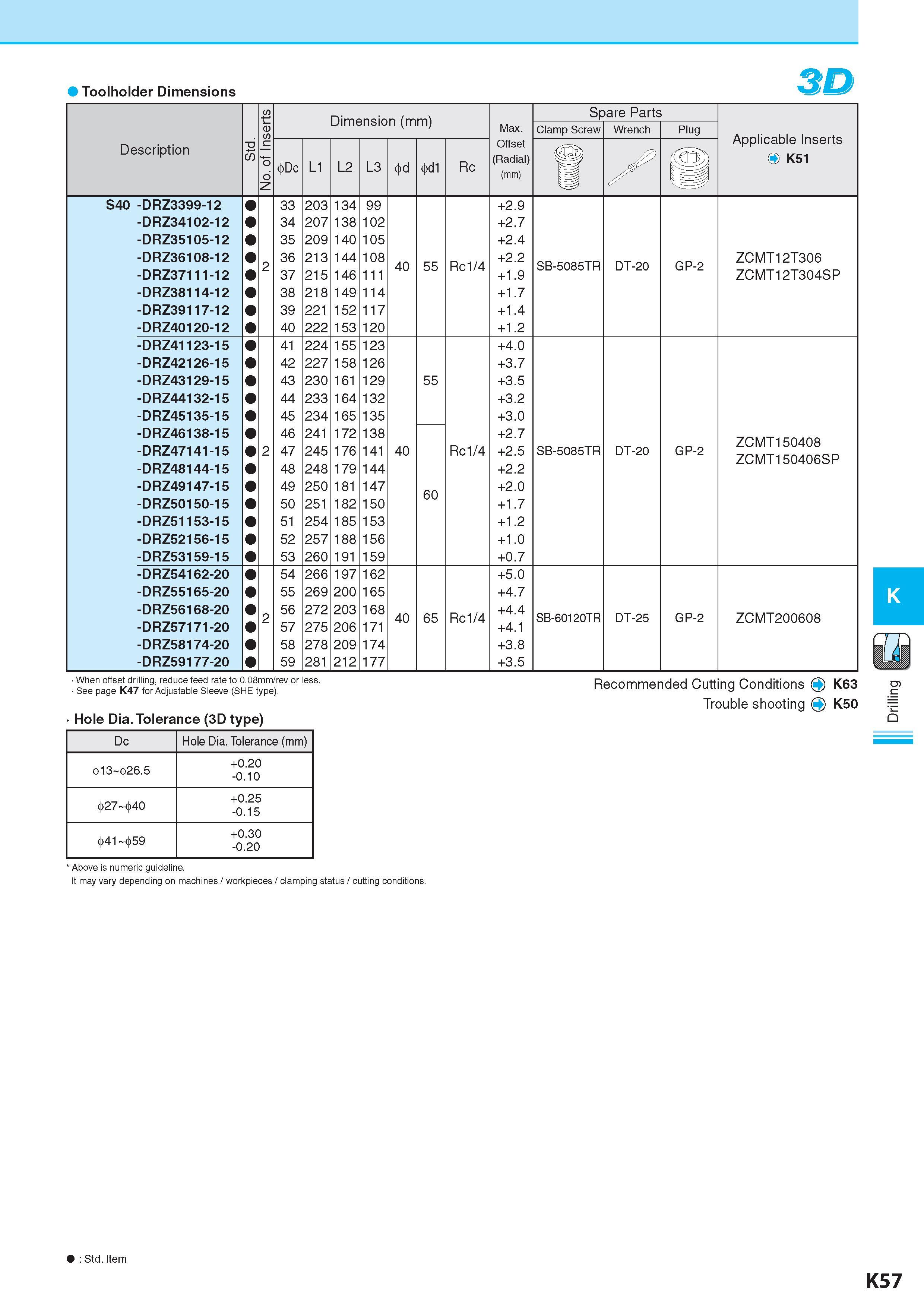

614 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.K57

Каталог KYOCERA 2017 Инструмент режущий Стр. K57 0614 Lab2u

Toolholder Dimensions D No. of Inserts Dimension (mm) Размеры в мм Spare Parts Max. Clamp Screw Wrench Plug Applicable Inserts O K51 Description Обозначение td. 55 Dc L1 L2 L3 d d1 Rc Offset (Radial) (mm) S40 -DRZ3399-12 33 203 134 99 +2.9 -DRZ34102-12 34 207 138 102 +2.7 -DRZ35105-12 35 209 140 105 +2.4 -DRZ36108-12 2 36 213 144 108 40 55 Rc1/4 +2.2 SB-5085TR DT-20 GP-2 ZCMT12T306 -DRZ37111-12 37 215 146 111 +1.9 ZCMT12T304SP -DRZ38114-12 38 218 149 114 +1.7 -DRZ39117-12 39 221 152 117 +1.4 -DRZ40120-12 40 222 153 120 +1.2 -DRZ41123-15 41 224 155 123 +4.0 -DRZ42126-15 42 227 158 126 +3.7 -DRZ43129-15 43 230 161 129 55 +3.5 -DRZ44132-15 44 233 164 132 +3.2 -DRZ45135-15 45 234 165 135 +3.0 -DRZ46138-15 46 241 172 138 +2.7 ZCMT150408 ZCMT150406SP -DRZ47141-15 2 47 245 176 141 40 Rc1/4 +2.5 SB-5085TR DT-20 GP-2 -DRZ48144-15 48 248 179 144 +2.2 -DRZ49147-15 49 250 181 147 60 +2.0 -DRZ50150-15 50 251 182 150 +1.7 -DRZ51153-15 51 254 185 153 +1.2 -DRZ52156-15 52 257 188 156 +1.0 -DRZ53159-15 53 260 191 159 +0.7 -DRZ54162-20 54 266 197 162 +5.0 -DRZ55165-20 55 269 200 165 +4.7 -DRZ56168-20 2 56 272 203 168 40 65 Rc1/4 +4.4 SB-60120TR DT-25 GP-2 ZCMT200608 -DRZ57171-20 57 275 206 171 +4.1 -DRZ58174-20 58 278 209 174 +3.8 -DRZ59177-20 59 281 212 177 +3.5 When offset drilling, reduce feed rate to 0.08mm/rev or l See page K47 for Adjustable Sleeve (SHE type). Hole Dia. Tolerance (3D type) Recommended Cutting Conditions Рекомендованные режимы резания на станках O K63 Trouble shooting Q K50 Dc Hole Dia. Tolerance (mm) +0.20 13- 26.5 -0.10 +0.25 27- 40 -0.15 +0.30 41- 59 -0.20 Above is numeric guideline. It may vary depending on machines / workpieces / clamping status / cutting conditions. : Std. Item Стандартная позиция K57 Drilling
