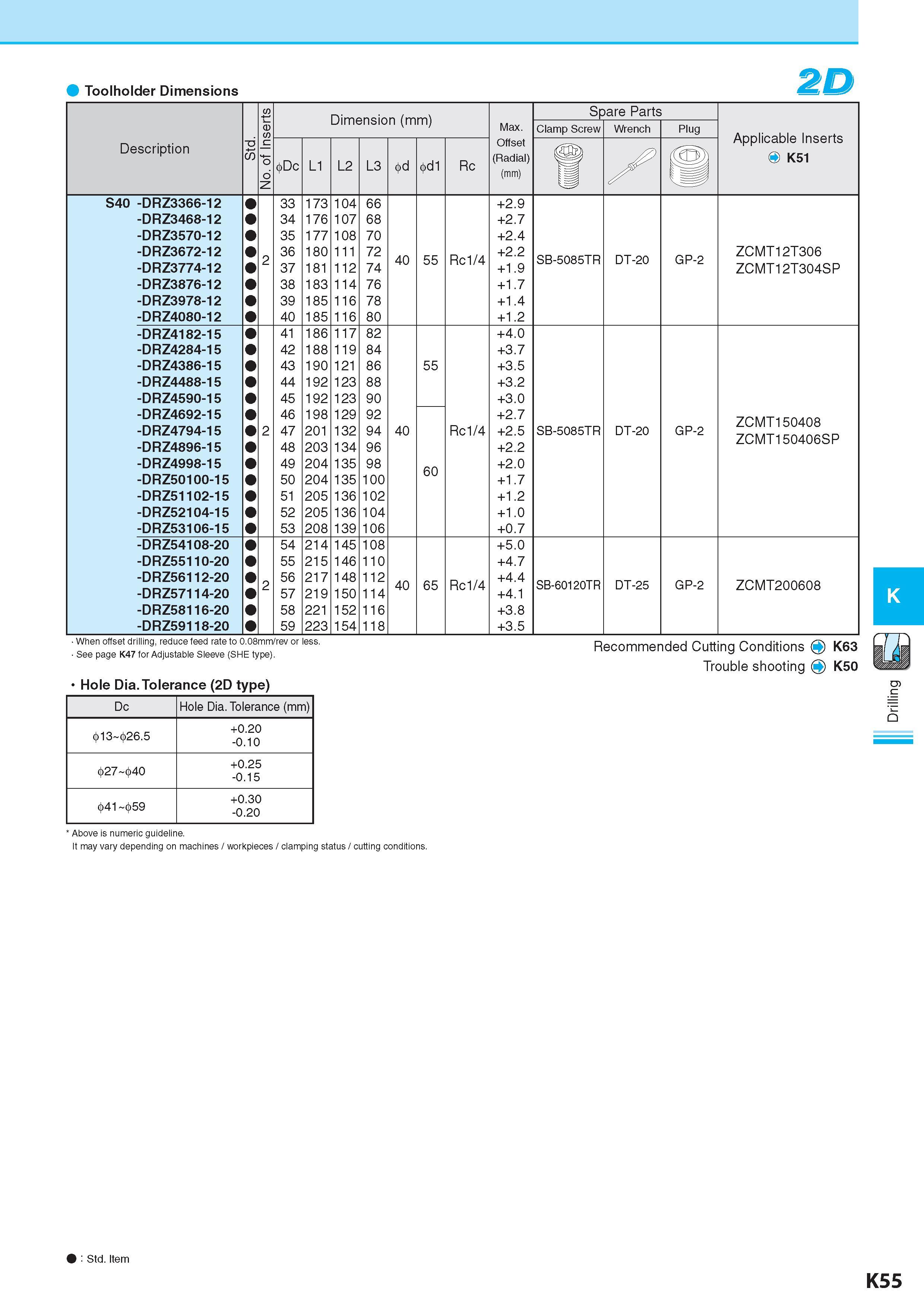

Toolholder Dimensions 2D No. of Inserts Dimension (mm) Размеры в мм Spare Parts Max. Clamp Screw Wrench Plug Applicable Inserts O K51 Description Обозначение td. w Dc L1 L2 L3 d 4>d1 Rc Offset (Radial) (mm) u , j( j S40 -DRZ3366-12 33 173 104 66 +2.9 -DRZ3468-12 34 176 107 68 +2.7 -DRZ3570-12 35 177 108 70 +2.4 -DRZ3672-12 2 36 180 111 72 40 55 Rc1/4 +2.2 SB-5085TR DT-20 GP-2 ZCMT12T306 -DRZ3774-12 37 181 112 74 +1.9 ZCMT12T304SP -DRZ3876-12 38 183 114 76 +1.7 -DRZ3978-12 39 185 116 78 +1.4 -DRZ4080-12 40 185 116 80 +1.2 -DRZ4182-15 41 186 117 82 +4.0 -DRZ4284-15 42 188 119 84 +3.7 -DRZ4386-15 43 190 121 86 55 +3.5 -DRZ4488-15 44 192 123 88 +3.2 -DRZ4590-15 45 192 123 90 +3.0 -DRZ4692-15 46 198 129 92 +2.7 ZCMT150408 ZCMT150406SP -DRZ4794-15 2 47 201 132 94 40 Rc1/4 +2.5 SB-5085TR DT-20 GP-2 -DRZ4896-15 48 203 134 96 +2.2 -DRZ4998-15 49 204 135 98 60 +2.0 -DRZ50100-15 50 204 135 100 +1.7 -DRZ51102-15 51 205 136 102 +1.2 -DRZ52104-15 52 205 136 104 +1.0 -DRZ53106-15 53 208 139 106 +0.7 -DRZ54108-20 54 214 145 108 +5.0 -DRZ55110-20 55 215 146 110 +4.7 -DRZ56112-20 2 56 217 148 112 40 65 Rc1/4 +4.4 SB-60120TR DT-25 GP-2 ZCMT200608 -DRZ57114-20 57 219 150 114 +4.1 -DRZ58116-20 58 221 152 116 +3.8 -DRZ59118-20 59 223 154 118 +3.5 When offset drilling, reduce feed rate to 0.08mm/rev or less. See page K47 for Adjustable Sleeve (SHE type). Hole Dia. Tolerance (2D type) Recommended Cutting Conditions Рекомендованные режимы резания на станках O K63 Trouble shooting Q K50 K Dc Hole Dia. Tolerance (mm) +0.20 13- 26.5 -0.10 +0.25 27- 40 -0.15 +0.30 41- 59 -0.20 Above is numeric guideline. It may vary depending on machines / workpieces / clamping status / cutting conditions. : Std. Item Стандартная позиция K55 Drilling
