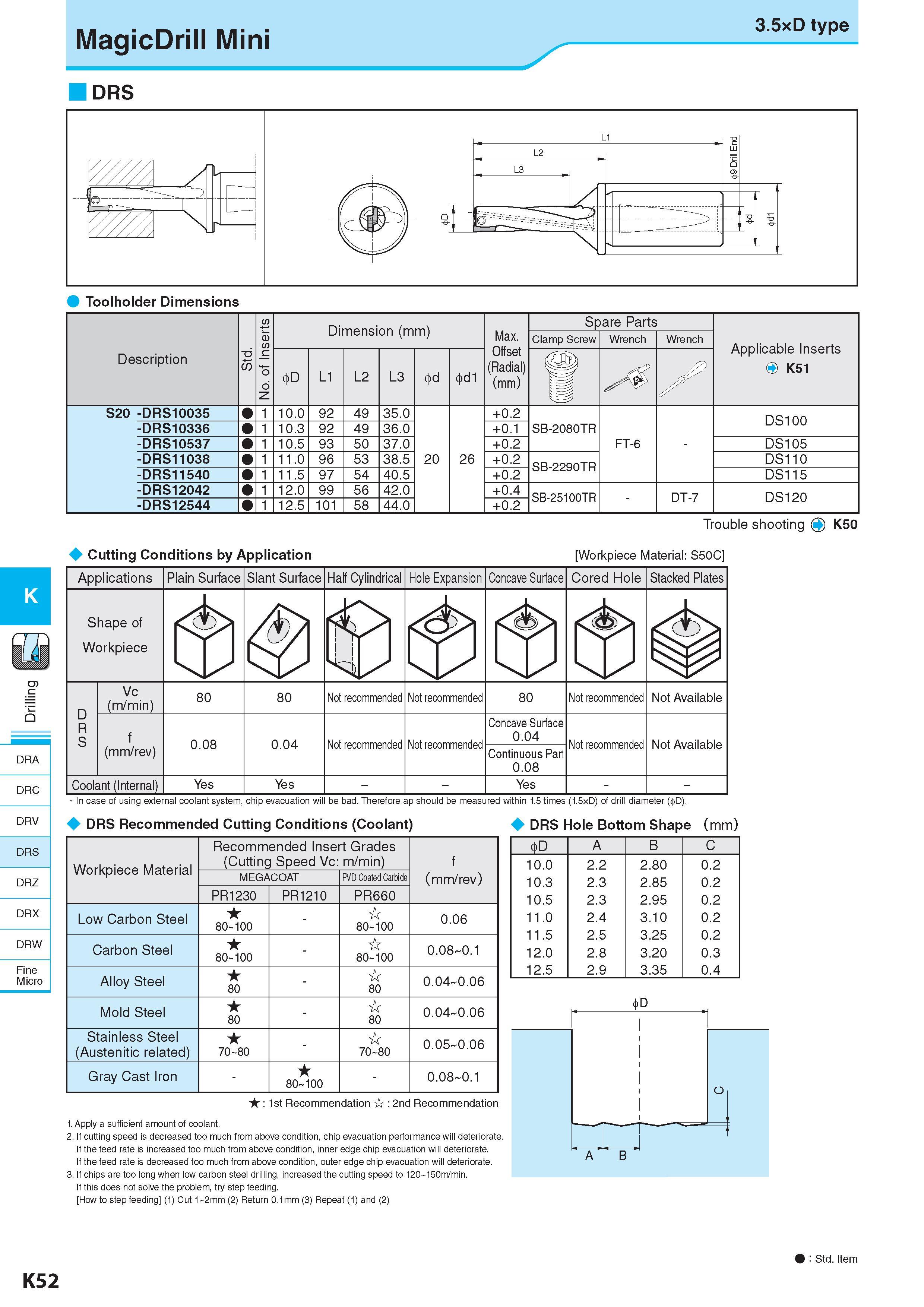

609 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.K52

Каталог KYOCERA 2017 Инструмент режущий Стр. K52 0609 Lab2u

K DRA DRC DRV DRS DRZ DRX DRW Fine Micro HI im- 3.5xD type MagicDrii Mini DRS Tooihoider Dimensions No. of Inserts Dimension (mm) Размеры в мм Max. Offset (Radial) (mm) Spare Parts -6 w Clamp Screw Wrench Wrench Applicable Inserts O K51 Description Обозначение D L1 L2 L3 d d1 u S20 -DRS10035 1 10.0 92 49 35.0 +0.2 DS100 -DRS10336 1 10.3 92 49 36.0 +0.1 SB-2080TR -DRS10537 1 10.5 93 50 37.0 +0.2 FT-6 - DS105 -DRS11038 1 11.0 96 53 38.5 20 26 +0.2 SB-2290TR DS110 -DRS11540 1 11.5 97 54 40.5 +0.2 DS115 -DRS12042 1 12.0 99 56 42.0 +0.4 SB-25100TR DT-7 DS120 -DRS12544 1 12.5 101 58 44.0 +0.2 Trouble shooting Q K50 Cutting Conditions by Application Workpiece Material: S50C In case of using external coolant system, chip evacuation will be bad. Therefore ap should be measured within 1.5 times (1.5xD) of drill diameter ( D). DRS Recommended Cutting Conditions Рекомендованные режимы резания на станках (Coolant Workpiece Material Обрабатываемый материал Recommended Insert Grades Cutting Speed Vc (m/min) Скорость резания (м/мин) f (mm/rev) MEGACOAT PVD Coated Carbide PR1230 PR1210 PR660 Low Carbon Steel 80 100 - 80 100 0.06 Carbon Steel 80 100 - 80 100 0.08 0.1 Alloy Steel 80 - 80 0.04 0.06 Mold Steel 80 - 80 0.04 0.06 Stainless Steel (Austenitic related) 70 80 - 70 80 0.05 0.06 Gray Cast Iron - 80 100 - 0.08 0.1 DRS Hoie Bottom Shape (mm) D A B C 10.0 2.2 2.80 0.2 10.3 2.3 2.85 0.2 10.5 2.3 2.95 0.2 11.0 2.4 3.10 0.2 11.5 2.5 3.25 0.2 12.0 2.8 3.20 0.3 12.5 2.9 3.35 0.4 : 1st Recommendation : 2nd Recommendation 1. Apply a sufficient amount of coolant. 2. If cutting speed is decreased too much from above condition, chip evacuation performance will deteriorate. If the feed rate is increased too much from above condition, inner edge chip evacuation will deteriorate. If the feed rate is decreased too much from above condition, outer edge chip evacuation will deteriorate. 3. If chips are too long when low carbon steel drilling, increased the cutting speed to 120 150m/min. If this does not solve the problem, try step feeding. How to step feeding (1) Cut 1 2mm (2) Return 0.1mm (3) Repeat (1) and (2) K52 9 : Std. Item
