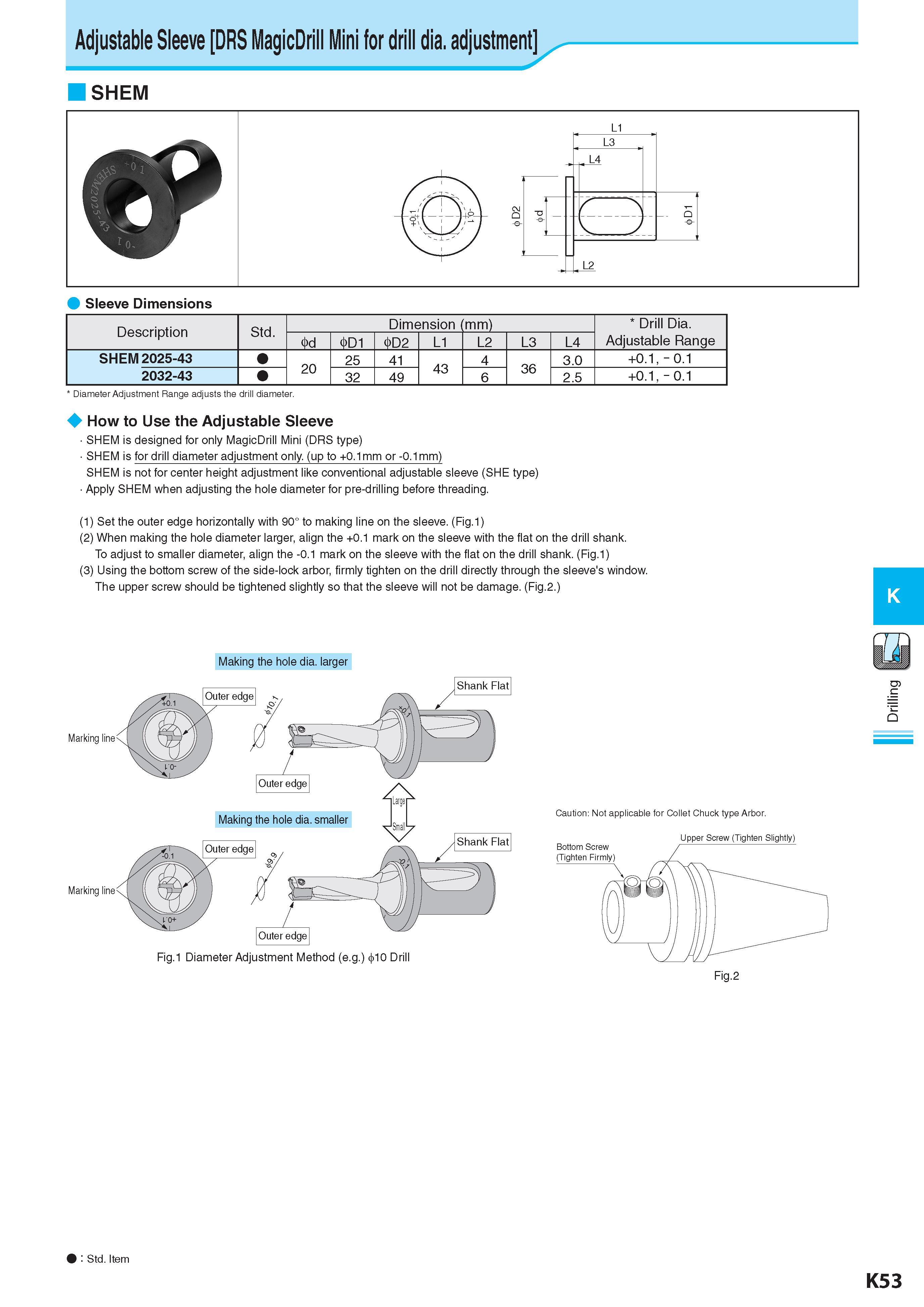

Adjustable Sleeve DRS MagicDrill Mini for drill dia. adjustment SHEM Sleeve Dimensions Description Обозначение Std. Dimension (mm) Размеры в мм Drill Dia. Adjustable Range 0D1 0D2 L1 L2 L3 L4 SHEM 2025-43 20 25 41 43 4 36 3.0 +0.1, - 0.1 2032-43 32 49 6 2.5 +0.1, - 0.1 Diameter Adjustment Range adjusts the drill diameter. How to Use the Adjustable Sleeve SHEM is designed for only MagicDrill Mini (DRS type) SHEM is for drill diameter adjustment only, (up to +0.1mm or -0.1mm) SHEM is not for center height adjustment like conventional adjustable sleeve (SHE type) Apply SHEM when adjusting the hole diameter for pre-drilling before threading. (1) Set the outer edge horizontally with 90° to making line on the sleeve. (Fig.1) (2) When making the hole diameter larger, align the +0.1 mark on the sleeve with the flat on the drill shank. To adjust to smaller diameter, align the -0.1 mark on the sleeve with the flat on the drill shank. (Fig.1) (3) Using the bottom screw of the side-lock arbor, firmly tighten on the drill directly through the sleeve's window. The upper screw should be tightened slightly so that the sleeve will not be damage. (Fig.2.) Making the hole dia. larger Caution: Not applicable for Collet Chuck type Arbor. Upper Screw (Tighten Slightly) : Std. Item Стандартная позиция K53 Drilling
