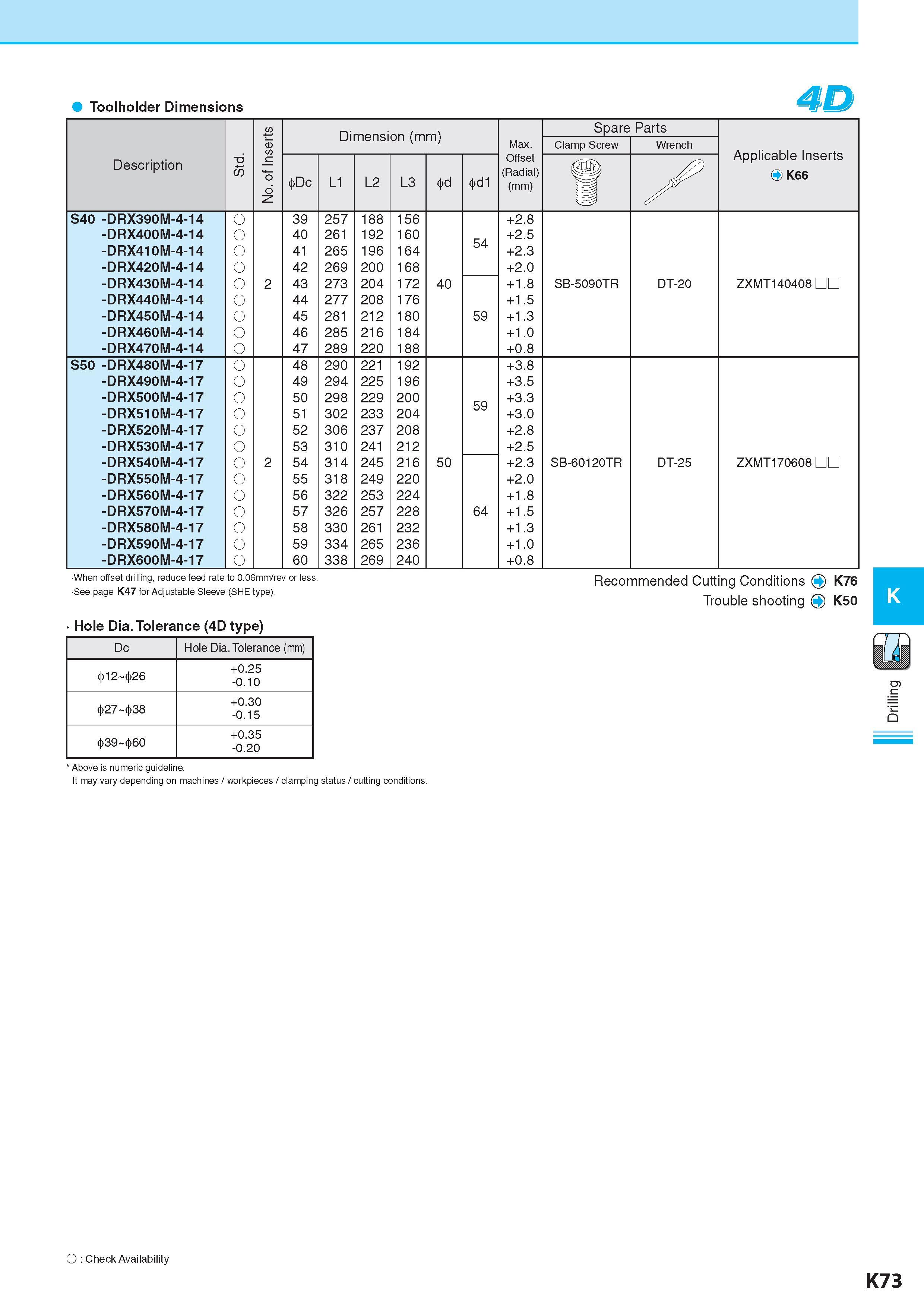

Toolholder Dimensions 4D No. of Inserts Dimension (mm) Размеры в мм Spare Parts Max. Clamp Screw Wrench Applicable Inserts O K66 Description Обозначение -6 55 Dc L1 L2 L3 d d1 Offset (Radial) (mm) U S40 -DRX390M-4-14 O 39 257 188 156 +2.8 -DRX400M-4-14 O 40 261 192 160 54 +2.5 -DRX410M-4-14 O 41 265 196 164 +2.3 -DRX420M-4-14 O 42 269 200 168 +2.0 -DRX430M-4-14 O 2 43 273 204 172 40 + 1.8 SB-5090TR DT-20 ZXMT140408 -DRX440M-4-14 O 44 277 208 176 +1.5 -DRX450M-4-14 O 45 281 212 180 59 +1.3 -DRX460M-4-14 O 46 285 216 184 +1.0 -DRX470M-4-14 O 47 289 220 188 +0.8 S50 -DRX480M-4-17 O 48 290 221 192 +3.8 -DRX490M-4-17 O 49 294 225 196 +3.5 -DRX500M-4-17 O 50 298 229 200 59 +3.3 -DRX510M-4-17 O 51 302 233 204 +3.0 -DRX520M-4-17 O 52 306 237 208 +2.8 -DRX530M-4-17 O 53 310 241 212 +2.5 -DRX540M-4-17 O 2 54 314 245 216 50 +2.3 SB-60120TR DT-25 ZXMT170608 -DRX550M-4-17 O 55 318 249 220 +2.0 -DRX560M-4-17 O 56 322 253 224 +1.8 -DRX570M-4-17 O 57 326 257 228 64 +1.5 -DRX580M-4-17 O 58 330 261 232 +1.3 -DRX590M-4-17 O 59 334 265 236 +1.0 -DRX600M-4-17 O 60 338 269 240 +0.8 When offset drilling, reduce feed rate See page K47 for Adjustable Sleeve to 0.06mm/rev c (SHE type). Recommended Cutting Conditions Рекомендованные режимы резания на станках O K76 Trouble shooting Q K50 Hole Dia. Tolerance (4D type) Dc Hole Dia. Tolerance (mm) +0.25 12- 26 -0.10 +0.30 27- 38 -0.15 +0.35 39- 60 -0.20 Above is numeric guideline. It may vary depending on machines / workpieces / clamping status / cutting conditions. O : Check Availability K73 Drilling
