633 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.K76

Каталог KYOCERA 2017 Инструмент режущий Стр. K76 0633 Lab2u

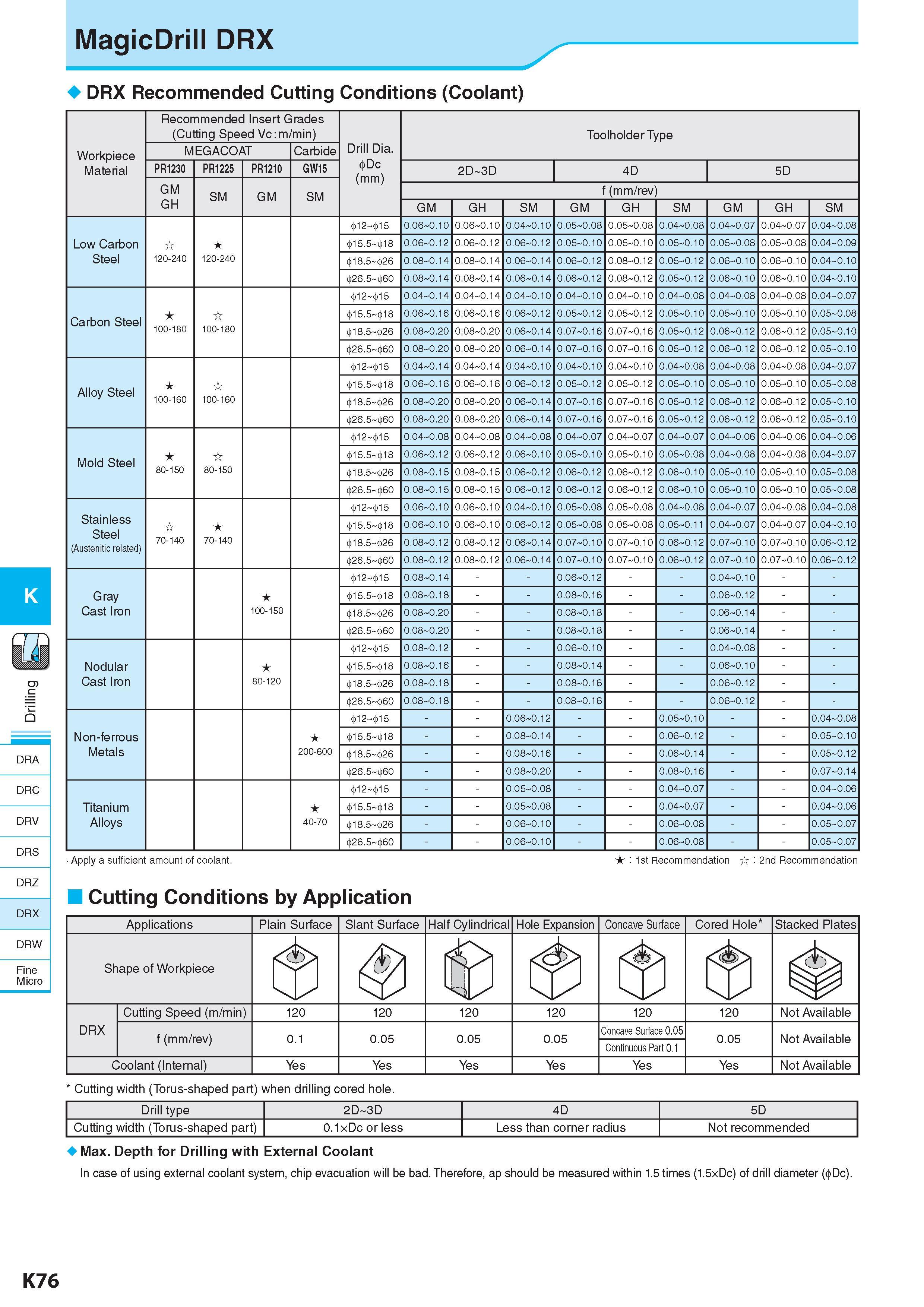

MagicDrill DRX K DRA DRC DRV DRS DRZ DRX DRW Fine Micro DRX Recommended Cutting Conditions Рекомендованные режимы резания на станках (Coolant) Workpiece Material Обрабатываемый материал Recommended Insert Grades Cutting Speed Vc (m/min) Скорость резания (м/мин) Drill Dia. Dc (mm) Toolholder Type MEGACOAT Carbide PR1230 PR1225 PR1210 GW15 2D-3D 4D 5D GM GH SM GM SM f (mm/rev) GM GH SM GM GH SM GM GH SM Low Carbon Steel 120-240 120-240 12- 15 0.06-0.10 0.06-0.10 0.04-0.10 0.05-0.08 0.05-0.08 0.04-0.08 0.04-0.07 0.04-0.07 0.04-0.08 15.5- 18 0.06-0.12 0.06-0.12 0.06-0.12 0.05-0.10 0.05-0.10 0.05-0.10 0.05-0.08 0.05-0.08 0.04-0.09 18.5- 26 0.08-0.14 0.08-0.14 0.06-0.14 0.06-0.12 0.08-0.12 0.05-0.12 0.06-0.10 0.06-0.10 0.04-0.10 26.5- 60 0.08-0.14 0.08-0.14 0.06-0.14 0.06-0.12 0.08-0.12 0.05-0.12 0.06-0.10 0.06-0.10 0.04-0.10 Carbon Steel 100-180 100-180 12- 15 0.04-0.14 0.04-0.14 0.04-0.10 0.04-0.10 0.04-0.10 0.04-0.08 0.04-0.08 0.04-0.08 0.04-0.07 15.5- 18 0.06-0.16 0.06-0.16 0.06-0.12 0.05-0.12 0.05-0.12 0.05-0.10 0.05-0.10 0.05-0.10 0.05-0.08 18.5- 26 0.08-0.20 0.08-0.20 0.06-0.14 0.07-0.16 0.07-0.16 0.05-0.12 0.06-0.12 0.06-0.12 0.05-0.10 26.5- 60 0.08-0.20 0.08-0.20 0.06-0.14 0.07-0.16 0.07-0.16 0.05-0.12 0.06-0.12 0.06-0.12 0.05-0.10 Alloy Steel 100-160 100-160 12- 15 0.04-0.14 0.04-0.14 0.04-0.10 0.04-0.10 0.04-0.10 0.04-0.08 0.04-0.08 0.04-0.08 0.04-0.07 15.5- 18 0.06-0.16 0.06-0.16 0.06-0.12 0.05-0.12 0.05-0.12 0.05-0.10 0.05-0.10 0.05-0.10 0.05-0.08 18.5- 26 0.08-0.20 0.08-0.20 0.06-0.14 0.07-0.16 0.07-0.16 0.05-0.12 0.06-0.12 0.06-0.12 0.05-0.10 26.5- 60 0.08-0.20 0.08-0.20 0.06-0.14 0.07-0.16 0.07-0.16 0.05-0.12 0.06-0.12 0.06-0.12 0.05-0.10 Mold Steel 80-150 80-150 12- 15 0.04-0.08 0.04-0.08 0.04-0.08 0.04-0.07 0.04-0.07 0.04-0.07 0.04-0.06 0.04-0.06 0.04-0.06 15.5- 18 0.06-0.12 0.06-0.12 0.06-0.10 0.05-0.10 0.05-0.10 0.05-0.08 0.04-0.08 0.04-0.08 0.04-0.07 18.5- 26 0.08-0.15 0.08-0.15 0.06-0.12 0.06-0.12 0.06-0.12 0.06-0.10 0.05-0.10 0.05-0.10 0.05-0.08 26.5- 60 0.08-0.15 0.08-0.15 0.06-0.12 0.06-0.12 0.06-0.12 0.06-0.10 0.05-0.10 0.05-0.10 0.05-0.08 Stainless Steel (Austenitic related) 70-140 70-140 12- 15 0.06-0.10 0.06-0.10 0.04-0.10 0.05-0.08 0.05-0.08 0.04-0.08 0.04-0.07 0.04-0.08 0.04-0.08 15.5- 18 0.06-0.10 0.06-0.10 0.06-0.12 0.05-0.08 0.05-0.08 0.05-0.11 0.04-0.07 0.04-0.07 0.04-0.10 18.5- 26 0.08-0.12 0.08-0.12 0.06-0.14 0.07-0.10 0.07-0.10 0.06-0.12 0.07-0.10 0.07-0.10 0.06-0.12 26.5- 60 0.08-0.12 0.08-0.12 0.06-0.14 0.07-0.10 0.07-0.10 0.06-0.12 0.07-0.10 0.07-0.10 0.06-0.12 Gray Cast Iron 100-150 12- 15 0.08-0.14 0.06-0.12 0.04-0.10 15.5- 18 0.08-0.18 0.08-0.16 0.06-0.12 18.5- 26 0.08-0.20 0.08-0.18 0.06-0.14 26.5- 60 0.08-0.20 0.08-0.18 0.06-0.14 Nodular Cast Iron 80-120 12- 15 0.08-0.12 0.06-0.10 0.04-0.08 15.5- 18 0.08-0.16 0.08-0.14 0.06-0.10 18.5- 26 0.08-0.18 0.08-0.16 0.06-0.12 26.5- 60 0.08-0.18 0.08-0.16 0.06-0.12 Non-ferrous Metals 200-600 12- 15 0.06-0.12 0.05-0.10 0.04-0.08 15.5- 18 0.08-0.14 0.06-0.12 0.05-0.10 18.5- 26 0.08-0.16 0.06-0.14 0.05-0.12 26.5- 60 0.08-0.20 0.08-0.16 0.07-0.14 Titanium Alloys 40-70 12- 15 0.05-0.08 0.04-0.07 0.04-0.06 15.5- 18 0.05-0.08 0.04-0.07 0.04-0.06 18.5- 26 0.06-0.10 0.06-0.08 0.05-0.07 26.5- 60 0.06-0.10 0.06-0.08 0.05-0.07 Apply a sufficient amount of coolant. : 1st Recommendation : 2nd Recommendation Cutting Conditions by Application Cutting width (Torus-shaped part) when drilling cored hole. Drill type 2D-3D 4D 5D Cutting width (Torus-shaped part) 0.1xDc or less Less than corner radius Not recommended Max. Depth for Drilling with External Coolant In case of using external coolant system, chip evacuation will be bad. Therefore, ap should be measured within 1.5 times (1.5xDc) of drill diameter ( Dc). K76
