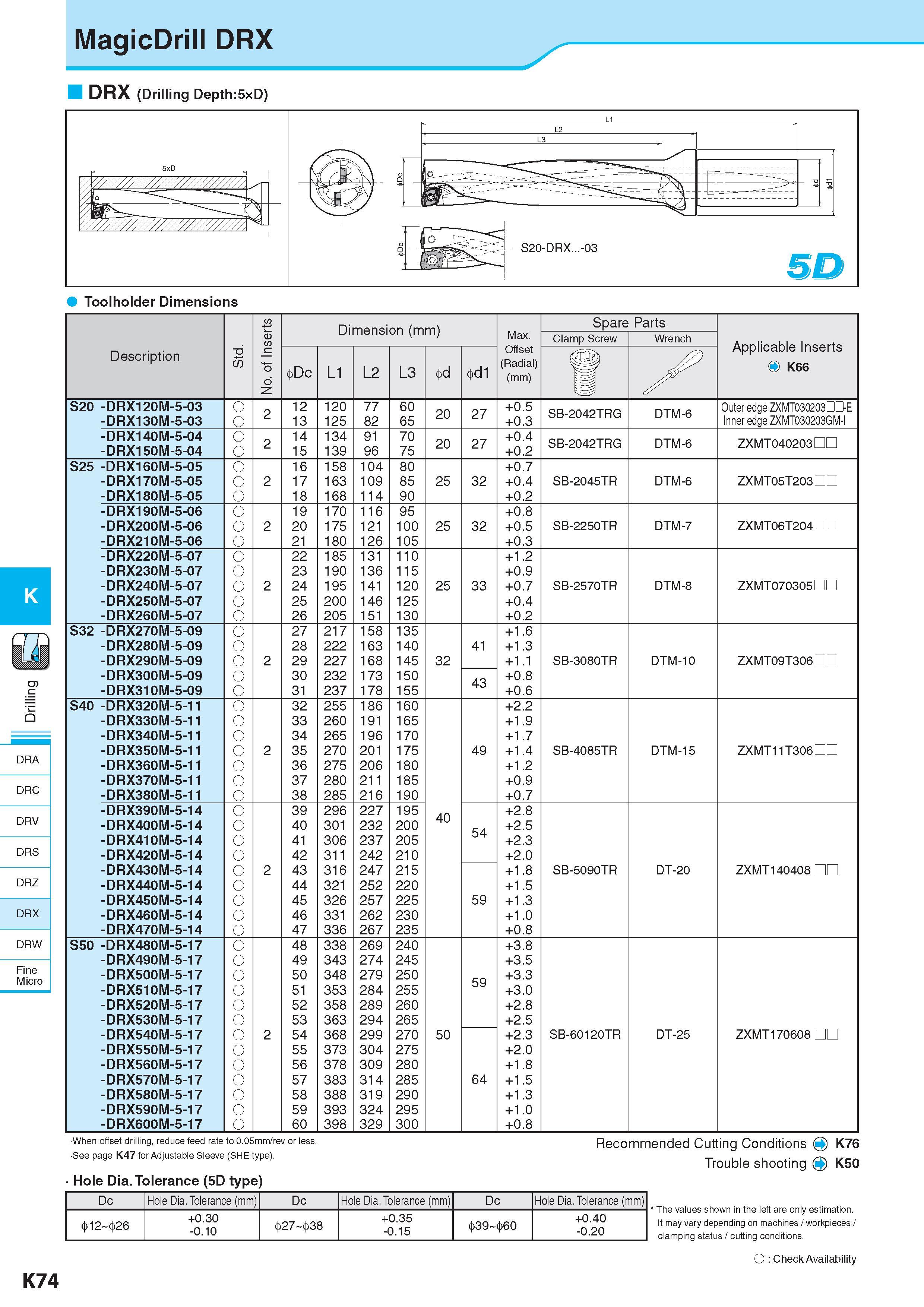

MagicDrill DRX K DRA DRC DRV DRS DRZ DRX DRW Fine Micro DRX (Drilling Depth:5xD) Description Обозначение Dimension (mm) Размеры в мм Dc L1 L2 L3 < d1 Max. Offset (Radial) (mm) Spare Parts Clamp Screw Wrench Applicable Inserts O K66 S20 -DRX120M-5-03 -DRX130M-5-03 12 13 120 125 77 82 60 65 20 27 +0.5 +0.3 SB-2042TRG DTM-6 Outer edge ZXMT030203 DDE Inner edge ZXMT030203GM-I -DRX140M-5-04 -DRX150M-5-04 14 15 134 139 91 96 70 75 20 27 +0.4 +0.2 SB-2042TRG DTM-6 ZXMT040203 DD S25 -DRX160M-5-05 -DRX170M-5-05 -DRX180M-5-05 16 17 18 158 163 168 104 109 114 80 85 90 25 32 +0.7 +0.4 +0.2 SB-2045TR DTM-6 ZXMT05T203DD -DRX190M-5-06 -DRX200M-5-06 -DRX210M-5-06 19 20 21 170 175 180 116 121 126 95 100 105 25 32 +0.8 +0.5 +0.3 SB-2250TR DTM-7 ZXMT06T204DD -DRX220M-5-07 -DRX230M-5-07 -DRX240M-5-07 -DRX250M-5-07 -DRX260M-5-07 22 23 24 25 26 185 190 195 200 205 131 136 141 146 151 110 115 120 125 130 25 33 +1.2 +0.9 +0.7 +0.4 +0.2 SB-2570TR DTM-8 ZXMT070305DD S32 -DRX270M-5-09 -DRX280M-5-09 -DRX290M-5-09 -DRX300M-5-09 -DRX310M-5-09 27 28 29 30 31 217 222 227 232 237 158 163 168 173 178 135 140 145 150 155 41 32 43 +1.6 +1.3 +1.1 +0.8 +0.6 SB-3080TR DTM-10 ZXMT09T306 DD S40 -DRX320M-5-11 -DRX330M-5-11 -DRX340M-5-11 -DRX350M-5-11 -DRX360M-5-11 -DRX370M-5-11 -DRX380M-5-11 32 33 34 35 36 37 38 255 260 265 270 275 280 285 186 191 196 201 206 211 216 160 165 170 175 180 185 190 49 +2.2 +1.9 +1.7 +1.4 +1.2 +0.9 +0.7 SB-4085TR DTM-15 ZXMT11T306 DD -DRX390M-5-14 -DRX400M-5-14 -DRX410M-5-14 -DRX420M-5-14 -DRX430M-5-14 -DRX440M-5-14 -DRX450M-5-14 -DRX460M-5-14 -DRX470M-5-14 39 40 41 42 43 44 45 46 47 296 301 306 311 316 321 326 331 336 227 232 237 242 247 252 257 262 267 195 200 205 210 215 220 225 230 235 40 54 59 +2.8 +2.5 +2.3 +2.0 +1.8 +1.5 +1.3 +1.0 +0.8 SB-5090TR DT-20 ZXMT140408 S50 -DRX480M-5-17 -DRX490M-5-17 -DRX500M-5-17 -DRX510M-5-17 -DRX520M-5-17 -DRX530M-5-17 -DRX540M-5-17 -DRX550M-5-17 -DRX560M-5-17 -DRX570M-5-17 -DRX580M-5-17 -DRX590M-5-17 -DRX600M-5-17 48 49 50 51 52 53 54 55 56 57 58 59 60 338 343 348 353 358 363 368 373 378 383 388 393 398 269 274 279 284 289 294 299 304 309 314 319 324 329 240 245 250 255 260 265 270 275 280 285 290 295 300 59 50 64 +3.8 +3.5 +3.3 +3.0 +2.8 +2.5 +2.3 +2.0 +1.8 +1.5 +1.3 +1.0 +0.8 SB-60120TR DT-25 ZXMT170608 When offset drilling, reduce feed rate to 0.05mm/rev or less. See page K47 for Adjustable Sleeve (SHE type). Recommended Cutting Conditions Рекомендованные режимы резания на станках O K76 Trouble shooting Q K50 Hole Dia. Tolerance (5D type Dc Hole Dia. Tolerance (mm) Dc Hole Dia. Tolerance (mm) Dc Hole Dia. Tolerance (mm) +0.30 +0.35 +0.40 12- 26 -0.10 27- 38 -0.15 39- 60 -0.20 The values shown in the left are only estimation. It may vary depending on machines / workpieces / clamping status / cutting conditions. O : Check Availability 2 2 2 2 2 2 2 2 2 K74
