493 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.H22

Каталог KYOCERA 2017 Инструмент режущий Стр. H22 0493 Lab2u

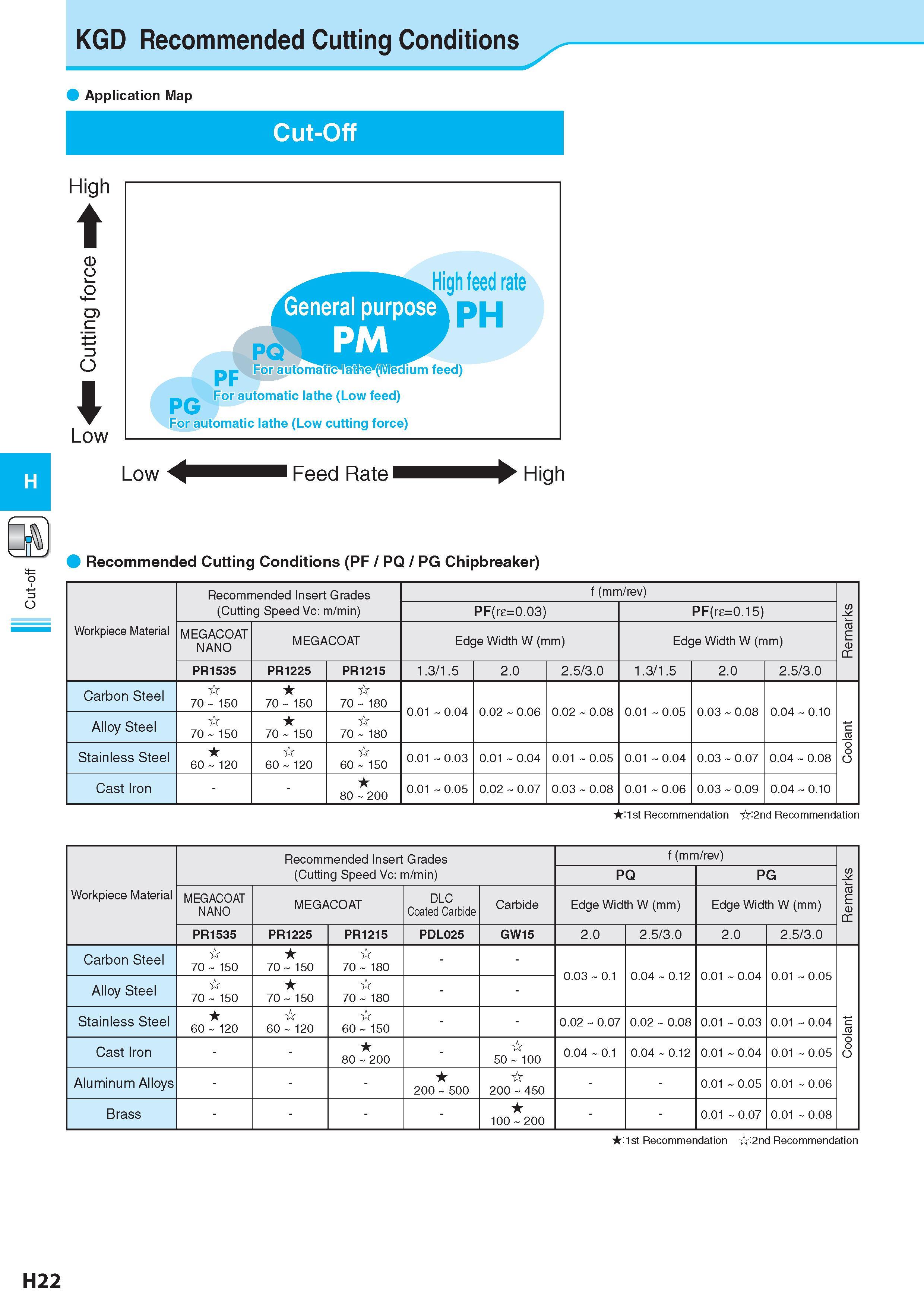

Cut-off KGD Recommended Cutting Conditions Рекомендованные режимы резания на станках Application Map Cut-Off High t g c o 4 Low i PQ 1 F For autc General purpose Q pm High feed rate PH automat'iCiat'hecMedium feed) PG For automatic lathe (Low feed) For automatic lathe (Low cutting force) Low Feed Rate I High Recommended Cutting Conditions Рекомендованные режимы резания на станках (PF / PQ / PG Chipbreaker) Workpiece Material Обрабатываемый материал Recommended Insert Grades Cutting Speed Vc (m/min) Скорость резания (м/мин) f (mm/rev) Remarks Примечания PF(re=0.03) PF(re=0.15) MEGACOAT NANO MEGACOAT Edge Width W (mm) Edge Width W (mm) PR1535 PR1225 PR1215 1.3/1.5 2.0 2.5/3.0 1.3/1.5 2.0 2.5/3.0 Carbon Steel 70 150 70 150 70 180 0.01 0.04 0.02 0.06 0.02 0.08 0.01 0.05 0.03 0.08 0.04 0.10 Coolant Alloy Steel 70 150 70 150 70 180 Stainless Steel 60 120 60 120 60 150 0.01 0.03 0.01 0.04 0.01 0.05 0.01 0.04 0.03 0.07 0.04 0.08 Cast Iron 80 200 0.01 0.05 0.02 0.07 0.03 0.08 0.01 0.06 0.03 0.09 0.04 0.10 : 1 st Recommendation 2nd Recommendation Workpiece Material Обрабатываемый материал Recommended Insert Grades Cutting Speed Vc (m/min) Скорость резания (м/мин) f (mm/rev) Remarks Примечания PQ PG MEGACOAT NANO MEGACOAT DLC Coated Carbide Carbide Edge Width W (mm) Edge Width W (mm) PR1535 PR1225 PR1215 PDL025 GW15 2.0 2.5/3.0 2.0 2.5/3.0 Carbon Steel 70 150 70 150 70 180 0.03 0.1 0.04 0.12 0.01 0.04 0.01 0.05 Coolant Alloy Steel 70 150 70 150 70 180 Stainless Steel 60 120 60 120 60 150 0.02 0.07 0.02 0.08 0.01 0.03 0.01 0.04 Cast Iron 80 200 - 50 100 0.04 0.1 0.04 0.12 0.01 0.04 0.01 0.05 Aluminum Alloys - 200 500 200 450 0.01 0.05 0.01 0.06 Brass 100 200 0.01 0.07 0.01 0.08 1st Recommendation i:'- 2nd Recommendation H22
