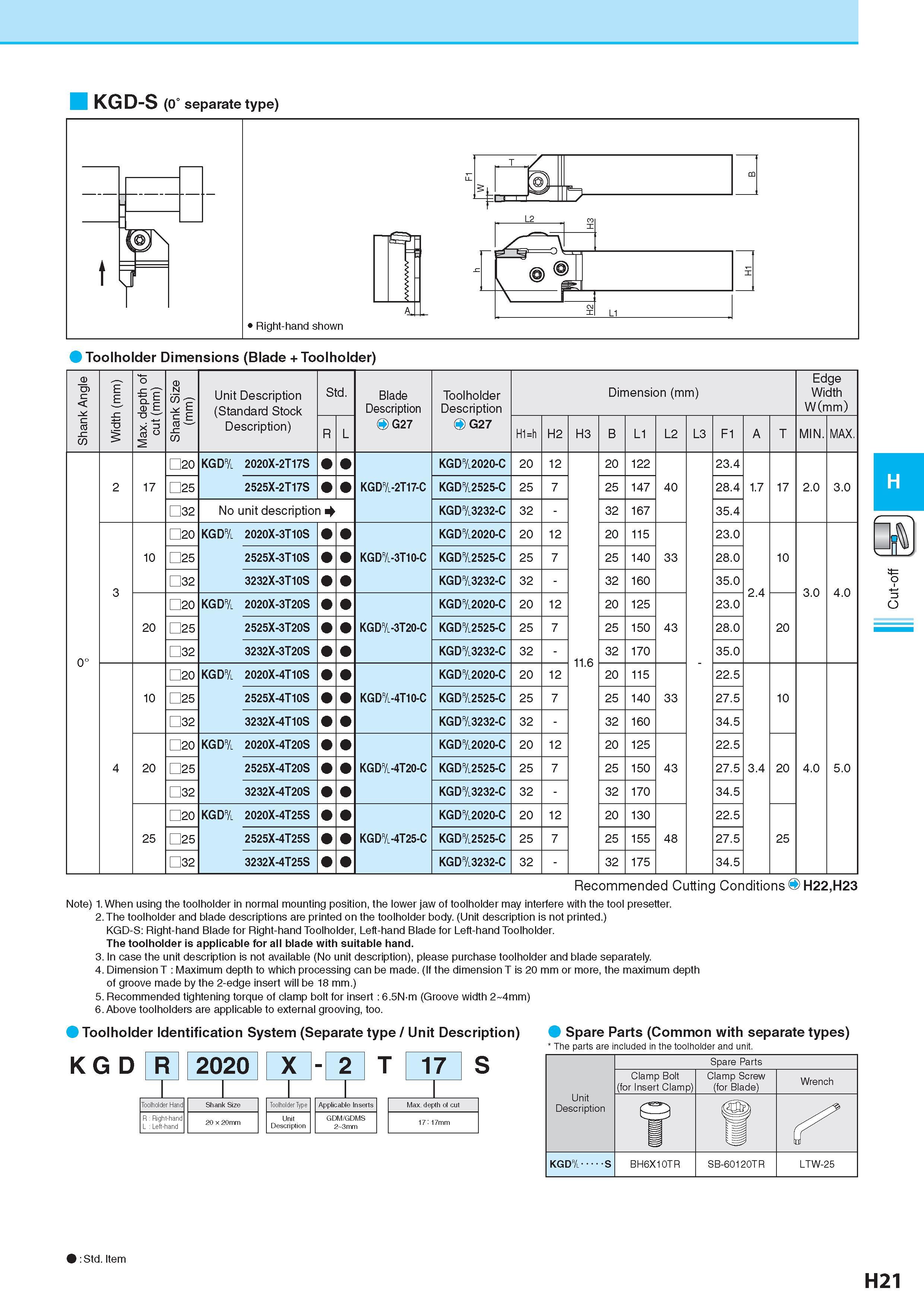

492 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.H21

Каталог KYOCERA 2017 Инструмент режущий Стр. H21 0492 Lab2u

KGD-S (0° separate type) Toolholder Dimensions (Blade + Toolholder) Shank Angle Width (mm) Max. depth of cut (mm) Shank Size (mm) Unit Description Обозначение (Standard Stock Description) Std. Blade Description Обозначение Toolholder Description Обозначение Dimension (mm) Размеры в мм Edge Width W(mm) R L OG27 O G27 H1=h H2 H3 B L1 L2 L3 F1 A T MIN. MAX. 20 KGD& 2020X-2T17S KGD&2020-C 20 12 20 122 23.4 2 17 25 2525X-2T17S KGD&-2T17-C KGD&2525-C 25 7 25 147 40 28.4 1.7 17 2.0 3.0 32 No unit description KGD&3232-C 32 - 32 167 35.4 20 KGD& 2020X-3T10S KGD&2020-C 20 12 20 115 23.0 10 25 2525X-3T10S KGD&-3T10-C KGD&2525-C 25 7 25 140 33 28.0 10 3 32 3232X-3T10S KGD&3232-C 32 - 32 160 35.0 2.4 3.0 4.0 20 KGD& 2020X-3T20S KGD&2020-C 20 12 20 125 23.0 20 25 2525X-3T20S KGD&-3T20-C KGD&2525-C 25 7 25 150 43 28.0 20 0° 32 3232X-3T20S KGD&3232-C 32 - 11.6 32 170 35.0 20 KGD& 2020X-4T10S KGD&2020-C 20 12 20 115 22.5 10 25 2525X-4T10S KGD&-4T10-C KGD&2525-C 25 7 25 140 33 27.5 10 32 3232X-4T10S KGD&3232-C 32 - 32 160 34.5 20 KGD& 2020X-4T20S KGD&2020-C 20 12 20 125 22.5 4 20 25 2525X-4T20S KGD&-4T20-C KGD&2525-C 25 7 25 150 43 27.5 3.4 20 4.0 5.0 32 3232X-4T20S KGD&3232-C 32 - 32 170 34.5 20 KGD& 2020X-4T25S KGD&2020-C 20 12 20 130 22.5 25 25 2525X-4T25S KGD&-4T25-C KGD&2525-C 25 7 25 155 48 27.5 25 32 3232X-4T25S KGD&3232-C 32 - 32 175 34.5 Recommended Cutting Conditions Рекомендованные режимы резания на станкахO H22,H23 Note) 1. When using the toolholder in normal mounting position, the lower jaw of toolholder may interfere with the tool presetter. 2. The toolholder and blade descriptions are printed on the toolholder body. (Unit description is not printed.) KGD-S: Right-hand Blade for Right-hand Toolholder, Left-hand Blade for Left-hand Toolholder. The toolholder is applicable for all blade with suitable hand. 3. In case the unit description is not available (No unit description), please purchase toolholder and blade separately. 4. Dimension T : Maximum depth to which processing can be made. (If the dimension T is 20 mm or more, the maximum depth of groove made by the 2-edge insert will be 18 mm.) 5. Recommended tightening torque of clamp bolt for insert : 6.5N-m (Groove width 2 4mm) 6. Above toolholders are applicable to external grooving, too. Toolholder Identification System (Separate type / Unit Description) K G D fR 2020 m-m T 17 S Spare Parts (Common with separate types) The parts are included in the toolholder and unit. Toolholder Hand Shank Size R : Right-hand L : Left-hand 20 x 20mm Toolholder Type Applicable Inserts Unit Description Обозначение GDM/GDMS 2 3mm Unit Description Обозначение Spare Parts Clamp Bolt (for Insert Clamp) Clamp Screw (for Blade) Wrench £ S23 P u KGD& S BH6X10TR SB-60120TR LTW-25 Max. depth of cut 17:17mm :Std. Item H21 Cut-off
