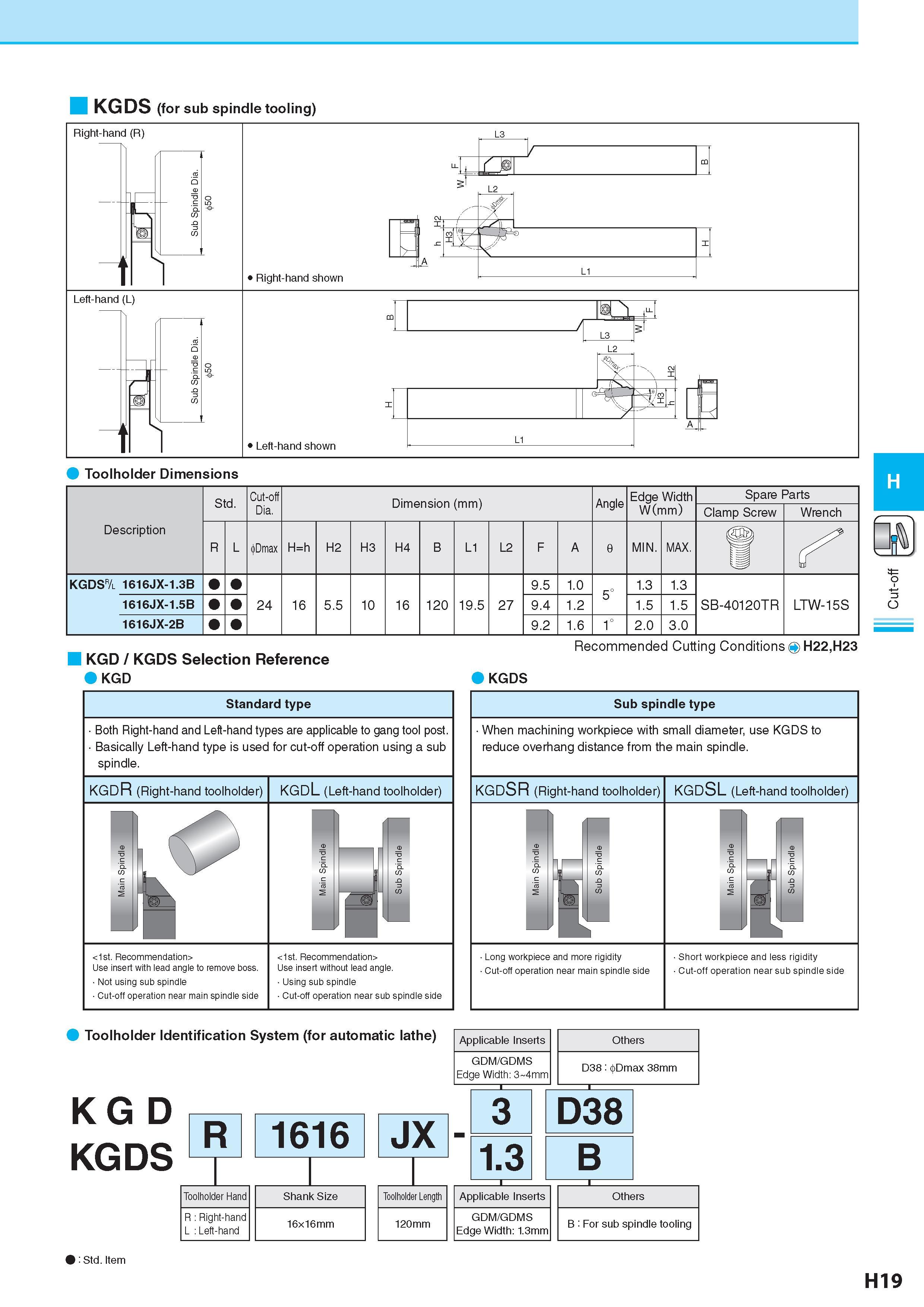

KGDS (for sub spindle tooling) Toolholder Dimensions Description Обозначение Std. Cut-off Dia. Dimension (mm) Размеры в мм Angle Edge Width W(mm) Spare Parts Clamp Screw Wrench R L iJDmax H=h H2 H3 H4 B L1 L2 F A 0 MIN. MAX. fif KGDS& 1616JX-1.3B 24 16 5.5 10 16 120 19.5 27 9.5 1.0 5° 1.3 1.3 SB-40120TR LTW-15S 1616JX-1.5B 9.4 1.2 1.5 1.5 1616JX-2B 9.2 1.6 1° 2.0 3.0 Recommended Cutting Conditions Рекомендованные режимы резания на станкахO H22,H23 KGD / KGDS Selection Reference KGD KGDS H Standard type Both Right-hand and Left-hand types are applicable to gang tool post. Basically Left-hand type is used for cut-off operation using a sub spindle. KGDR (Right-hand toolholder) KGDL (Left-hand toolholder) 1 c J “U c d c 2 I 1 t5 c d XJ 00 1L <1st. Recommendation> Use insert with lead angle to remove boss. Not using sub spindle Cut-off operation near main spindle side <1st. Recommendation> Use insert without lead angle. Using sub spindle Cut-off operation near sub spindle side Sub spindle type When machining workpiece with small diameter, use KGDS to reduce overhang distance from the main spindle. KGDSR (Right-hand toolholder) KGDSL (Left-hand toolholder) r k J Lj JfL 3 s LJ J1U Long workpiece and more rigidity Cut-off operation near main spindle side Short workpiece and less rigidity Cut-off operation near sub spindle side Toolholder Identification System (for automatic lathe) Applicable Inserts GDM/GDMS Edge Width: 3 4mm Others D38: ( Dmax 38mm G DG (/> D 3 D38 1 -i 1616 JX - 1.3 1 J B i Toolholder Hand Shank Size R : Right-hand L : Left-hand 16x16mm Toolholder Length 120mm Applicable Inserts GDM/GDMS Edge Width: 1.3mm Others B : For sub spindle tooling : Std. Item Стандартная позиция H19 Cut-off
