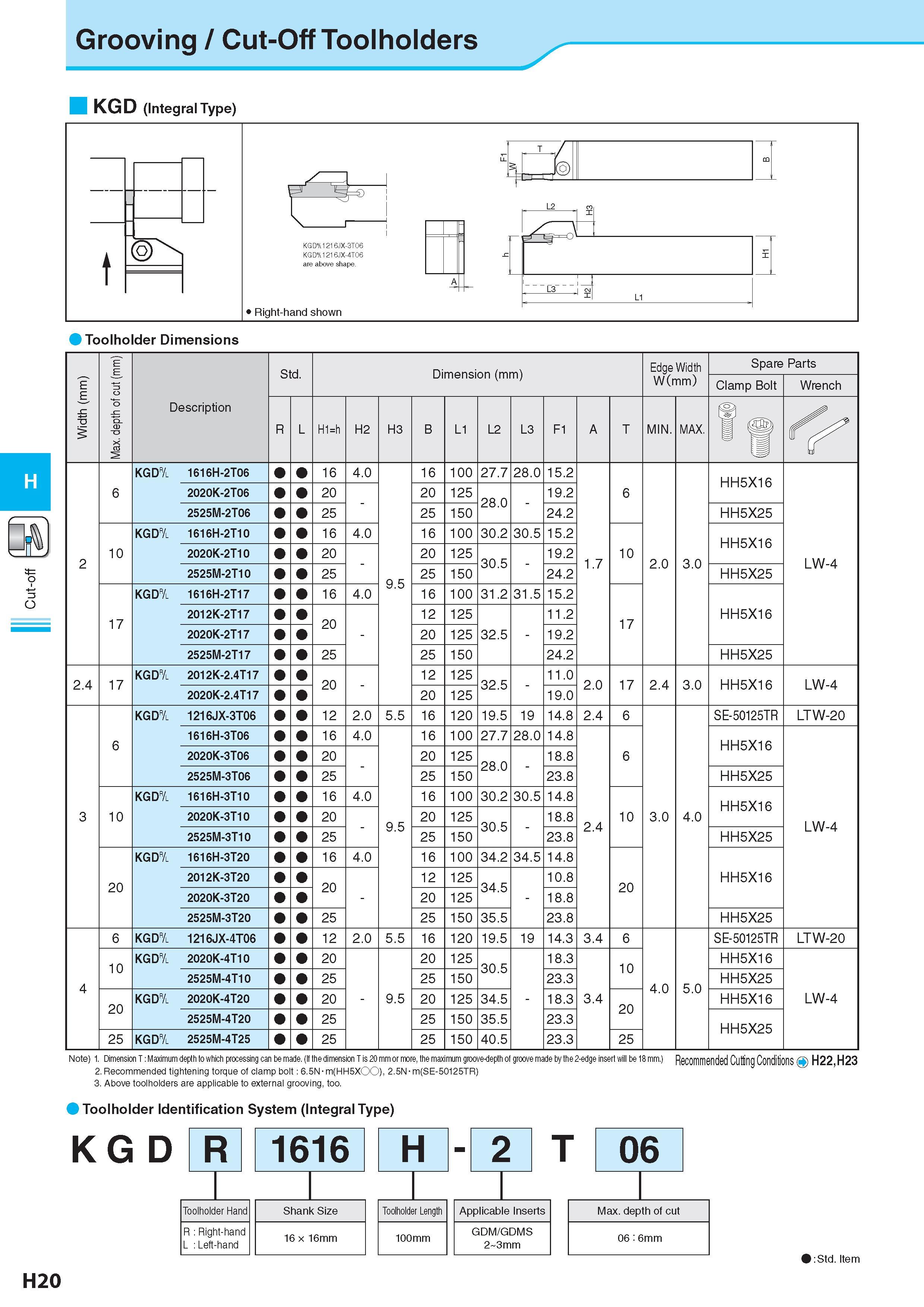

Cut-off Grooving / Cut-Off Toolholders KGD (Integral Type) Toolholder Dimensions Width (mm) Max. depth of cut (mm) Description Обозначение Std. Dimension (mm) Размеры в мм Edge Width W(mm) Spare Parts Clamp Bolt Wrench R L H1=h H2 H3 B L1 L2 L3 F1 A T MIN. MAX. 2 6 KGD& 1616H-2T06 16 4.0 9.5 16 100 27.7 28.0 15.2 1.7 6 2.0 3.0 HH5X16 LW-4 2020K-2T06 20 - 20 125 28.0 - 19.2 2525M-2T06 25 25 150 24.2 HH5X25 10 KGD& 1616H-2T10 16 4.0 16 100 30.2 30.5 15.2 10 HH5X16 2020K-2T10 20 - 20 125 30.5 - 19.2 2525M-2T10 25 25 150 24.2 HH5X25 17 KGD& 1616H-2T17 16 4.0 16 100 31.2 31.5 15.2 17 HH5X16 2012K-2T17 20 - 12 125 32.5 - 11.2 2020K-2T17 20 125 19.2 2525M-2T17 25 25 150 24.2 HH5X25 2.4 17 KGD& 2012K-2.4T17 20 - 12 125 32.5 - 11.0 2.0 17 2.4 3.0 HH5X16 LW-4 2020K-2.4T17 20 125 19.0 3 6 KGD& 1216JX-3T06 12 2.0 5.5 16 120 19.5 19 14.8 2.4 6 3.0 4.0 SE-50125TR LTW-20 1616H-3T06 16 4.0 9.5 16 100 27.7 28.0 14.8 2.4 6 HH5X16 LW-4 2020K-3T06 20 - 20 125 28.0 - 18.8 2525M-3T06 25 25 150 23.8 HH5X25 10 KGD& 1616H-3T10 16 4.0 16 100 30.2 30.5 14.8 10 HH5X16 2020K-3T10 20 - 20 125 30.5 - 18.8 2525M-3T10 25 25 150 23.8 HH5X25 20 KGD& 1616H-3T20 16 4.0 16 100 34.2 34.5 14.8 20 HH5X16 2012K-3T20 20 - 12 125 34.5 - 10.8 2020K-3T20 20 125 18.8 2525M-3T20 25 25 150 35.5 23.8 HH5X25 4 6 KGD& 1216JX-4T06 12 2.0 5.5 16 120 19.5 19 14.3 3.4 6 4.0 5.0 SE-50125TR LTW-20 10 KGD& 2020K-4T10 20 - 9.5 20 125 30.5 - 18.3 3.4 10 HH5X16 LW-4 2525M-4T10 25 25 150 23.3 HH5X25 20 KGD& 2020K-4T20 20 20 125 34.5 18.3 20 HH5X16 2525M-4T20 25 25 150 35.5 23.3 HH5X25 25 KGD& 2525M-4T25 25 25 150 40.5 23.3 25 Note) 1. Dimension T : Maximum depth to which processing can be made. (If the dimension T is 20 mm or more, the maximum groove-depth of groove made by the 2-edge insert will be 1 2. Recommended tightening torque of clamp bolt : 6.5N-m(HH5XOO), 2.5N-m(SE-50125TR) 3. Above toolholders are applicable to external grooving, too. mm.) Recommended Cutting Conditions Рекомендованные режимы резания на станках Q H22,H23 Toolholder Identification System (Integral Type) KGD R 1616 H Toolholder Hand Shank Size R : Right-hand L : Left-hand 16 x 16mm H Toolholder Length 100mm :Std. Item H20
