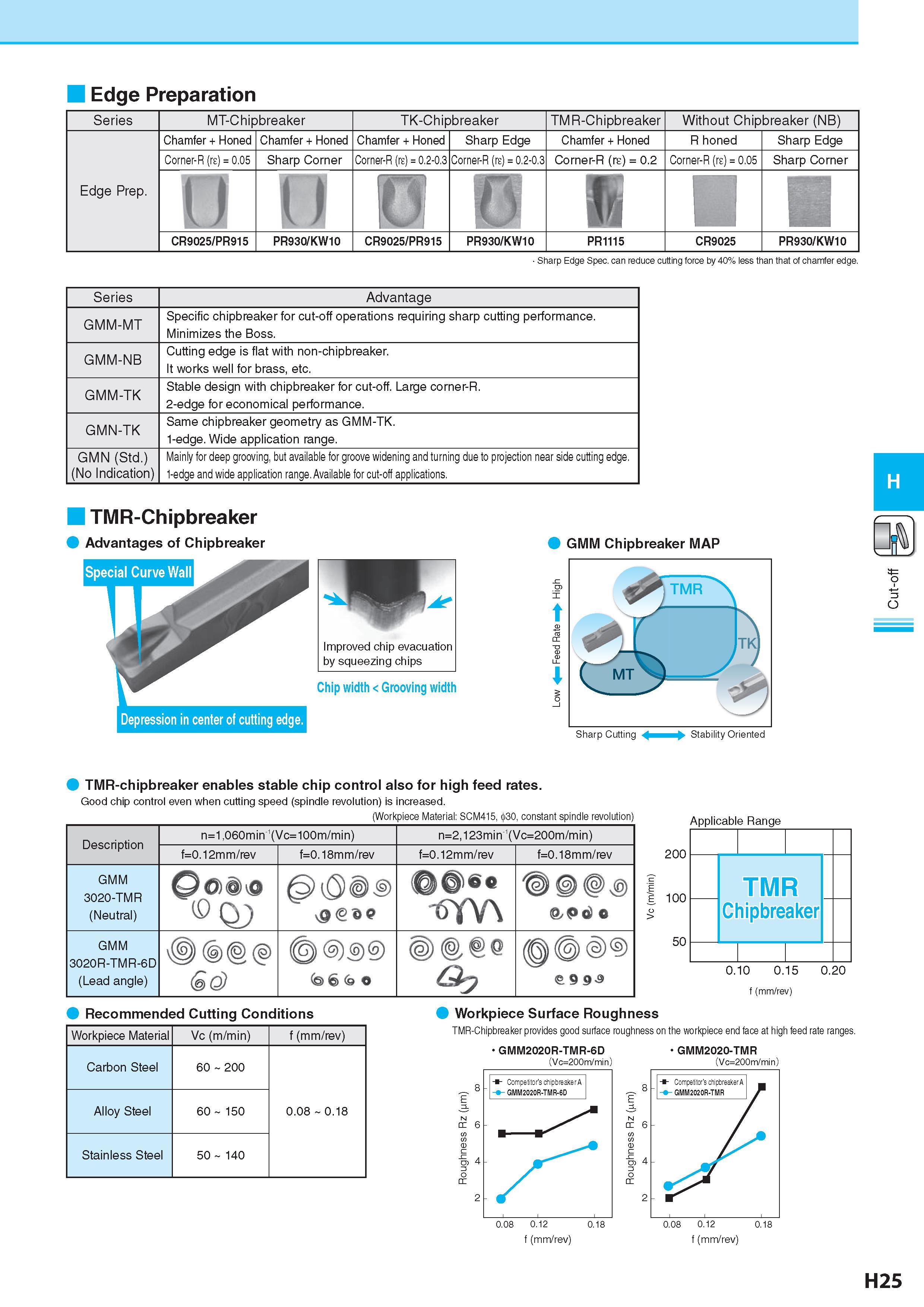

Edge Preparation Series MT-Chipbreaker TK-Chipbreaker TMR-Chipbreaker Without Chipbreaker Стружколом сменной пластины (NB) Chamfer + Honed Chamfer + Honed Chamfer + Honed Sharp Edge Chamfer + Honed R honed Sharp Edge Corner-R (re) = 0.05 Sharp Corner Corner-R (re) = 0.2-0.3 Corner-R (re) = 0.2-0.3 Corner-R (re) = 0.2 Corner-R (re) = 0.05 Sharp Corner Edge Prep. u u fo CR9025/PR915 PR930/KW10 CR9025/PR915 PR930/KW10 PR1115 CR9025 PR930/KW10 Sharp Edge Spec, can reduce cutting force by 40% less than that of chamfer edge. Series Advantage GMM-MT Specific chipbreaker for cut-off operations requiring sharp cutting performance. Minimizes the Boss. GMM-NB Cutting edge is flat with non-chipbreaker. It works well for brass, etc. GMM-TK Stable design with chipbreaker for cut-off. Large corner-R. 2-edge for economical performance. GMN-TK Same chipbreaker geometry as GMM-TK. 1-edge. Wide application range. GMN (Std.) (No Indication) Mainly for deep grooving, but available for groove widening and turning due to projection near side cutting edge. 1-edge and wide application range. Available for cut-off applications. TMR-Chipbreaker 9 Advantages of Chipbreaker Стружколом сменной пластины 0 GMM Chipbreaker Стружколом сменной пластины MAP Chip width < Grooving width Depression in center of cutting edge. TMR-chipbreaker enables stable chip control also for high feed rates. Good chip control even when cutting speed (spindle revolution) is increased. (Workpiece Material: SCM415,4>30, constant spindle revolution) Description Обозначение n=1,060min 1(Vc=100m/min) n=2,123min 1(Vc=200m/min) f=0.12mm/rev f=0.18mm/rev f=0.12mm/rev f=0.18mm/rev GMM 3020-TMR (Neutral) Q0. >0 q; i5YV\ <8,pf o GMM 3020R-TMR-6D (Lead angle) ( )( ) (e) Go) 0) (9) )0 (<3> fe GMM2020R-TMR-6D (Vc=200m/min GMM2020-TMR (Vc=200m/min) f (mm/rev) H25 Cut-off
