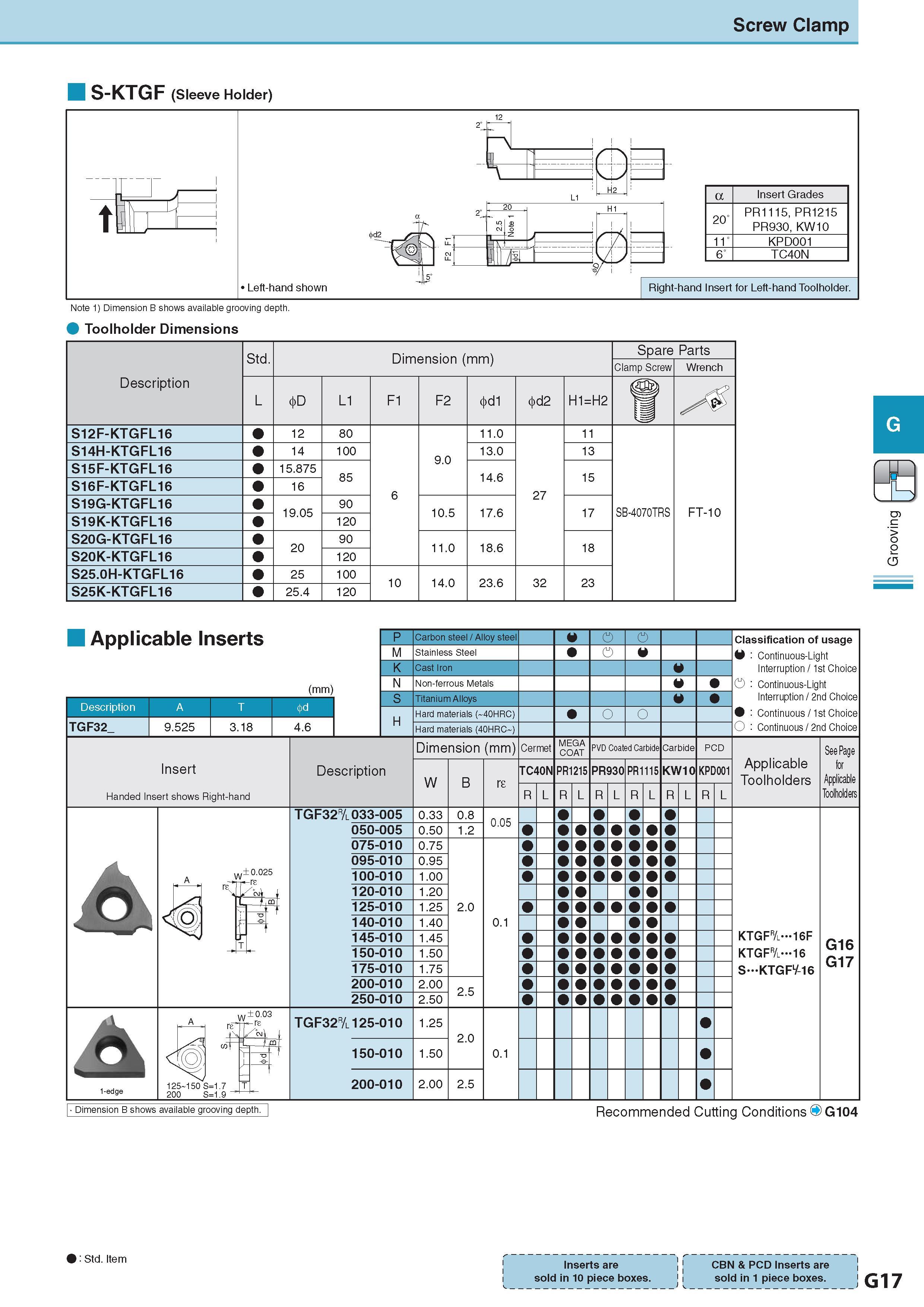

Screw Clamp S-KTGF (Sleeve Holder) Toolholder Dimensions Std. Dimension (mm) Размеры в мм Spare Parts Clamp Screw Wrench Description Обозначение L D L1 F1 F2 d1 d2 H1=H2 u S12F-KTGFL16 12 80 11.0 11 S14H-KTGFL16 14 100 9.0 13.0 13 S15F-KTGFL16 15.875 85 14.6 15 S16F-KTGFL16 16 6 27 S19G-KTGFL16 19.05 90 10.5 17.6 17 SB-4070TRS FT-10 S19K-KTGFL16 120 S20G-KTGFL16 20 90 11.0 18.6 18 S20K-KTGFL16 120 S25.0H-KTGFL16 25 100 10 14.0 23.6 32 23 S25K-KTGFL16 25.4 120 Applicable Inserts (mm) Description Обозначение A T m TGF32 9.525 3.18 4.6 P Carbon steel / Alloy steel Q Classification of usage M Stainless Steel N : Continuous-Light K Cast Iron Q Interruption / 1st Choice N Non-ferrous Metals Q N : Continuous-Light S Titanium Alloys Q N Interruption / 2nd Choice H Hard materials ( 40HRC) N N : Continuous / 1st Choice Hard materials (40HRC ) O : Continuous / 2nd Choice Dimension (mm) Размеры в мм Cermet MEGA COAT PVD Coated Carbide Carbide PCD Applicable Toolholders See Page iption W B re TC40N PR1215 PR930 PR1115 KW10 KPD001 for Applicable Toolholders R L R L R L R L R L R L 033-005 0.33 0.8 0.05 050-005 0.50 1.2 075-010 0.75 095-010 0.95 100-010 1.00 120-010 1.20 125-010 1.25 2.0 140-010 1.40 0.1 145-010 1.45 KTGFr/l-16F G16 G17 150-010 1.50 KTGFr/l-16 175-010 1.75 S KTGFV-16 200-010 2.00 2.5 250-010 2.50 125-010 1.25 2.0 150-010 1.50 0.1 200-010 2.00 2.5 rj > o o 5 Insert Handed Insert shows Right-hand A A 1-edge 125 150 S=1.7 T 200 S=1.9 Dimension B shows available grooving depth. Recommended Cutting Conditions Рекомендованные режимы резания на станкахO G104 : Std. Item Стандартная позиция Inserts are sold in 10 piece boxes. CBN & PCD Inserts are sold in 1 piece boxes. G17 W A
