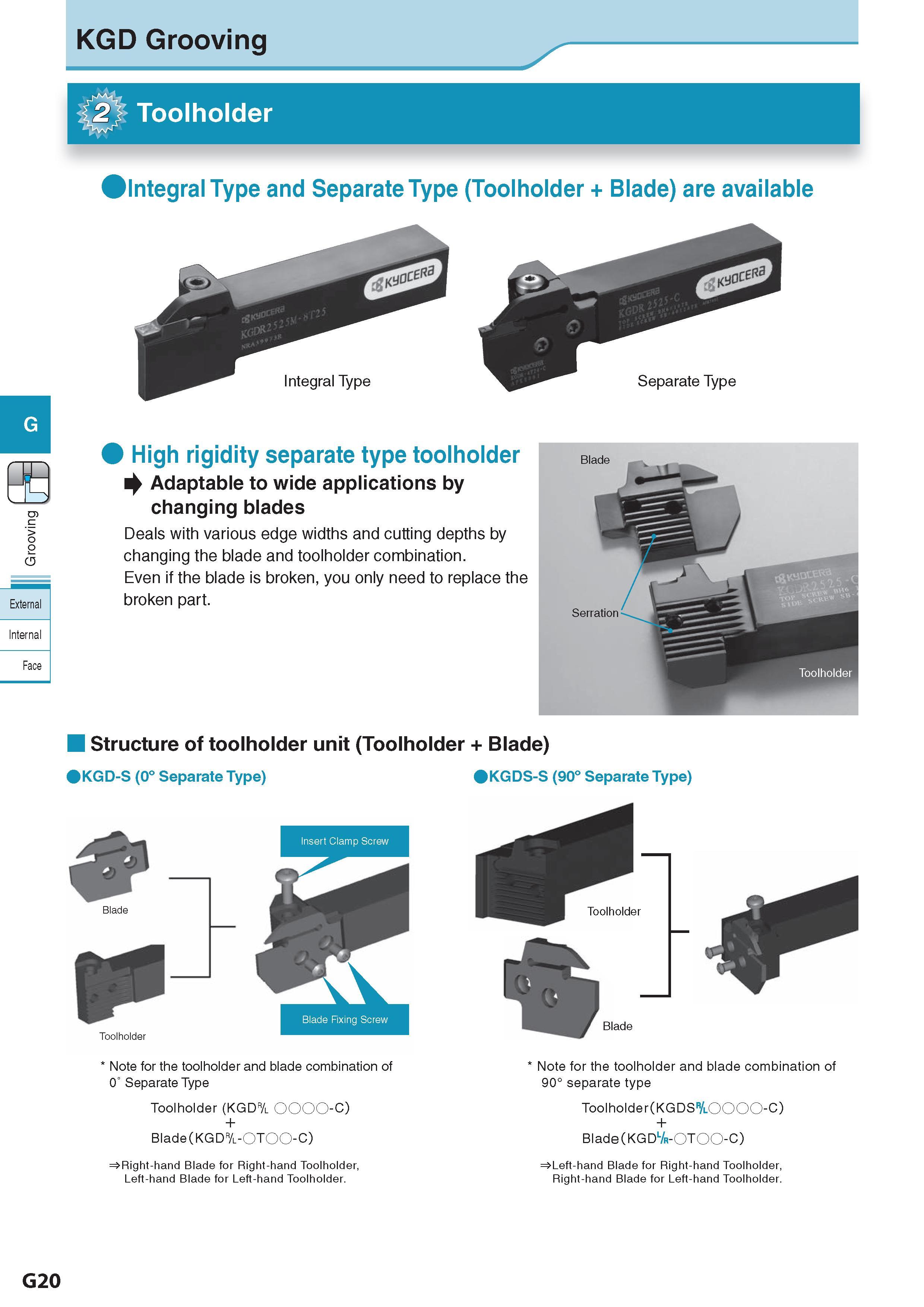

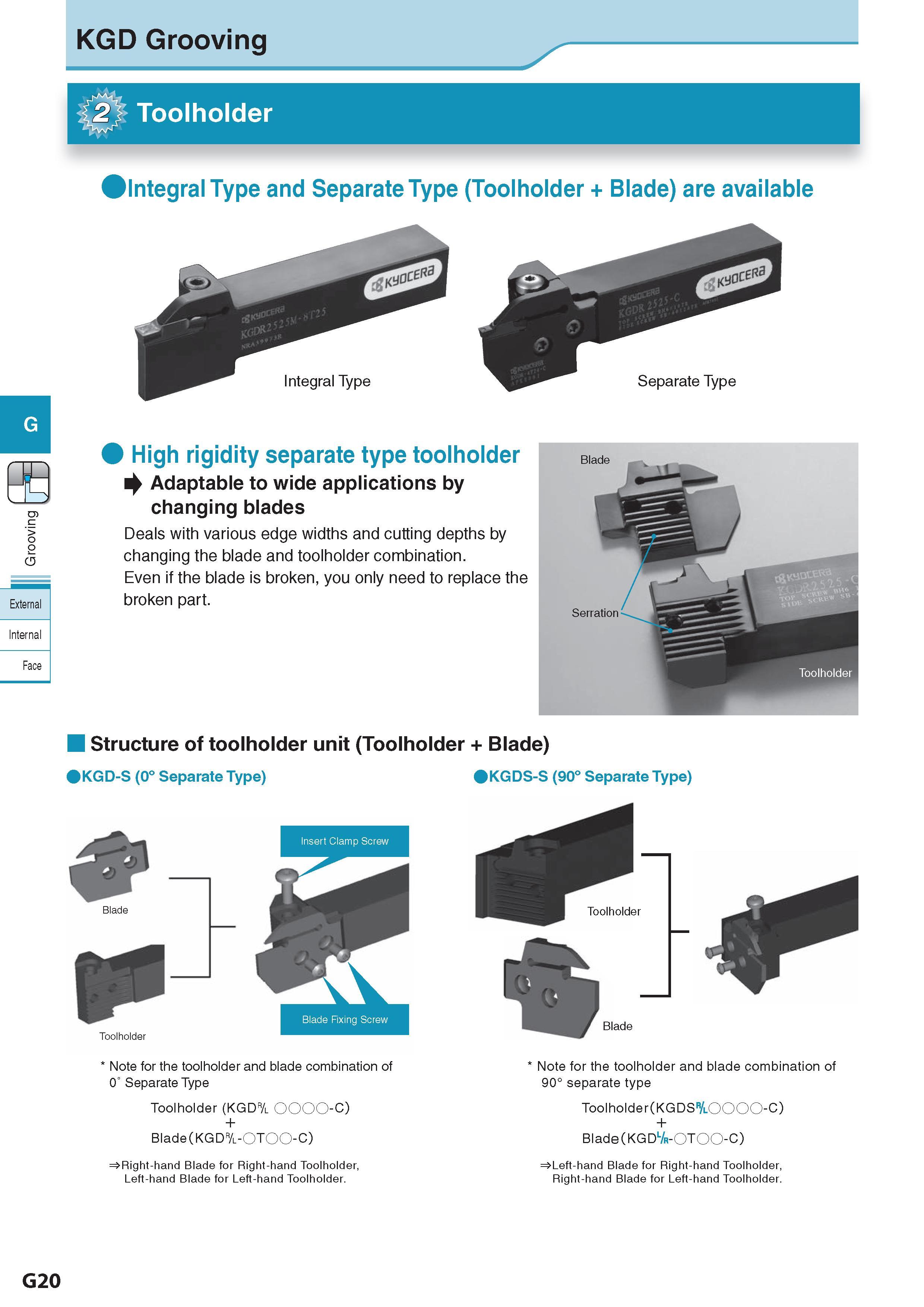

KGD Grooving Toolholder integral Type and Separate Type (Toolholder + Blade) are available > o o CD External Internal Face Integral Type High rigidity separate type toolholder Adaptable to wide applications by changing blades Deals with various edge widths and cutting depths by changing the blade and toolholder combination. Even if the blade is broken, you only need to replace the broken part. Separate Type Structure of toolholder unit (Toolholder + Blade) KGD-S (0° Separate Type) KGDS-S (90° Separate Type) Insert Clamp Screw Toolholder Blade Fixing Screw Toolholder Note for the toolholder and blade combination of 0° Separate Type Toolholder (KGD& OOOO-C) + Blade (KGD&-OTOO-C) Right-hand Blade for Right-hand Toolholder, Left-hand Blade for Left-hand Toolholder. Note for the toolholder and blade combination of 90° separate type Toolholder(KGDS OOOO-C) + Blade (KGDl/r-OTOO-C) Left-hand Blade for Right-hand Toolholder, Right-hand Blade for Left-hand Toolholder. G20
