379 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.G18

Каталог KYOCERA 2017 Инструмент режущий Стр. G18 0379 Lab2u

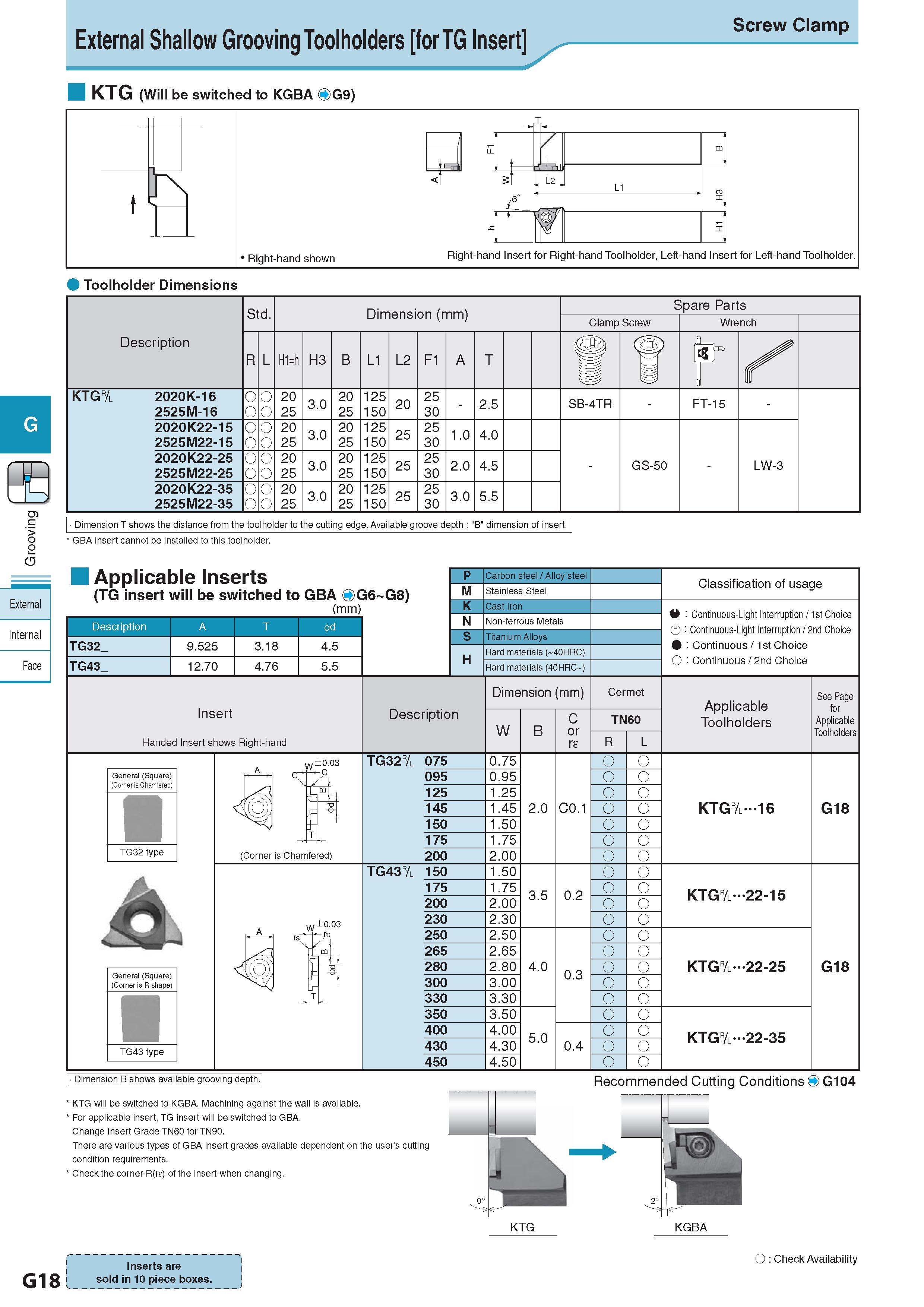

External Shallow Grooving Toolholders for TG Insert KTG (Will be switched to KGBA ( >G9) Screw Clamp ' Показано правое исполнение инструмента Right-hand Insert for Right-hand Toolholder, Left-hand Insert for Left-hand Toolholder. Toolholder Dimensions Description Обозначение Std. Dimension (mm) Размеры в мм Spare Parts Clamp Screw Wrench R L H1=h H3 B L1 L2 F1 A T Hf KTG& 2020K-16 2525M-16 20 25 3.0 20 25 125 150 20 25 30 - 2.5 SB-4TR - FT-15 - 2020K22-15 2525M22-15 20 25 3.0 20 25 125 150 25 25 30 1.0 4.0 - GS-50 - LW-3 2020K22-25 2525M22-25 20 25 3.0 20 25 125 150 25 25 30 2.0 4.5 2020K22-35 2525M22-35 20 25 3.0 20 25 125 150 25 25 30 3.0 5.5 Dimension T shows the distance from the toolholder to the cutting edge. Available groove depth : "B" dimension of insert. GBA insert cannot be installed to this toolholder. External Internal Face Applicable Inserts (TG insert will be switched to GBA OG6-G8) (mm) Description Обозначение A T TG32 TG43 9.525 12.70 3.18 4.76 4.5 5.5 P M K N S Carbon steel / Alloy steel Stainless Steel Non-ferrous Metals Titanium Alloys Hard materials ( 40HRC) Hard materials (40HRC ) Classification of usage M : Continuous-Light Interruption / 1st Choice O : Continuous-Light Interruption / 2nd Choice : Continuous / 1st Choice O: Continuous / 2nd Choice Insert Handed Insert shows Right-hand Description Обозначение Dimension (mm) Размеры в мм Cermet W C or re TN60 Applicable Toolholders See Page for Applicable Toolholders General (Square) (Corner is Chamfered) TG32 type General (Square) (Corner is R shape) TG43 type A ,±0.03 C TG32& 075 0.75 095 0.95 Tot 1 J-1 T 125 1.25 145 1.45 2.0 C0.1 KTG&-16 G18 150 1.50 175 1.75 (Corner is Chamfered) 200 2.00 TG43& 150 1.50 175 1.75 200 2.00 3.5 0.2 KTG& -22-15 ,,±0.03 230 2.30 250 2.50 265 2.65 280 2.80 4.0 300 3.00 0.3 KTG& -22-25 G18 330 3.30 350 3.50 400 4.00 430 4.30 5.0 0.4 KTG& -22-35 450 4.50 Dimension B shows available grooving depth. Recommended Cutting Conditions Рекомендованные режимы резания на станкахO G104 KTG will be switched to KGBA. Machining against the wall is available. For applicable insert, TG insert will be switched to GBA. Change Insert Grade TN60 for TN90. There are various types of GBA insert grades available dependent on the user's cutting condition requirements. Check the corner-R(re) of the insert when changing. KTG KGBA G18 Inserts are sold in 10 piece boxes. O : Check Availability G H R L C A T
