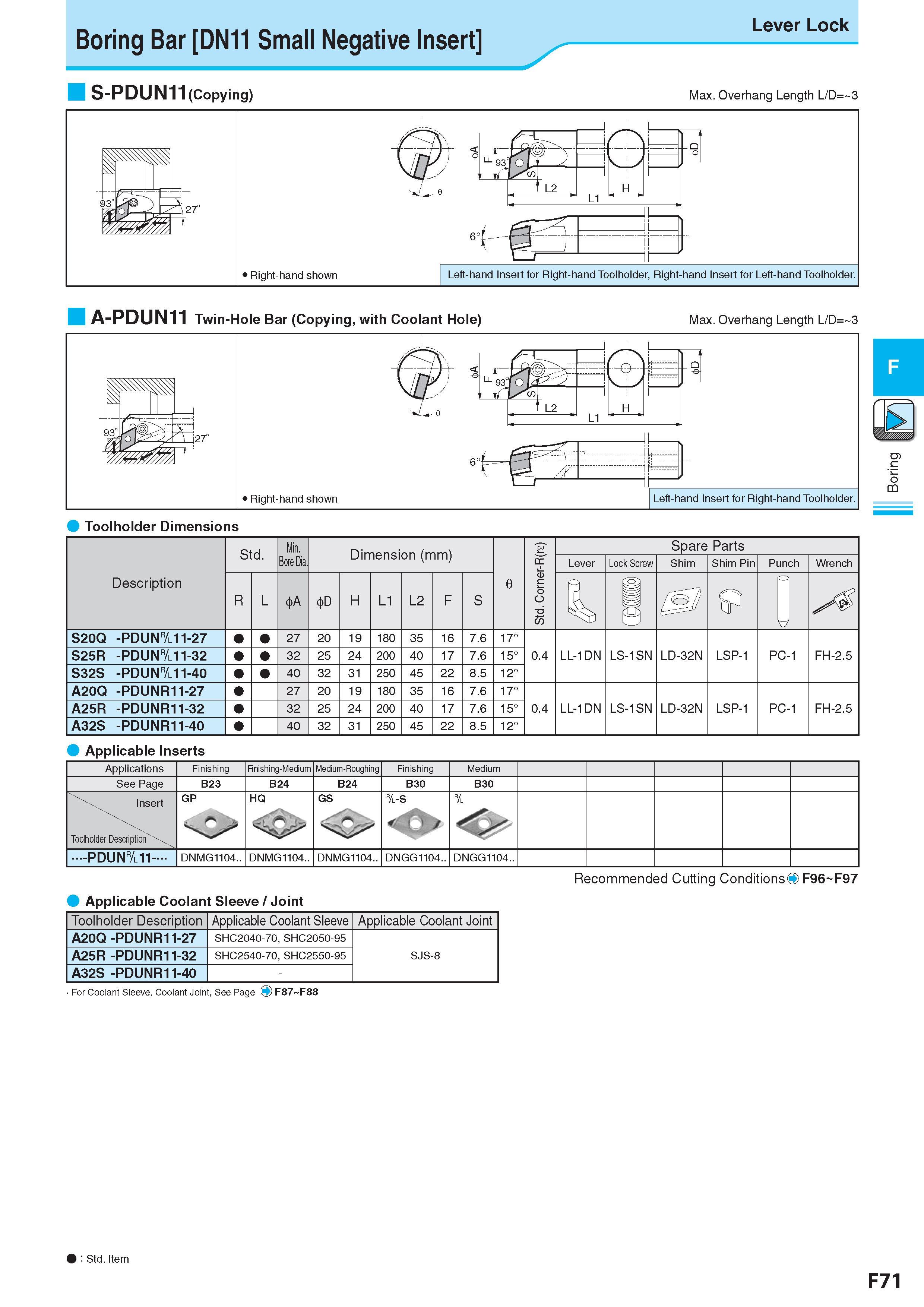

Boring Bar DN11 Small Negative Insert Lever Lock S-PDUN11(Copying) Max. Overhang Length L/D= 3 A-PDUN11 Twin-Hole Bar (Copying, with Coolant Hole) Max. Overhang Length L/D= 3 Description Обозначение Std. Min. Bore Dia Dimension (mm) Размеры в мм 6 OJ DC er nr or O td. W Spare Parts Lever Lock Screw Shim Shim Pin Punch Wrench R L D H L1 L2 F S L 9 S20Q -PDUN&11-27 27 20 19 180 35 16 7.6 17° 0.4 LL-1DN LS-1SN LD-32N LSP-1 PC-1 FH-2.5 S25R -PDUN&11-32 32 25 24 200 40 17 7.6 15° S32S -PDUN&11-40 40 32 31 250 45 22 8.5 12° A20Q -PDUNR11-27 27 20 19 180 35 16 7.6 17° 0.4 LL-1DN LS-1SN LD-32N LSP-1 PC-1 FH-2.5 A25R -PDUNR11-32 32 25 24 200 40 17 7.6 15° A32S -PDUNR11-40 40 32 31 250 45 22 8.5 12° Applicable Inserts Applications Finishing Finishing-Medium Medium-Roughing Finishing Medium See Page B23 B24 B24 B30 B30 Insert Toolholder Description Обозначение GP O' HQ GS &-S & ...-PDUN&11-.. DNMG1104.. DNMG1104.. DNMG1104.. DNGG1104.. DNGG1104.. Recommended Cutting Conditions Рекомендованные режимы резания на станкахO F96 F97 Applicable Coolant Sleeve / Joint Toolholder Description Обозначение Applicable Coolant Sleeve Applicable Coolant Joint A20Q -PDUNR11-27 SHC2040-70, SHC2050-95 SJS-8 A25R -PDUNR11-32 SHC2540-70, SHC2550-95 A32S -PDUNR11-40 - For Coolant Sleeve, Coolant Joint, See Page O F87 F88 9 : Std. Item Стандартная позиция F71 Boring
