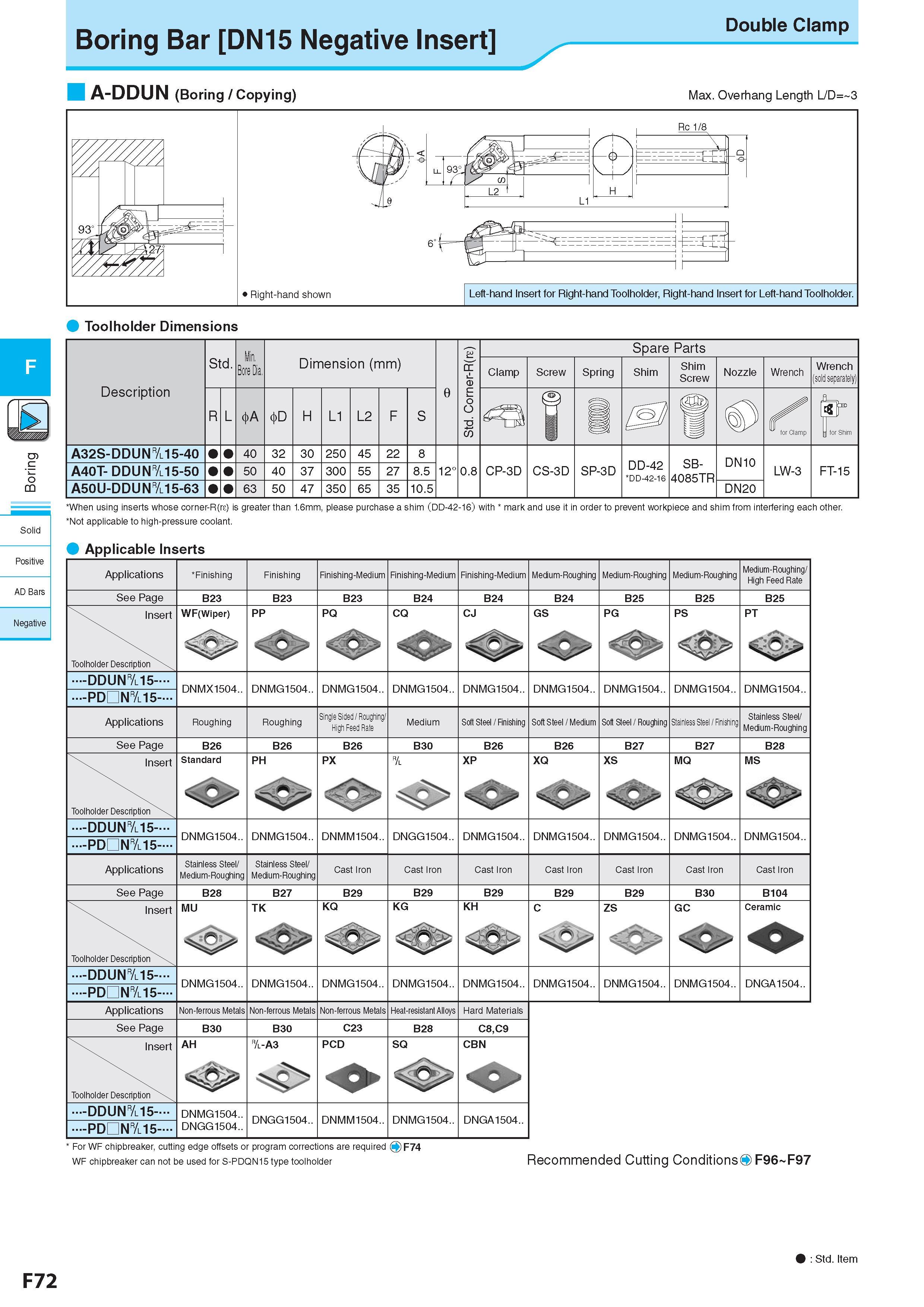

Boring Bar DN15 Negative Insert A-DDUN (Boring / Copying) Double Clamp Max. Overhang Length L/D= 3 c o CQ Solid Positive AD Bars Negative Toolholder Dimensions ££ C er nr o O -6 St Spare Parts Description Обозначение Std. Bore Dia. Dimension (mm) Размеры в мм Clamp Screw Spring Shim Shim Screw Nozzle Wrench Wrench (sold separately) R L D H L1 L2 F S e 1 h tor J for Shim A32S-DDUN&15-40 A40T- DDUN&15-50 40 50 32 40 30 37 250 300 45 55 22 27 8 8.5 12° 0.8 CP-3D CS-3D SP-3D DD-42 DD-42-16 SB- 4085TR DN10 LW-3 FT-15 A50U-DDUN&15-63 63 50 47 350 65 35 10.5 DN20 When using inserts whose corner-R(rs) is greater than 1.6mm, please purchase a shim (DD-42-16) with mark and use it in order to prevent workpiece and shim from interfering each other. Not applicable to high-pressure coolant. Applicable Inserts Applications Finishing Finishing Finishing-Medium Finishing-Medium Finishing-Medium Medium-Roughing Medium-Roughing Medium-Roughing Medium-Roughing/ High Feed Rate See Page B23 B23 B23 B24 B24 B24 B25 B25 B25 Insert WF(Wiper) PP PQ CQ CJ GS PG PS PT Toolholder Description Обозначение < £ ...-DDUN&15 - DNMX1504.. DNMG1504.. DNMG1504.. DNMG1504.. DNMG1504.. DNMG1504.. DNMG1504.. DNMG1504.. DNMG1504.. ...-PD N&15-.. Applications Roughing Roughing Single Sided / Roughing/ High Feed Rate Medium Soft Steel / Finishing Soft Steel / Medium Soft Steel / Roughing Stainless Steel / Finishing Stainless Steel/ Medium-Roughing See Page B26 B26 B26 B30 B26 B26 B27 B27 B28 Insert Standard PH PX & XP XQ XS MQ MS Toolholder Description Обозначение O ...-DDUN&15-.. DNMG1504.. DNMG1504.. DNMM1504.. DNGG1504.. DNMG1504.. DNMG1504.. DNMG1504.. DNMG1504.. DNMG1504.. ...-PD N&15-.. Applications Stainless Steel/ Medium-Roughing Stainless Steel/ Medium-Roughing Cast Iron Cast Iron Cast Iron Cast Iron Cast Iron Cast Iron Cast Iron See Page B28 B27 B29 B29 B29 B29 B29 B30 B104 Insert MU TK KQ KG KH C ZS GC Ceramic Toolholder Description Обозначение o O ...-DDUN&15-.. DNMG1504.. DNMG1504.. DNMG1504.. DNMG1504.. DNMG1504.. DNMG1504.. DNMG1504.. DNMG1504.. DNGA1504.. ...-PD N&15-.. Applications Non-ferrous Metals Non-ferrous Metals Non-ferrous Metals Heat-resistant Alloys Hard Materials See Page B30 B30 C23 B28 C8,C9 Insert AH &-A3 PCD SQ CBN Toolholder Description Обозначение ...-DDUN&15-.. DNMG1504.. DNGG1504.. DNMM1504.. DNMG1504.. DNGA1504.. ...-PD N&15-.. DNGG1504.. For WF chipbreaker, cutting edge offsets or program corrections are required Q F74 WF chipbreaker can not be used for S-PDQN15 type toolholder Recommended Cutting Conditions Рекомендованные режимы резания на станкахO F96 F97 F72 : Std. Item
