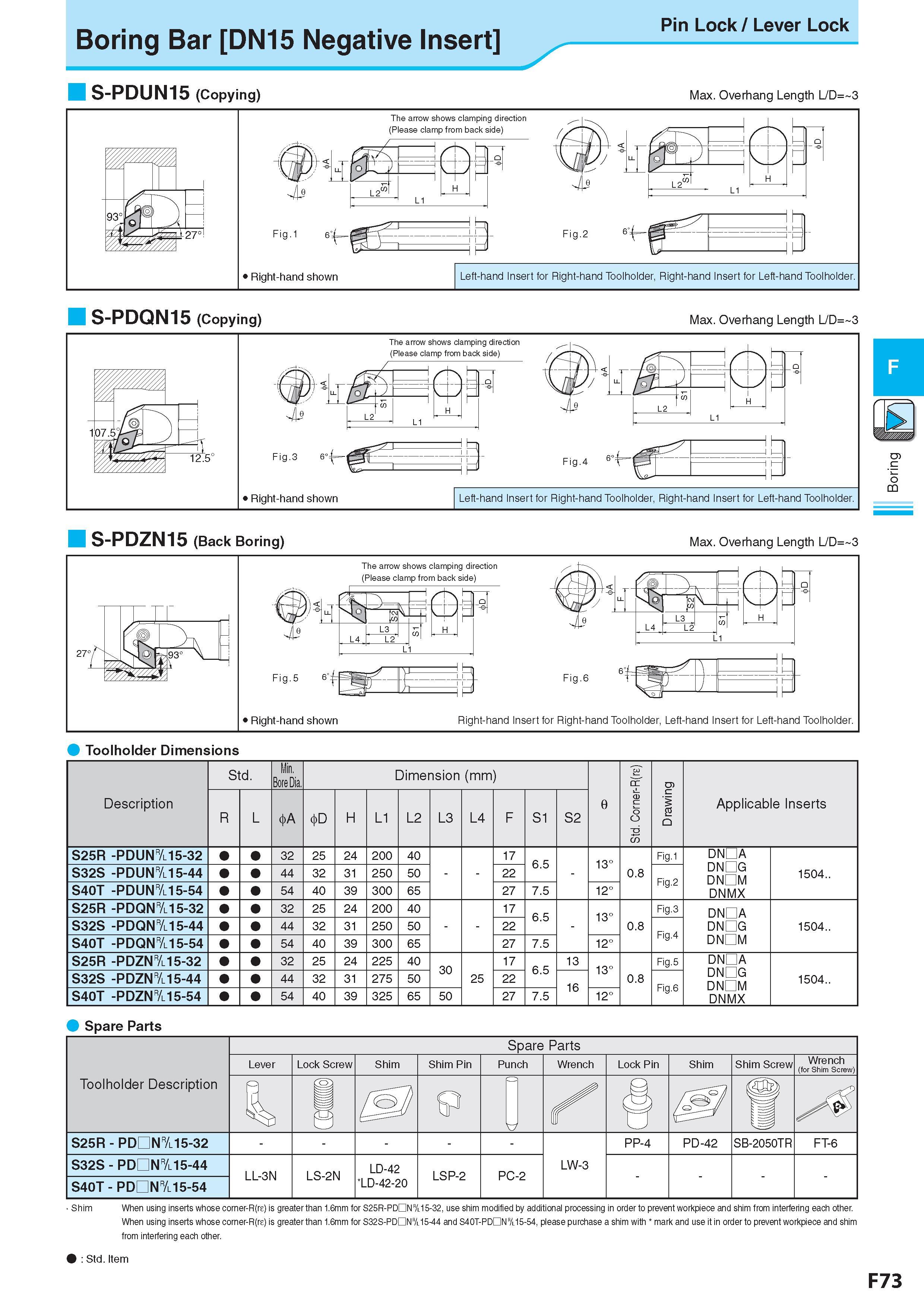

n n r-.,.. Pin Lock / Lever Lock Boring Bar DN15 Negative Insert S-PDUN15 (Copying) Max. Overhang Length L/D= 3 S-PDQN15 (Copying) Max. Overhang Length L/D= 3 S-PDZN15 (Back Boring) Max. Overhang Length L/D= 3 Toolholder Dimensions Description Обозначение Std. Min. Bore Dia. Dimension (mm) Размеры в мм 6 to CC c o O 00 Drawing Applicable Inserts R L A D H L1 L2 L3 L4 F S1 S2 S25R -PDUN&15-32 32 25 24 200 40 17 6.5 - 13° 0.8 Fig.1 DN A DN G DN M DNMX 1504.. S32S -PDUN&15-44 44 32 31 250 50 22 Fig.2 S40T -PDUN&15-54 54 40 39 300 65 27 7.5 12° S25R -PDQN&15-32 32 25 24 200 40 17 6.5 - 13° 0.8 Fig.3 DN A DN G DN M 1504.. S32S -PDQN&15-44 44 32 31 250 50 22 Fig.4 S40T -PDQN&15-54 54 40 39 300 65 27 7.5 12° S25R -PDZN&15-32 32 25 24 225 40 30 25 17 6.5 13 13° 0.8 Fig.5 DN A DN G DN M DNMX 1504.. S32S -PDZN&15-44 44 32 31 275 50 22 16 Fig.6 S40T -PDZN&15-54 54 40 39 325 65 50 27 7.5 12° Spare Parts Toolholder Description Обозначение Spare Parts Lever Lock Screw Shim Shim Pin Punch Wrench Lock Pin Shim Shim Screw Wrench (for Shim Screw) la 1 P V7 s m S25R - PDDN&15-32 - LW-3 PP-4 PD-42 SB-2050TR FT-6 S32S - PDDN&15-44 S40T - PDDN&15-54 LL-3N LS-2N LD-42 LD-42-20 LSP-2 PC-2 Shim When using inserts whose corner-R(re) is greater than 1.6mm for S25R-PD N%15-32, use shim modified by additional processing in order to prevent workpiece and shim from interfering each other. When using inserts whose corner-R(re) is greater than 1.6mm for S32S-PD N% 15-44 and S40T-PD Nr/l 15-54, please purchase a shim with mark and use it in order to prevent workpiece and shim from interfering each other. : Std. Item Стандартная позиция F73 Boring
