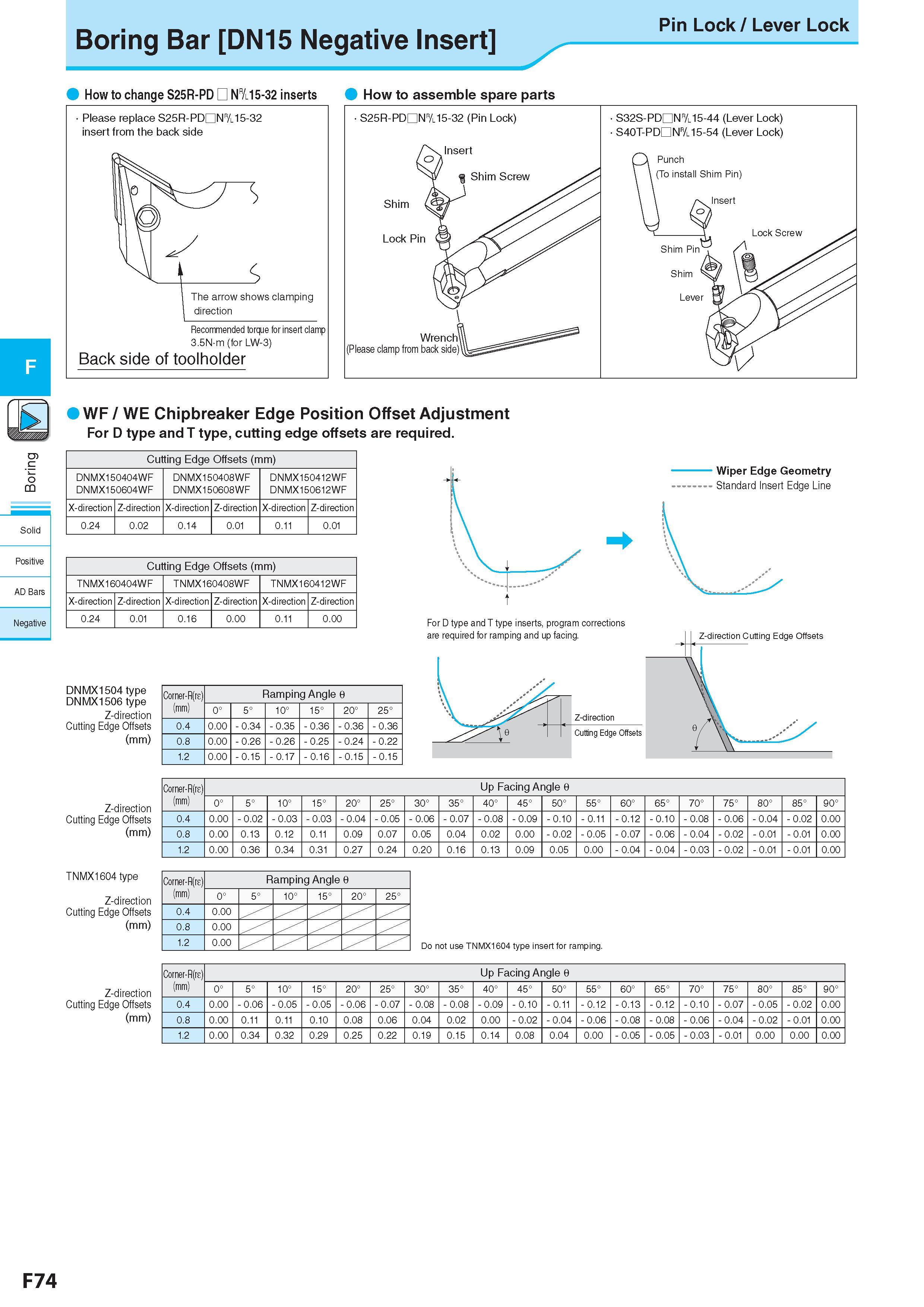

c <5 CQ Solid Positive AD Bars Negative Boring Bar DN15 Negative Insert Pin Lock / Lever Lock How to change S25R-PD N&15-32 inserts How to assemble spare parts Please replace S25R-PD N&15-32 insert from the back side 3.5N-m (for LW-3) Back side of toolholder WF / WE Chipbreaker Стружколом сменной пластины Edge Position Offset Adjustment For D type and T type, cutting edge offsets are required. Cutting Edge Offsets (mm) DNMX150404WF DNMX150604WF DNMX150408WF DNMX150608WF DNMX150412WF DNMX150612WF X-direction Z-direction X-direction Z-direction X-direction Z-direction 0.24 0.02 0.14 0.01 0.11 0.01 Cutting Edge Offsets (mm) TNMX160404WF TNMX160408WF TNMX160412WF X-direction Z-direction X-direction Z-direction X-direction Z-direction 0.24 0.01 0.16 0.00 0.11 0.00 Wiper Edge Geometry Standard Insert Edge Line For D type and T type inserts, program corrections are required for ramping and up facing. DNMX1504 type DNMX1506 type Z-direction Cutting Edge Offsets (mm) Z-direction Cutting Edge Offsets (mm) TNMX1604 type Z-direction Cutting Edge Offsets (mm) Z-direction Cutting Edge Offsets (mm) Corner-R(rs) (mm) Ramping Angle e 0° 5° 10° 15° 20° 25° 0.4 0.00 - 0.34 - 0.35 - 0.36 - 0.36 - 0.36 0.8 0.00 - 0.26 - 0.26 - 0.25 - 0.24 - 0.22 1.2 0.00 - 0.15 - 0.17 - 0.16 - 0.15 - 0.15 Cutting Edge Offsets Corner-R(rs) (mm) Up Facing Angle e 0° 5° 10° 15° 20° 25° 30° 35° 40° 45° 50° 55° 60° 65° 70° 75° 80° 85° 90° 0.4 0.00 - 0.02 - 0.03 - 0.03 - 0.04 - 0.05 - 0.06 - 0.07 - 0.08 - 0.09 - 0.10 - 0.11 - 0.12 - 0.10 - 0.08 - 0.06 - 0.04 - 0.02 0.00 0.8 0.00 0.13 0.12 0.11 0.09 0.07 0.05 0.04 0.02 0.00 - 0.02 - 0.05 - 0.07 - 0.06 - 0.04 - 0.02 - 0.01 - 0.01 0.00 1.2 0.00 0.36 0.34 0.31 0.27 0.24 0.20 0.16 0.13 0.09 0.05 0.00 - 0.04 - 0.04 - 0.03 - 0.02 - 0.01 - 0.01 0.00 Corner-R(rs) (mm) Ramping Angle e 0° 5° 10° 15° 20° 25° 0.4 0.00 0.8 0.00 1.2 0.00 Do not use TNMX1604 type insert for ramping. Corner-R(rs) (mm) Up Facing Angle e 0° 5° 10° 15° 20° 25° 30° 35° 40° 45° 50° 55° 60° 65° 70° 75° 80° 85° 90° 0.4 0.00 - 0.06 - 0.05 - 0.05 - 0.06 - 0.07 - 0.08 - 0.08 - 0.09 - 0.10 - 0.11 - 0.12 - 0.13 - 0.12 - 0.10 - 0.07 - 0.05 - 0.02 0.00 0.8 0.00 0.11 0.11 0.10 0.08 0.06 0.04 0.02 0.00 - 0.02 - 0.04 - 0.06 - 0.08 - 0.08 - 0.06 - 0.04 - 0.02 - 0.01 0.00 1.2 0.00 0.34 0.32 0.29 0.25 0.22 0.19 0.15 0.14 0.08 0.04 0.00 - 0.05 - 0.05 - 0.03 - 0.01 0.00 0.00 0.00 F74
