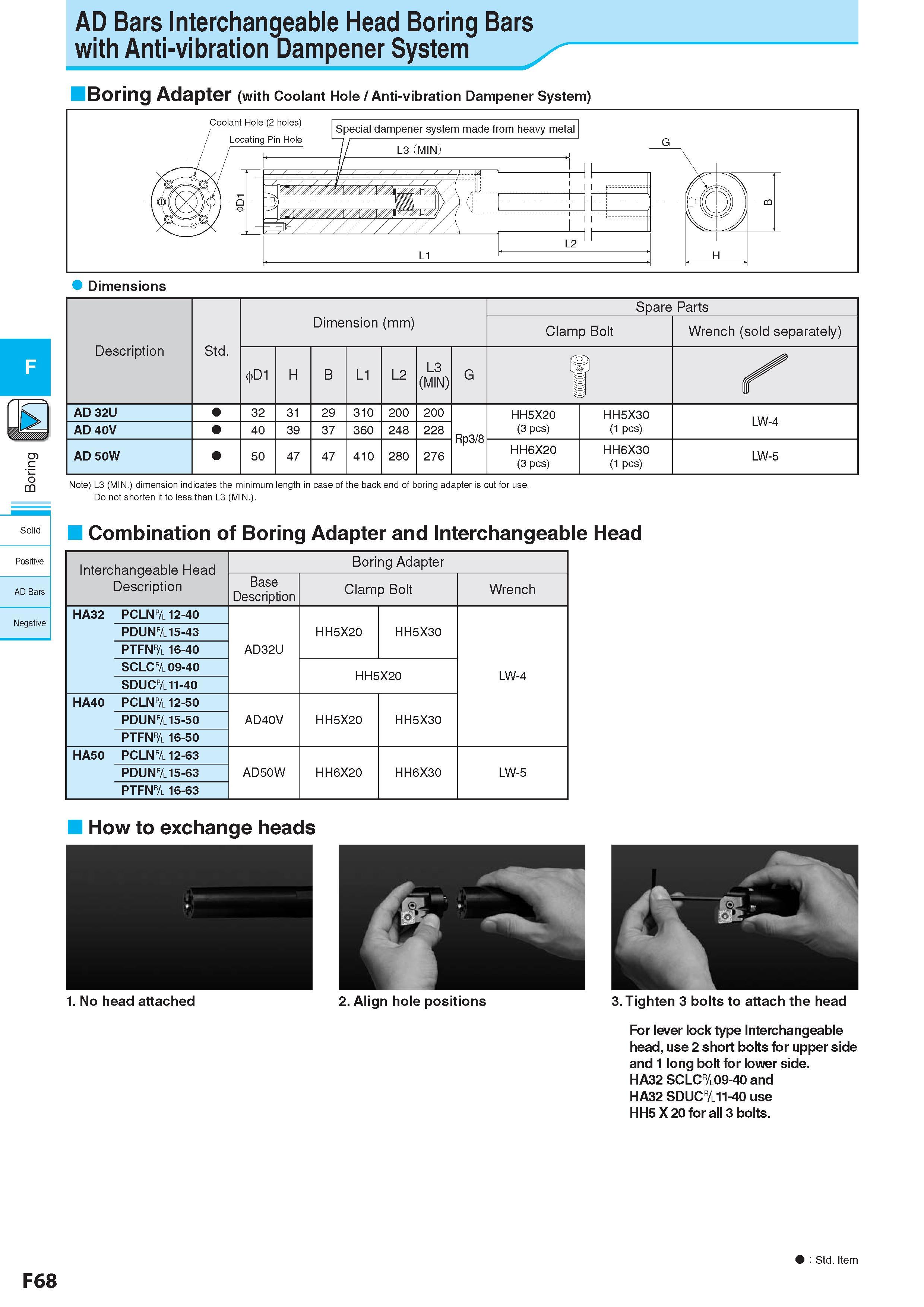

c <5 CQ Solid Positive AD Bars Negative AD Bars Interchangeable Head Boring Bars with Anti-vibration Dampener System Boring Adapter (with Coolant Hole / Anti-vibration Dampener System) Dimensions Description Обозначение Std. Dimension (mm) Размеры в мм Spare Parts Clamp Bolt Wrench (sold separately) D1 H B L1 L2 L3 (MIN) G (ToT S AD 32U 32 31 29 310 200 200 Rp3/8 HH5X20 (3 pcs) HH5X30 (1 pcs) LW-4 AD 40V 40 39 37 360 248 228 AD 50W 50 47 47 410 280 276 HH6X20 (3 pcs) HH6X30 (1 pcs) LW-5 Note) L3 (MIN.) dimension indicates the minimum length in case of the back end of boring adapter is cut for use. Do not shorten it to less than L3 (MIN.). Combination of Boring Adapter and Interchangeable Head Interchangeable Head Description Обозначение Boring Adapter Base Description Обозначение Clamp Bolt Wrench HA32 PCLN& 12-40 AD32U HH5X20 HH5X30 LW-4 PDUN&15-43 PTFN& 16-40 SCLC&09-40 HH5X20 SDUC&11-40 HA40 PCLN& 12-50 AD40V HH5X20 HH5X30 PDUN&15-50 PTFN& 16-50 HA50 PCLN& 12-63 AD50W HH6X20 HH6X30 LW-5 PDUN&15-63 PTFN& 16-63 How to exchange heads 1. No head attached 2. Align hole positions 3. Tighten 3 bolts to attach the head For lever lock type Interchangeable head, use 2 short bolts for upper side and 1 long bolt for lower side. HA32 SCLC&09-40 and HA32 SDUC&11-40 use HH5 X 20 for all 3 bolts. F68 : Std. Item
