330 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.F66

Каталог KYOCERA 2017 Инструмент режущий Стр. F66 0330 Lab2u

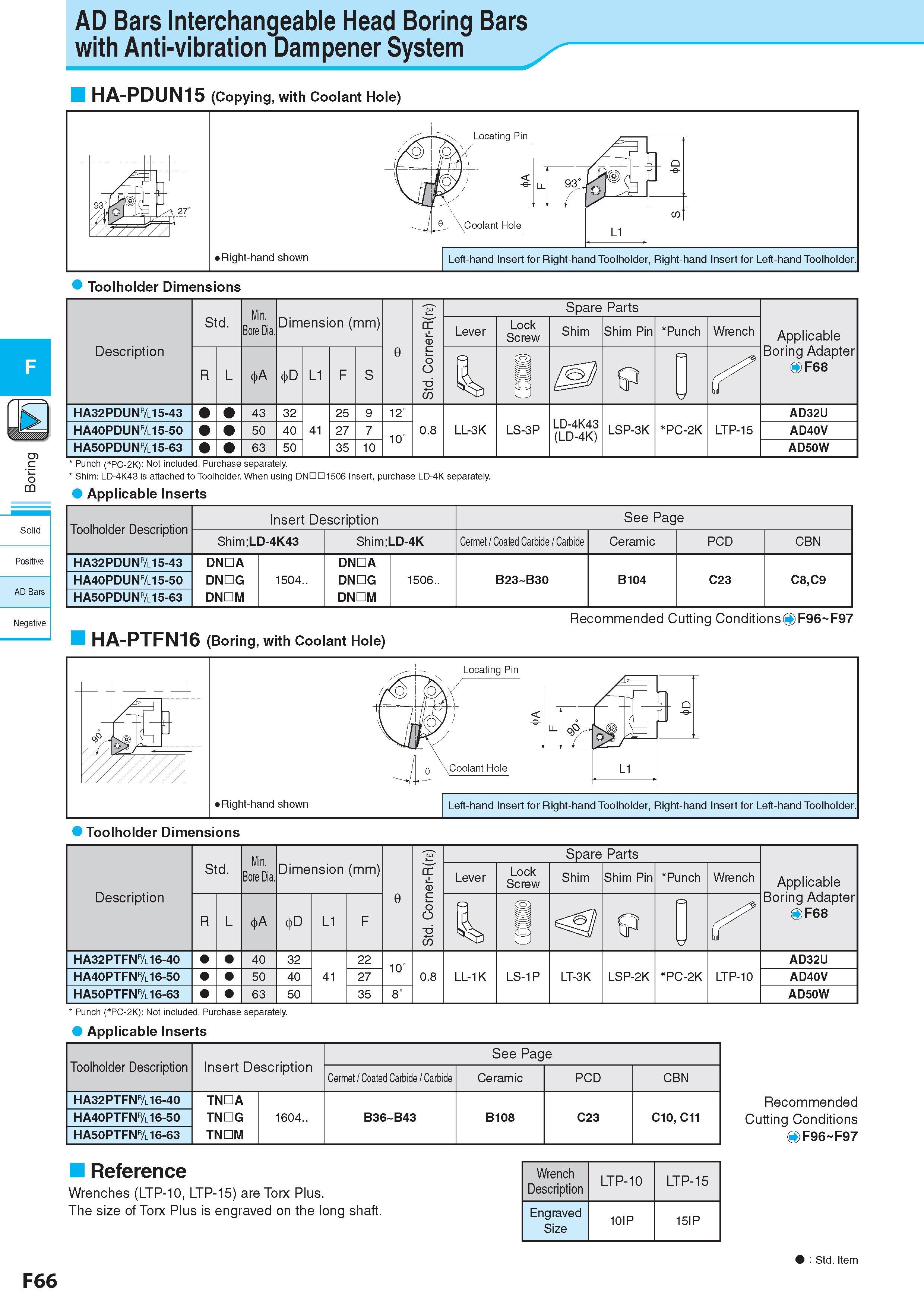

c <5 CQ Solid Positive AD Bars Negative AD Bars Interchangeable Head Boring Bars with Anti-vibration Dampener System HA-PDUN15 (Copying , with Coolant Hole) Toolholder Dimensions Punch ( PC-2K): Not included. Purchase separately. Shim: LD-4K43 is attached to Toolholder. When using DNDD1506 Insert, purchase LD-4K separately. Applicable Inserts Toolholder Description Обозначение Insert Description Обозначение See Page Shim:LD-4K43 Shim:LD-4K Cermet / Coated Carbide / Carbide Ceramic PCD CBN HA32PDUN&15-43 HA40PDUN&15-50 HA50PDUN&15-63 DNDA DNDG DNDM 1504.. DNDA DNDG DNDM 1506.. B23 B30 B104 C23 C8,C9 HA-PTFN16 (Boring, with Coolant Hole) Recommended Cutting Conditions Рекомендованные режимы резания на станкахO F96 F97 Toolholder Dimensions Punch ( PC-2K): Not included. Purchase separately. Applicable Inserts Recommended Cutting Conditions Рекомендованные режимы резания на станках OF96-F97 Reference Wrenches (LTP-10, LTP-15) are Torx Plus. The size of Torx Plus is engraved on the long shaft. : Std. Item Стандартная позиция Wrench Description Обозначение LTP-10 LTP-15 Engraved Size 10IP 15IP Toolholder Description Обозначение Insert Description Обозначение See Page Cermet / Coated Carbide / Carbide Ceramic PCD CBN HA32PTFN& 16-40 HA40PTFN&16-50 HA50PTFN&16-63 TNDA TNDG TNDM 1604.. B36 B43 B108 C23 C10, C11 F66
