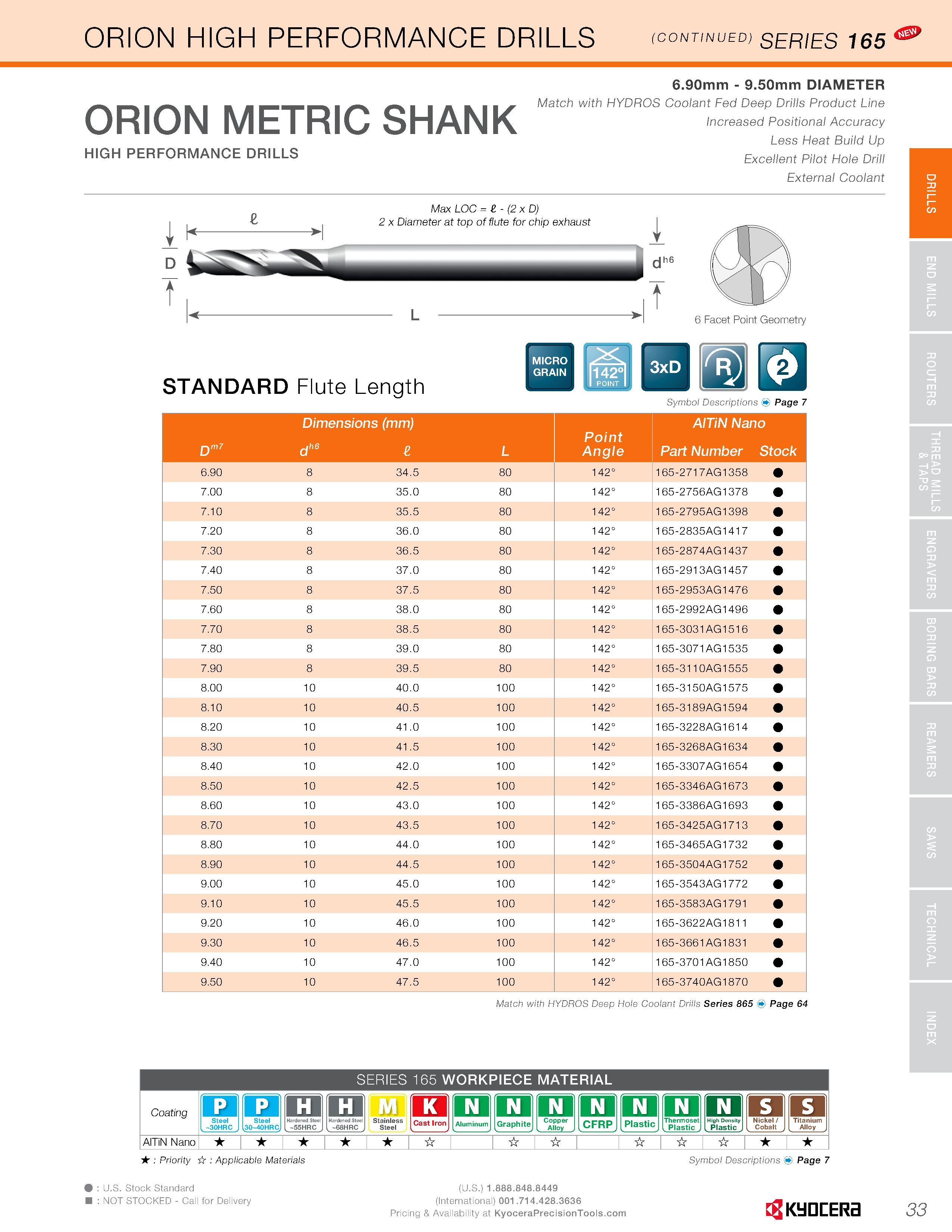

ORION HIGH PERFORMANCE DRILLS (CONTINUED) SERIES 165 ORION METRIC SHANK HIGH PERFORMANCE DRILLS 6.90mm - 9.50mm DIAMETER Match with HYDROS Coolant Fed Deep Drills Product Line Increased Positional Accuracy Less Heat Build Up Excellent Pilot Hole Drill External Coolant i D t Max LOC = £-(2xD) 2 x Diameter at top of flute for chip exhaust STANDARD Flute Length Symbol Descriptions Page 7 Dimensions (mm) AITiN Nano Dm Point dhe L Angle Part Number Stock 6.90 8 34.5 80 142° 1 65-271 7AG1358 7.00 8 35.0 80 142° 1 65-2756AG1378 7.10 8 35.5 80 142° 1 65-2795AG1398 7.20 8 36.0 80 142° 1 65-2835AG141 7 7.30 8 36.5 80 142° 1 65-2874AG1437 7.40 8 37.0 80 142° 1 65-291 3AG1457 7.50 8 37.5 80 142° 1 65-2953AG1476 7.60 8 38.0 80 142° 1 65-2992AG1496 7.70 8 38.5 80 142° 1 65-3031AG151 6 7.80 8 39.0 80 142° 1 65-3071AG1535 7.90 8 39.5 80 142° 1 65-3110AG1555 8.00 10 40.0 100 142° 1 65-3150AG1575 8.10 10 40.5 100 142° 1 65-3189AG1594 8.20 10 41.0 100 142° 1 65-3228AG161 4 8.30 10 41.5 100 142° 1 65-3268AG1634 8.40 10 42.0 100 142° 1 65-3307AG1654 8.50 10 42.5 100 142° 1 65-3346AG1673 8.60 10 43.0 100 142° 1 65-3386AG1693 8.70 10 43.5 100 142° 1 65-3425AG171 3 8.80 10 44.0 100 142° 1 65-3465AG1732 8.90 10 44.5 100 142° 1 65-3504AG1752 9.00 10 45.0 100 142° 1 65-3543AG1772 9.10 10 45.5 100 142° 1 65-3583AG1791 9.20 10 46.0 100 142° 1 65-3622AG1811 9.30 10 46.5 100 142° 1 65-3661AG1831 9.40 10 47.0 100 142° 1 65-3701AG1850 9.50 10 47.5 100 142° 1 65-3740AG1870 Match with HYDROS Deep Hole Coolant Drills Series 865 Page 64 SERIES 165 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Hardened Steel -55HRC EH Hardened Steel -68HRC 'Ml Stainless Steel K Aluminum o Graphite o Copper Alloy Q CFRP o Plastic o Thermoset . Plastic . o Plastic s s j Cast Ironj Nickel/ t Cobalt J Titanium Alloy J AITiN Nano Priority Or Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Kyocera 33 DRILLS
