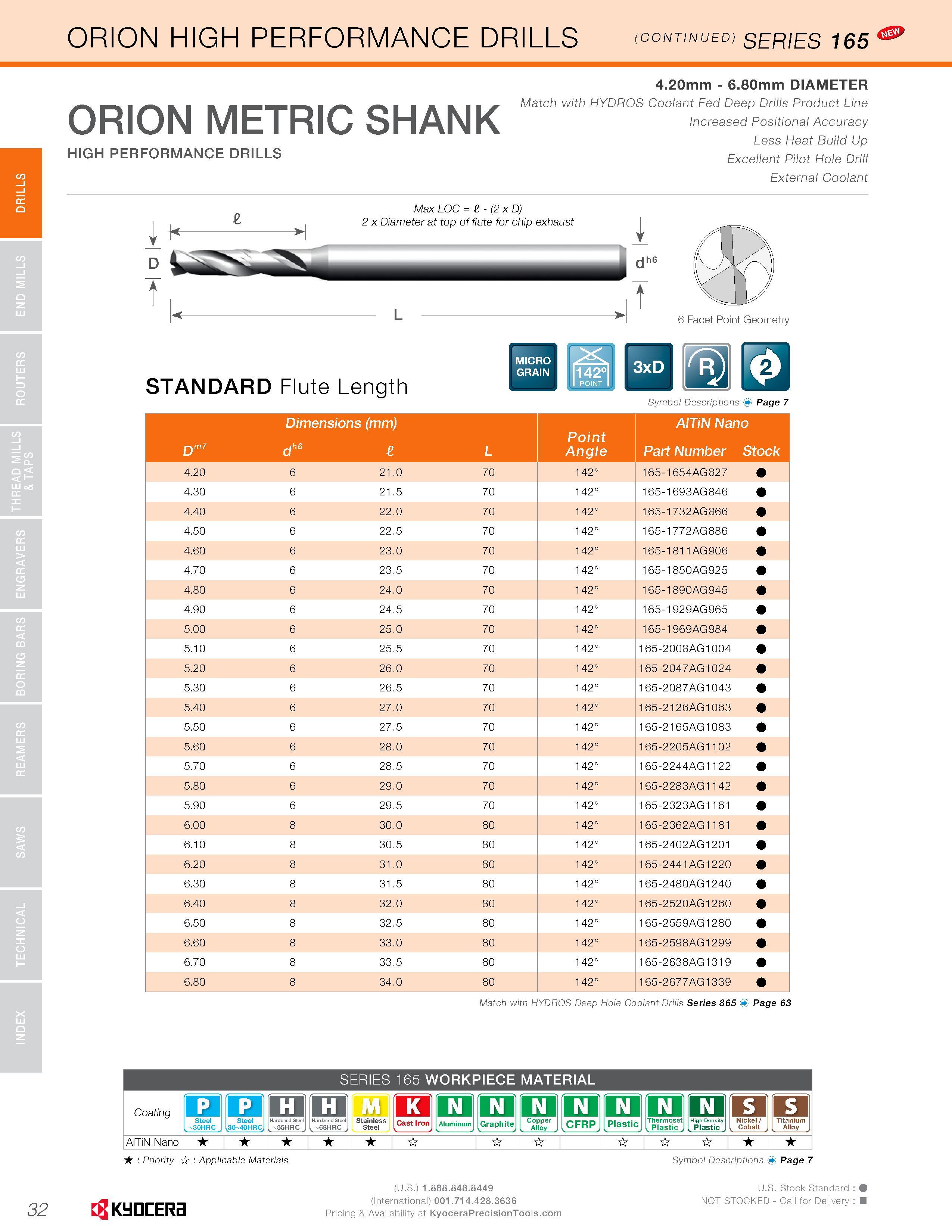

DRILLS ORION HIGH PERFORMANCE DRILLS (CONTINUED) SERIES 165 ORION METRIC SHANK HIGH PERFORMANCE DRILLS 4.20mm - 6.80mm DIAMETER Match with HYDROS Coolant Fed Deep Drills Product Line Increased Positional Accuracy Less Heat Build Up Excellent Pilot Hole Drill External Coolant Max LOC = e - (2 x D) 2 x Diameter at top of flute for chip exhaust STANDARD Flute Length Symbol Descriptions Page 7 Dimensions (mm) AITiN Nano Dm Point dhe L Angle Part Number Stock 4.20 6 21.0 70 142° 165-1 654AG827 4.30 6 21.5 70 142° 165-1 693AG846 4.40 6 22.0 70 142° 165-1 732AG866 4.50 6 22.5 70 142° 165-1 772AG886 4.60 6 23.0 70 142° 165-1811AG906 4.70 6 23.5 70 142° 165-1 850AG925 4.80 6 24.0 70 142° 165-1 890AG945 4.90 6 24.5 70 142° 165-1 929AG965 5.00 6 25.0 70 142° 165-1 969AG984 5.10 6 25.5 70 142° 1 65-2008AG1004 5.20 6 26.0 70 142° 1 65-2047AG1024 5.30 6 26.5 70 142° 1 65-2087AG1043 5.40 6 27.0 70 142° 1 65-2126AG1063 5.50 6 27.5 70 142° 1 65-2165AG1083 5.60 6 28.0 70 142° 1 65-2205AG11 02 5.70 6 28.5 70 142° 1 65-2244AG11 22 5.80 6 29.0 70 142° 1 65-2283AG11 42 5.90 6 29.5 70 142° 1 65-2323AG11 61 6.00 8 30.0 80 142° 1 65-2362AG11 81 6.10 8 30.5 80 142° 1 65-2402AG1201 6.20 8 31.0 80 142° 1 65-2441AG1220 6.30 8 31.5 80 142° 1 65-2480AG1240 6.40 8 32.0 80 142° 1 65-2520AG1260 6.50 8 32.5 80 142° 1 65-2559AG1280 6.60 8 33.0 80 142° 1 65-2598AG1299 6.70 8 33.5 80 142° 1 65-2638AG131 9 6.80 8 34.0 80 142° 1 65-2677AG1339 Match with HYDROS Deep Hole Coolant Drills Series 865 Page 63 SERIES 165 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Hardened Steel -55HRC EH Hardened Steel -68HRC 'Ml Stainless Steel K Aluminum Q Graphite Q Copper Alloy o CFRP o Plastic o Thermoset Plastic . o Plastic s s j Cast IronJ Nickel/ I Cobalt J Titanium Alloy J AITiN Nano Priority Or Applicable Materials Symbol Descriptions Page 7 32 CgKyDCERa U.S. Stock Standard NOT STOCKED - Call for Delivery
