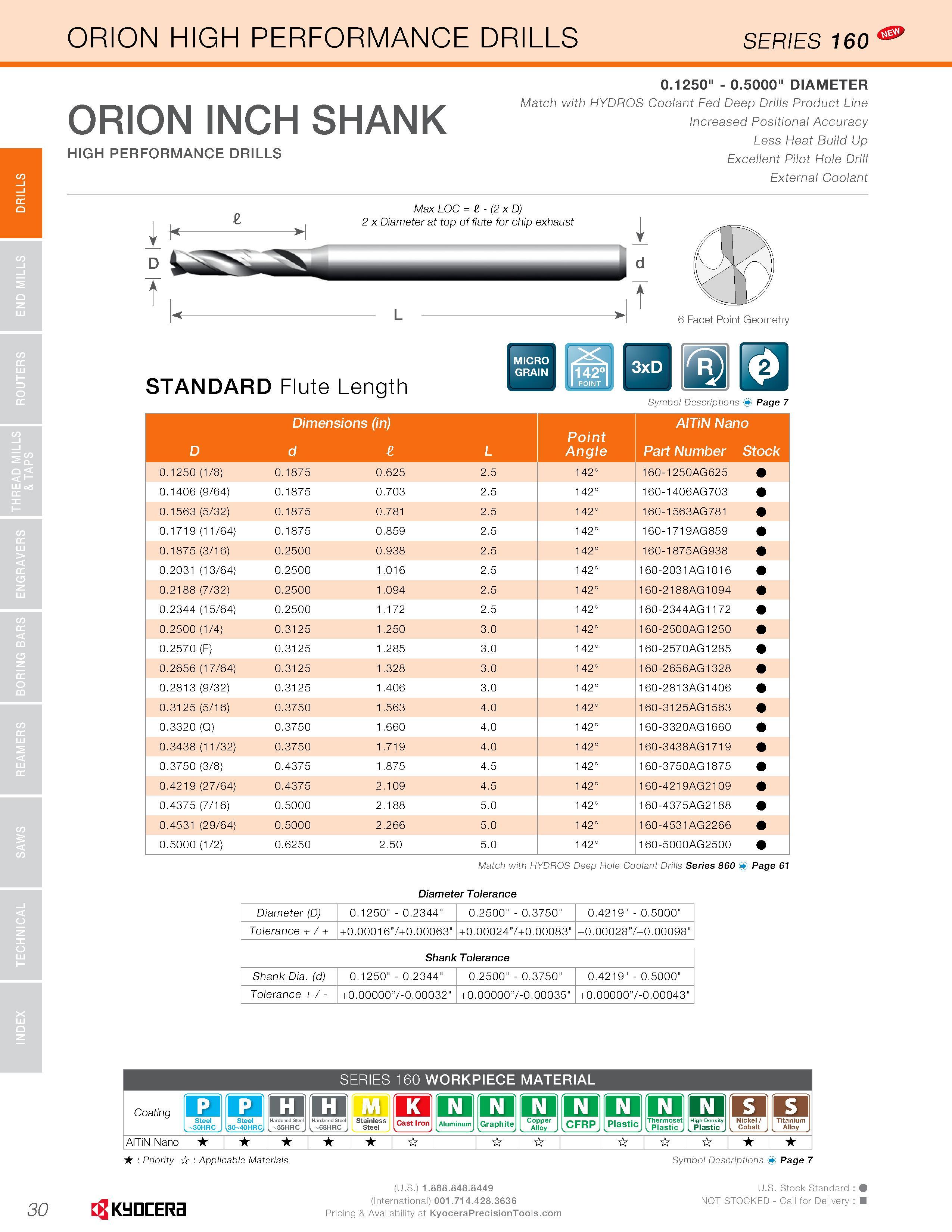

DRILLS ORION HIGH PERFORMANCE DRILLS ORION INCH SHANK HIGH PERFORMANCE DRILLS 0.1250" - 0.5000" DIAMETER Match with HYDROS Coolant Fed Deep Drills Product Line Increased Positional Accuracy Less Heat Build Up Excellent Pilot Hole Drill External Coolant STANDARD Flute Length Symbol Descriptions Page 7 Dimensions (in) AITiN Nano Point D d L Angle Part Number Stock 0.1250 (1/8) 0.1875 0.625 2.5 142° 160-1 250AG625 0.1406 (9/64) 0.1875 0.703 2.5 142° 160-1 406AG703 0.1563 (5/32) 0.1875 0.781 2.5 142° 160-1 563AG781 0.1719 (11/64) 0.1875 0.859 2.5 142° 160-1 71 9AG859 0.1875 (3/16) 0.2500 0.938 2.5 142° 160-1 875AG938 0.2031 (13/64) 0.2500 1.016 2.5 142° 160-2031AG1016 0.2188 (7/32) 0.2500 1.094 2.5 142° 1 60-2188AG1094 0.2344 (15/64) 0.2500 1.172 2.5 142° 1 60-2344AG11 72 0.2500 (1/4) 0.3125 1.250 3.0 142° 1 60-2500AG1250 0.2570 (F) 0.3125 1.285 3.0 142° 1 60-2570AG1285 0.2656 (17/64) 0.3125 1.328 3.0 142° 1 60-2656AG1328 0.2813 (9/32) 0.3125 1.406 3.0 142° 1 60-281 3AG1406 0.3125 (5/16) 0.3750 1.563 4.0 142° 1 60-3125AG1563 0.3320 (Q) 0.3750 1.660 4.0 142° 1 60-3320AG1660 0.3438 (11/32) 0.3750 1.719 4.0 142° 1 60-3438AG171 9 0.3750 (3/8) 0.4375 1.875 4.5 142° 1 60-3750AG1875 0.4219 (27/64) 0.4375 2.109 4.5 142° 1 60-421 9AG21 09 0.4375 (7/16) 0.5000 2.188 5.0 142° 1 60-4375AG21 88 0.4531 (29/64) 0.5000 2.266 5.0 142° 1 60-4531AG2266 0.5000 (1/2) 0.6250 2.50 5.0 142° 160-5000AG2500 Match with HYDROS Deep Hole Coolant Drills Series 860 Page 61 Diameter Tolerance Diameter (D) 0.1250" - 0.2344" 0.2500" - 0.3750" 0.4219" - 0.5000" Tolerance + / + +0.0001 6”/+0.00063" +0.000247+0.00083" +0.000287+0.00098" Shank Tolerance Shank Dia. (d) 0.1250" - 0.2344" 0.2500" - 0.3750" 0.4219" - 0.5000" Tolerance + / - +0.000007-0.00032" +0.000007-0.00035" +0.000007-0.00043" SERIES 160 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Hardened Steel -55HRC EH Hardened Steel -68HRC 'Ml Stainless Steel K Aluminuin Q Graphite o Copper Alloy o CFRP o Plastic Q Thermoset . Plastic . o Plastic s s j Cast Ironj Nickel/ I Cobalt J Titanium Alloy J AITiN Nano Priority Or Applicable Materials Symbol Descriptions Page 7 30 Kyocera U.S. Stock Standard NOT STOCKED - Call for Delivery
