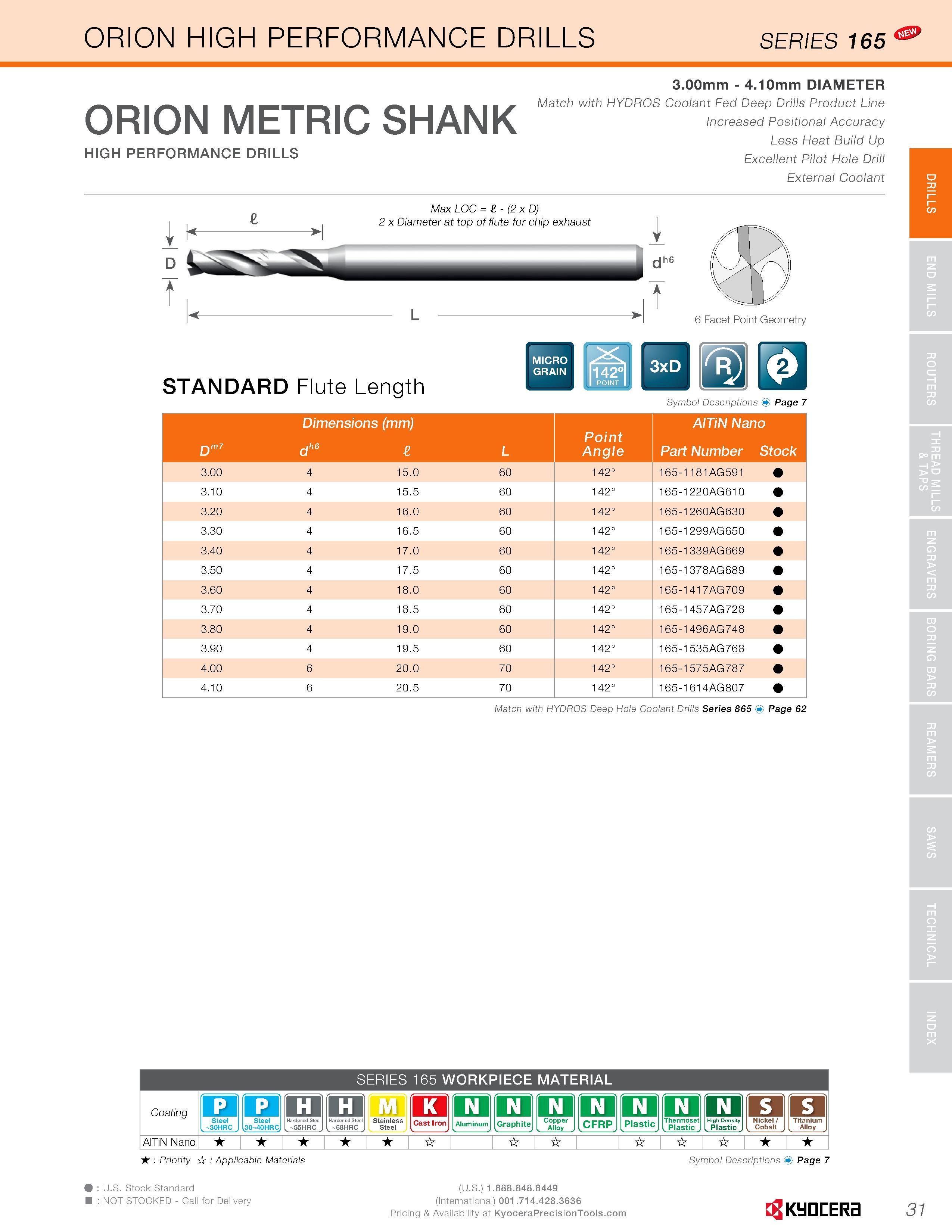

ORION HIGH PERFORMANCE DRILLS ORION METRIC SHANK HIGH PERFORMANCE DRILLS 3.00mm - 4.10mm DIAMETER Match with HYDROS Coolant Fed Deep Drills Product Line Increased Positional Accuracy Less Heat Build Up Excellent Pilot Hole Drill External Coolant Max LOC = e - (2 x D) 2 x Diameter at top of flute for chip exhaust STANDARD Flute Length Symbol Descriptions Page 7 Dimensions (mm) AITiN Nano Dm Point dhe L Angle Part Number Stock 3.00 4 15.0 60 142° 165-1181AG591 3.10 4 15.5 60 142° 165-1220AG610 3.20 4 16.0 60 142° 165-1 260AG630 3.30 4 16.5 60 142° 165-1 299AG650 3.40 4 17.0 60 142° 165-1 339AG669 3.50 4 17.5 60 142° 165-1 378AG689 3.60 4 18.0 60 142° 165-1 41 7AG709 3.70 4 18.5 60 142° 165-1 457AG728 3.80 4 19.0 60 142° 165-1 496AG748 3.90 4 19.5 60 142° 165-1 535AG768 4.00 6 20.0 70 142° 165-1 575AG787 4.10 6 20.5 70 142° 165-1 61 4AG807 Match with HYDROS Deep Hole Coolant Drills Series 865 Page 62 SERIES 165 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Hardened Steel -55HRC Hardened Steel -68HRC 'Ml Stainless Steel K O Aluminum O Graphite O Copper Alloy O CFRP O Plastic O Thermoset Plastic . O Plastic s s j Cast Ironj Nickel/ I Cobalt J Titanium Alloy J AITiN Nano Priority Or Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Kyocera 31 DRILLS
