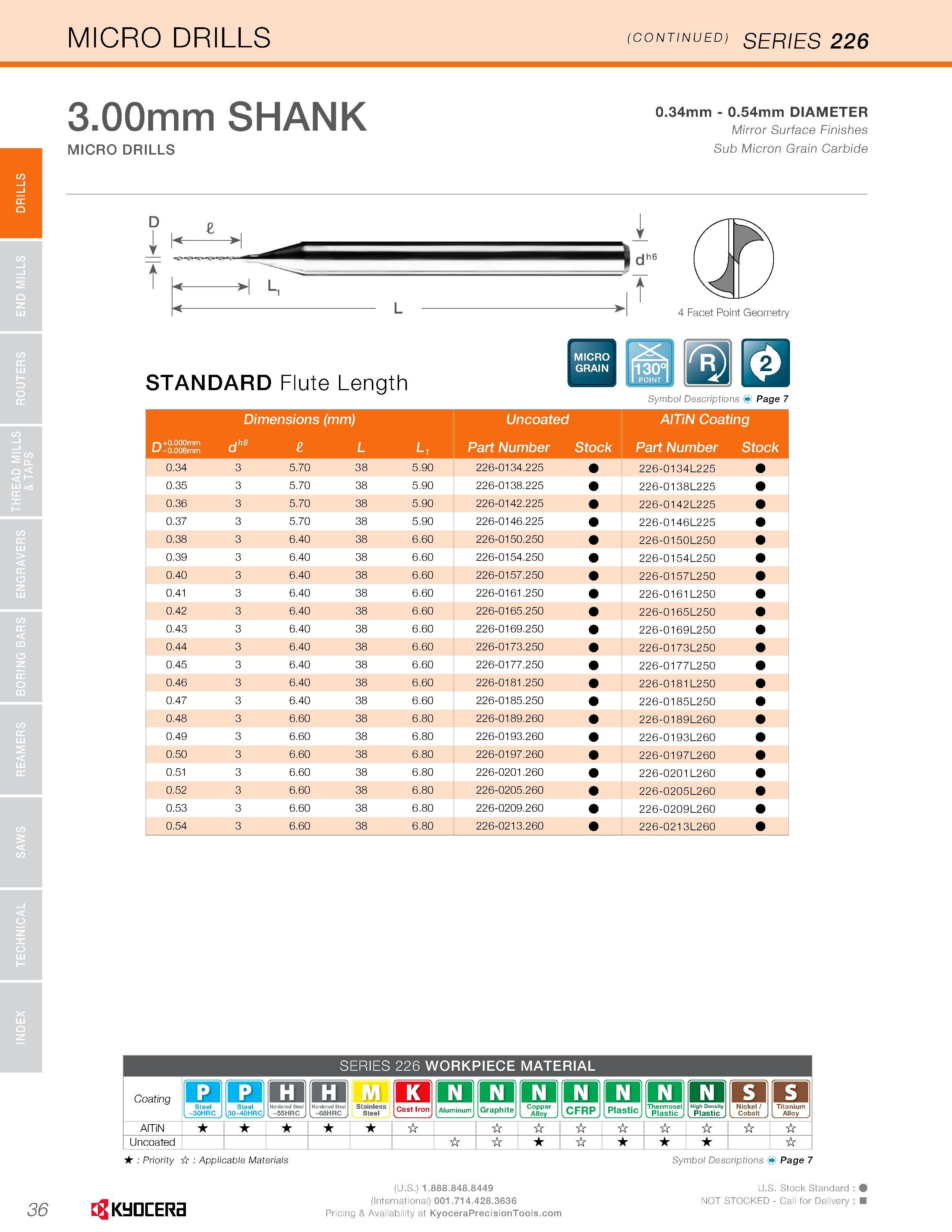

DRILLS MICRO DRILLS (CONTINUED) SERIES 226 3.00mm SHANK MICRO DRILLS 0.34mm - 0.54mm DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide Dimensions (mm) Uncoated AITiN Coating r-\ +Q.0Q0mm 0 n j LJ-0.008mm U Z L. Li Part Number Stock Part Number Stock 0.34 3 5.70 38 5.90 226-0134.225 226-0134L225 0.35 3 5.70 38 5.90 226-0138.225 226-0138L225 0.36 3 5.70 38 5.90 226-0142.225 226-0142L225 0.37 3 5.70 38 5.90 226-0146.225 226-0146L225 0.38 3 6.40 38 6.60 226-0150.250 226-0150L250 0.39 3 6.40 38 6.60 226-0154.250 226-0154L250 0.40 3 6.40 38 6.60 226-0157.250 226-0157L250 0.41 3 6.40 38 6.60 226-0161.250 226-0161L250 0.42 3 6.40 38 6.60 226-0165.250 226-0165L250 0.43 3 6.40 38 6.60 226-0169.250 226-0169L250 0.44 3 6.40 38 6.60 226-0173.250 226-0173L250 0.45 3 6.40 38 6.60 226-0177.250 226-0177L250 0.46 3 6.40 38 6.60 226-0181.250 226-0181L250 0.47 3 6.40 38 6.60 226-0185.250 226-0185L250 0.48 3 6.60 38 6.80 226-0189.260 226-0189L260 0.49 3 6.60 38 6.80 226-0193.260 226-0193L260 0.50 3 6.60 38 6.80 226-0197.260 226-0197L260 0.51 3 6.60 38 6.80 226-0201.260 226-0201L260 0.52 3 6.60 38 6.80 226-0205.260 226-0205L260 0.53 3 6.60 38 6.80 226-0209.260 226-0209L260 0.54 3 6.60 38 6.80 226-0213.260 226-0213L260 SERIES 226 WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC o Hardened Steel -55HRC EH Hardened Steel -68HRC Al Stainless Steel o Aluminuin o Graphite o Copper Alloy Q CFRP o Plastic Q Thermoset L Plastic o Plastic Cast Iron Nickel / Cobalt Titanium Alloy AITiN Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 36 CgKyDCERa U.S. Stock Standard NOT STOCKED - Call for Delivery
