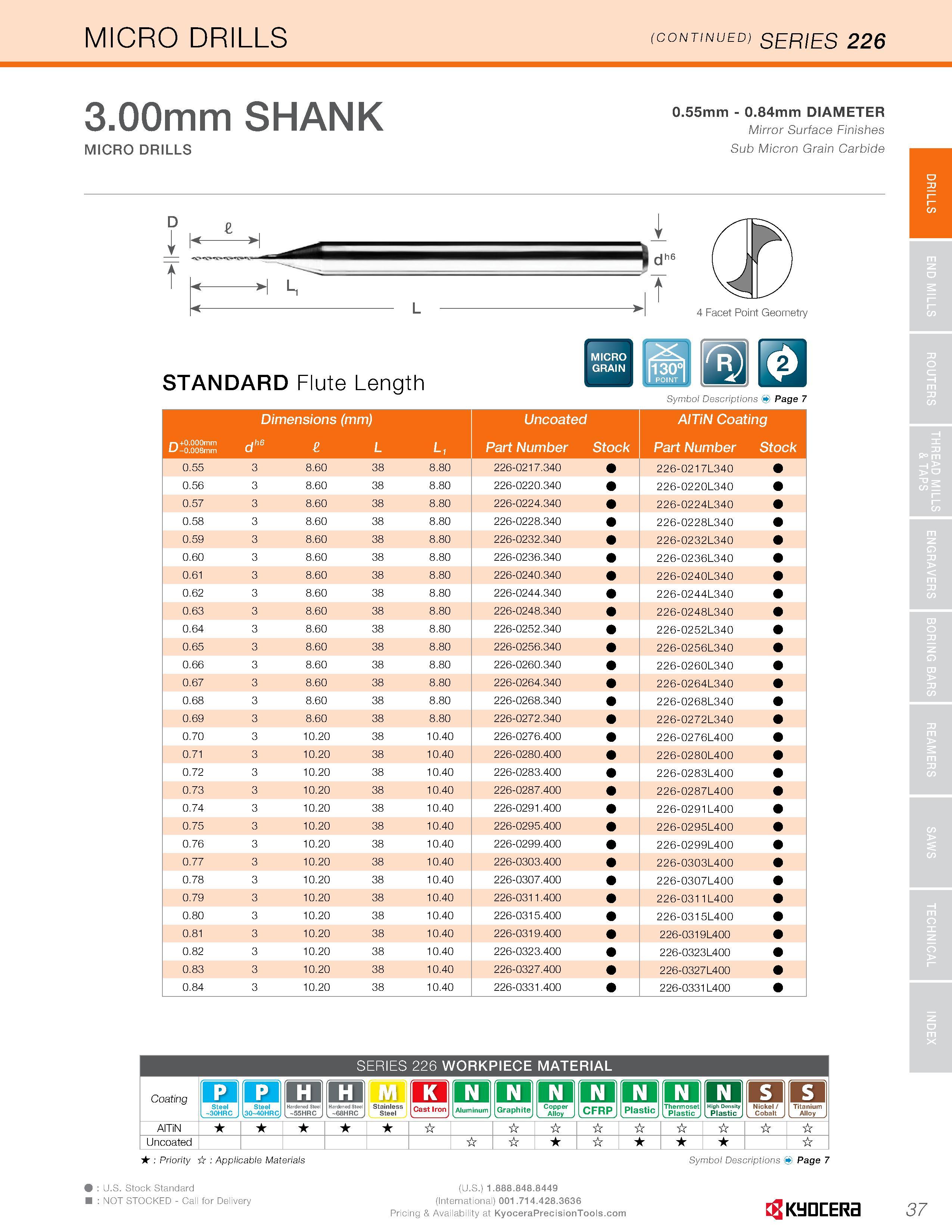

39 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.37

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 37 0039 ENG Lab2u

MICRO DRILLS (CONTINUED) SERIES 226 3.00mm SHANK MICRO DRILLS 0.55mm - 0.84mm DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide Dimensions (mm) Uncoated AITiN Coating r-k +0.000mm h 0 n i Lf -0.008mm U Z L. 1-1 Part Number Stock Part Number Stock 0.55 3 8.60 38 8.80 226-0217.340 226-0217L340 0.56 3 8.60 38 8.80 226-0220.340 226-0220L340 0.57 3 8.60 38 8.80 226-0224.340 226-0224L340 0.58 3 8.60 38 8.80 226-0228.340 226-0228L340 0.59 3 8.60 38 8.80 226-0232.340 226-0232L340 0.60 3 8.60 38 8.80 226-0236.340 226-0236L340 0.61 3 8.60 38 8.80 226-0240.340 226-0240L340 0.62 3 8.60 38 8.80 226-0244.340 226-0244L340 0.63 3 8.60 38 8.80 226-0248.340 226-0248L340 0.64 3 8.60 38 8.80 226-0252.340 226-0252L340 0.65 3 8.60 38 8.80 226-0256.340 226-0256L340 0.66 3 8.60 38 8.80 226-0260.340 226-0260L340 0.67 3 8.60 38 8.80 226-0264.340 226-0264L340 0.68 3 8.60 38 8.80 226-0268.340 226-0268L340 0.69 3 8.60 38 8.80 226-0272.340 226-0272L340 0.70 3 10.20 38 10.40 226-0276.400 226-0276L400 0.71 3 10.20 38 10.40 226-0280.400 226-0280L400 0.72 3 10.20 38 10.40 226-0283.400 226-0283L400 0.73 3 10.20 38 10.40 226-0287.400 226-0287L400 0.74 3 10.20 38 10.40 226-0291.400 226-0291L400 0.75 3 10.20 38 10.40 226-0295.400 226-0295L400 0.76 3 10.20 38 10.40 226-0299.400 226-0299L400 0.77 3 10.20 38 10.40 226-0303.400 226-0303L400 0.78 3 10.20 38 10.40 226-0307.400 226-0307L400 0.79 3 10.20 38 10.40 226-0311.400 226-0311L400 0.80 3 10.20 38 10.40 226-0315.400 226-0315L400 0.81 3 10.20 38 10.40 226-0319.400 226-0319L400 0.82 3 10.20 38 10.40 226-0323.400 226-0323L400 0.83 3 10.20 38 10.40 226-0327.400 226-0327L400 0.84 3 10.20 38 10.40 226-0331.400 226-0331L400 SERIES 226 WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC o Hardened Steel -55HRC EH Hardened Steel -68HRC Al Stainless Steel o Aluminum Q Graphite o Copper Alloy Q CFRP o Plastic o Thermoset L Plastic o Plastic Cast Iron Nickel / Cobalt Titanium Alloy AITiN Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Kyocera 37 DRILLS
