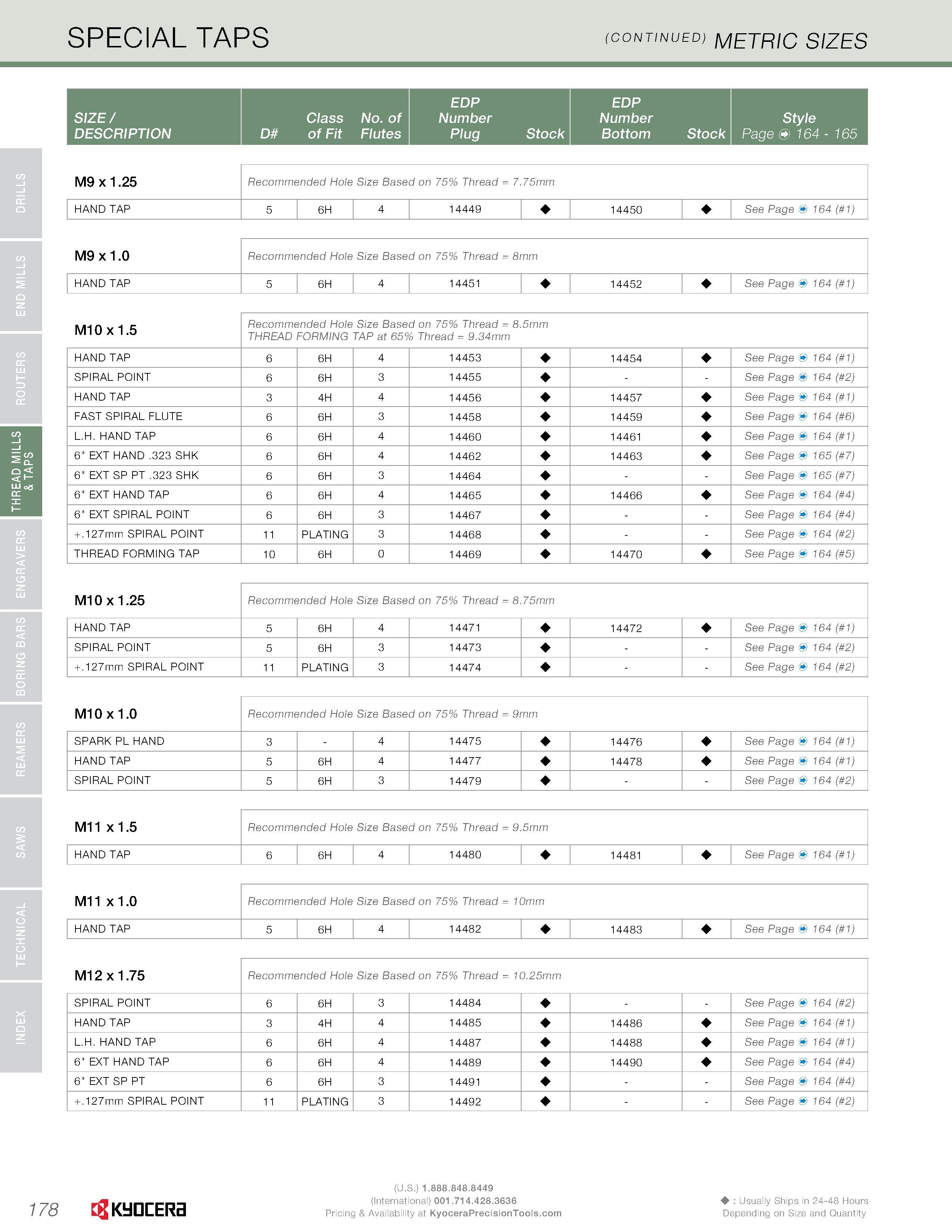

SPECIAL TAPS (C°NTINUED) METRIC SIZES EDP EDP SIZE / Class No. of Number Number Style DESCRIPTION D of Fit Flutes Plug Stock Bottom Stock Page <& 164 - 165 M9 x 1.25 Recommended Hole Size Based on 75% Thread = 7.75mm HAND TAP 5 6H 4 14449 14450 See Page & 164 ( 1) M9 x 1.0 Recommended Hole Size Based on 75% Thread = 8mm HAND TAP 5 6H 4 14451 14452 See Page & 164 ( 1) M10 x 1.5 Recommended Hole Size Based on 75% Thread = 8.5mm THREAD FORMING TAP at 65% Thread = 9.34mm HAND TAP 6 6H 4 14453 14454 See Page & 164 ( 1) SPIRAL POINT 6 6H 3 14455 - - See Page & 164 ( 2) HAND TAP 3 4H 4 14456 14457 See Page & 164 ( 1) FAST SPIRAL FLUTE 6 6H 3 14458 14459 See Page & 164 ( 6) L.H. HAND TAP 6 6H 4 14460 14461 See Page & 164 ( 1) 6" EXT HAND .323 SHK 6 6H 4 14462 14463 See Page & 165 ( 7) 6" EXT SP PT .323 SHK 6 6H 3 14464 - - See Page & 165 ( 7) 6" EXT HAND TAP 6 6H 4 14465 14466 See Page & 164 ( 4) 6" EXT SPIRAL POINT 6 6H 3 14467 - - See Page & 164 ( 4) + .127mm SPIRAL POINT 11 PLATING 3 14468 - - See Page & 164 ( 2) THREAD FORMING TAP 10 6H 0 14469 14470 See Page & 164 ( 5) M10 x 1.25 Recommended Hole Size Based on 75% Thread = 8.75mm HAND TAP 5 6H 4 14471 14472 See Page & 164 ( 1) SPIRAL POINT 5 6H 3 14473 - - See Page & 164 ( 2) + .127mm SPIRAL POINT 11 PLATING 3 14474 - - See Page & 164 ( 2) M10 x 1.0 Recommended Hole Size Based on 75% Thread = 9mm SPARK PL HAND 3 4 14475 14476 See Page & 164 ( 1) HAND TAP 5 6H 4 14477 14478 See Page & 164 ( 1) SPIRAL POINT 5 6H 3 14479 - - See Page & 164 ( 2) M11 x 1.5 Recommended Hole Size Based on 75% Thread = 9.5mm HAND TAP 6 6H 4 14480 14481 See Page & 164 ( 1) M11 x 1.0 Recommended Hole Size Based on 75% Thread = 10mm HAND TAP 5 6H 4 14482 14483 See Page & 164 ( 1) M12 x 1.75 Recommended Hole Size Based on 75% Thread = 10.25mm SPIRAL POINT 6 6H 3 14484 - - See Page & 164 ( 2) HAND TAP 3 4H 4 14485 14486 See Page & 164 ( 1) L.H. HAND TAP 6 6H 4 14487 14488 See Page & 164 ( 1) 6" EXT HAND TAP 6 6H 4 14489 14490 See Page & 164 ( 4) 6" EXT SP PT 6 6H 3 14491 - - See Page & 164 ( 4) + .127mm SPIRAL POINT 11 PLATING 3 14492 - - See Page & 164 ( 2) (U.S.) (International) 001.714.428.3636 Usually Ships in 24-48 Hours 1/8 Pricing & Availability at Depending on Size and Quantity
