182 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.180

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 180 0182 ENG Lab2u

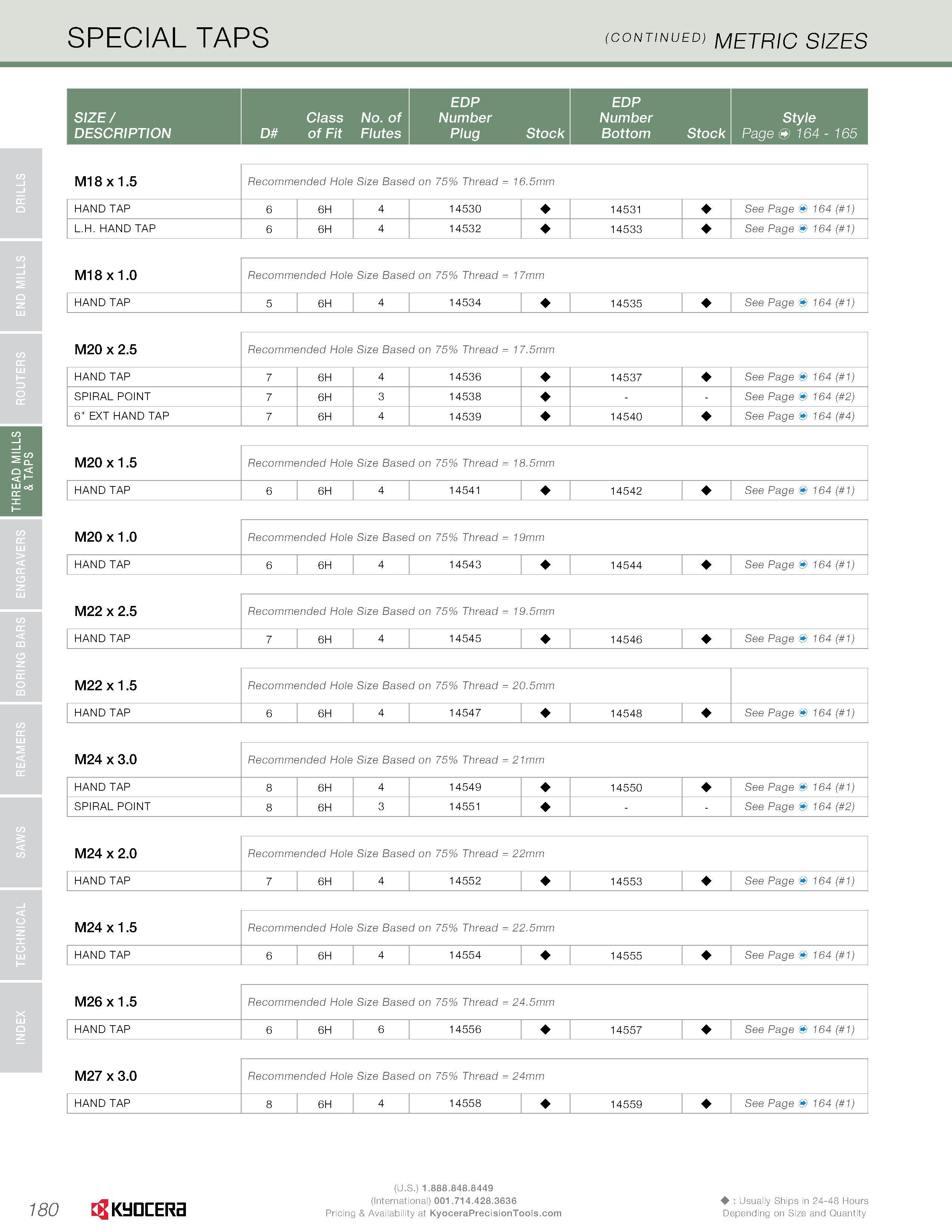

SPECIAL TAPS (CONTINUED) METRIC SIZES EDP EDP SIZE / Class No. of Number Number Style DESCRIPTION D of Fit Flutes Plug Stock Bottom Stock Page <& 164 - 165 M18 x 1.5 Recommended Hole Size Based on 75% Thread = 16.5mm HAND TAP 6 6H 4 14530 14531 See Page & 164 ( 1) L.H. HAND TAP 6 6H 4 14532 14533 See Page & 164 ( 1) M18 x 1.0 Recommended Hole Size Based on 75% Thread = 17mm HAND TAP 5 6H 4 14534 14535 See Page & 164 ( 1) M20 x 2.5 Recommended Hole Size Based on 75% Thread = 17.5mm HAND TAP 7 6H 4 14536 14537 See Page & 164 ( 1) SPIRAL POINT 7 6H 3 14538 - - See Page & 164 ( 2) 6" EXT HAND TAP 7 6H 4 14539 14540 See Page & 164 ( 4) M20 x 1.5 Recommended Hole Size Based on 75% Thread = 18.5mm HAND TAP 6 6H 4 14541 14542 See Page & 164 ( 1) M20 x 1.0 Recommended Hole Size Based on 75% Thread = 19mm HAND TAP 6 6H 4 14543 14544 See Page & 164 ( 1) M22 x 2.5 Recommended Hole Size Based on 75% Thread = 19.5mm HAND TAP 7 6H 4 14545 14546 See Page & 164 ( 1) M22 x 1.5 Recommended Hole Size Based on 75% Thread = 20.5mm HAND TAP 6 6H 4 14547 14548 See Page & 164 ( 1) M24 x 3.0 Recommended Hole Size Based on 75% Thread = 21mm HAND TAP 8 6H 4 14549 14550 See Page & 164 ( 1) SPIRAL POINT 8 6H 3 14551 - - See Page & 164 ( 2) M24 x 2.0 Recommended Hole Size Based on 75% Thread = 22mm HAND TAP 7 6H 4 14552 14553 See Page & 164 ( 1) M24 x 1.5 Recommended Hole Size Based on 75% Thread = 22.5mm HAND TAP 6 6H 4 14554 14555 See Page & 164 ( 1) M26 x 1.5 Recommended Hole Size Based on 75% Thread = 24.5mm HAND TAP 6 6H 6 14556 14557 See Page & 164 ( 1) M27 x 3.0 Recommended Hole Size Based on 75% Thread = 24mm HAND TAP 8 6H 4 14558 14559 See Page & 164 ( 1) (U.S.) (International) 001.714.428.3636 Usually Ships in 24-48 Hours iOU Pricing & Availability at Depending on Size and Quantity
